Hood: Adjustments

41 61 014 Adjusting Engine Compartment Lid







IMPORTANT:
- The battery earth lead must be clamped off on vehicles with AFGS active pedestrian protection.
- Do not damage adjoining body components.
- Minor corrections (realignment work) are permitted if the existing adjustment options are not sufficient.







Carry over schematic diagram to the relevant vehicle type.

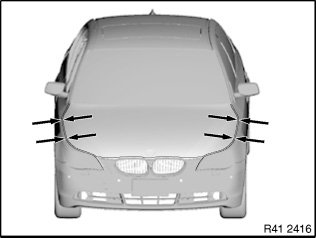

NOTE: Observe gap dimensions.







NOTE:

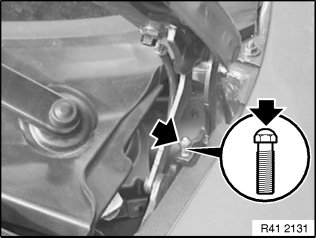

- Stop screw must not be damaged or missing. If necessary, replace engine compartment lid hinge.
- The stop screw is preset and must not be used to adjust the engine compartment lid.







Slacken nuts (1) of hinges on left and right.
Engine compartment lid lid must be able to be moved.
Tightening torque 41 61 1AZ.

NOTE: If adjustment range is not sufficient, slacken screws on body and slide hinge. (Refer to operation: Height adjustment at hinge)







Adjust engine compartment lid sideways and lengthways.
Strikers must snap into place in the locks.







Height adjustment at hinge:
Slacken screws (1) and adjust engine compartment lid.
Tightening torque 41 61 3AZ.







Height adjustment at strikers:
Adjust height by turning nut (1).
Height adjustment of engine compartment lid to side panel by means of stop pad.

NOTE:
- The engine compartment lid is correctly adjusted in the front section by a combination of pulling the strikers and pressing the stop pads.
- Incorrect adjustment results in either wobbling of the engine engine compartment lid or sluggish unlocking.







IMPORTANT: Check function of retaining hook.







After setting:
- Tighten all screws and nuts to specified torque.
- Touch up unpainted surfaces in the appropriate colour.
- If necessary, adjust front side panels.
