12 14 522 Replacing Pulse Generator on Left Inlet Camshaft

12 14 522 Replacing Pulse Generator On Left Inlet Camshaft (N63)

(cylinder bank 5 to 8)







Necessary preliminary tasks:
- Read out fault memory of DME control unit; if necessary, work through test schedules
- Switch off ignition
- Remove left intake filter housing

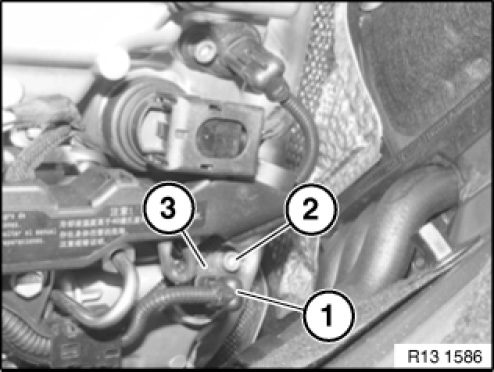

Unlock plug (1) and remove.
Release screw (2).

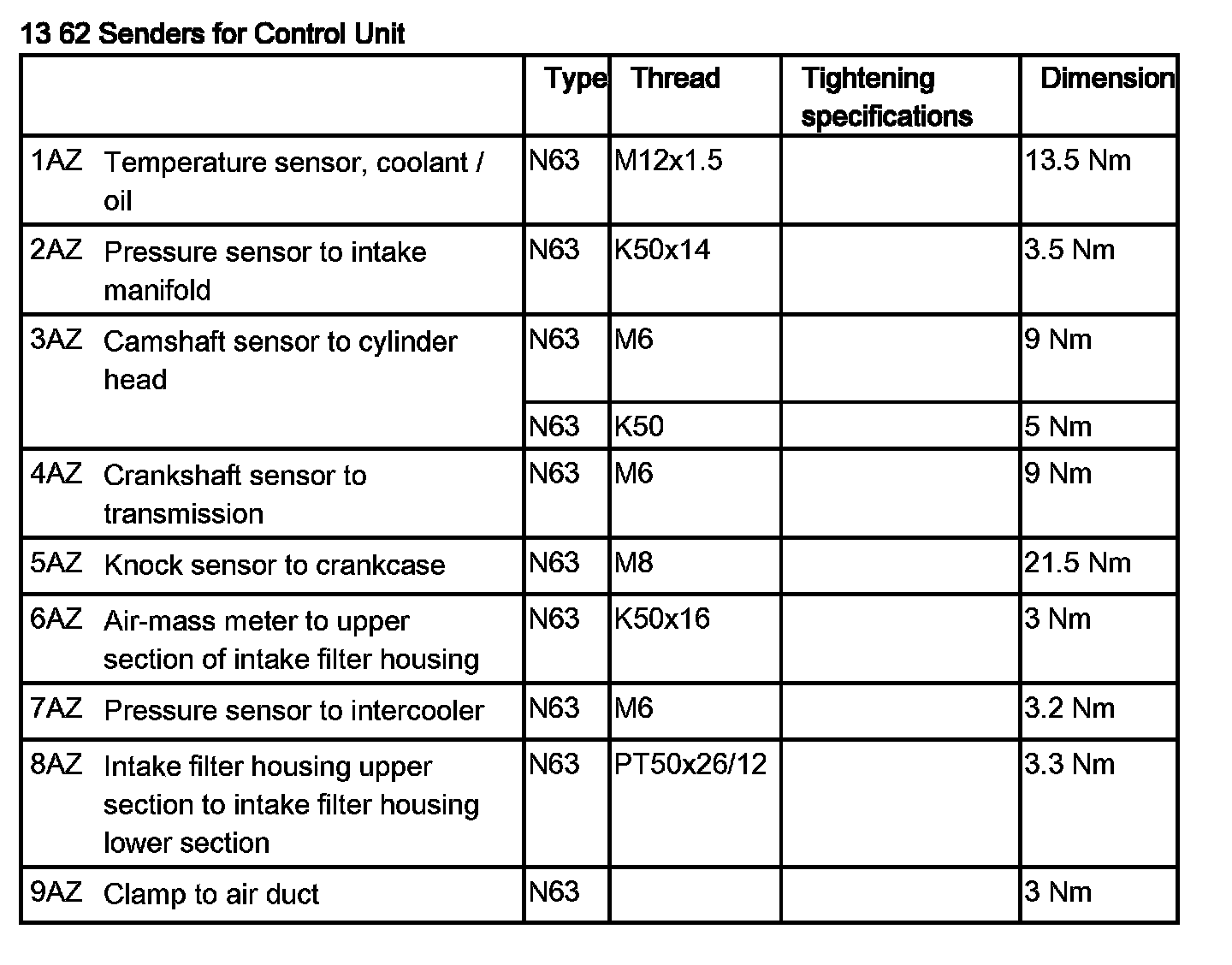

Tightening torque 13 62 3AZ.
Remove pulse generator (3).

Installation:
Replace sealing ring and coat with antiseize agent.







NOTE:
Assemble engine.
Now clear the fault memory.
