Delcotron Type SI Integral Charging System

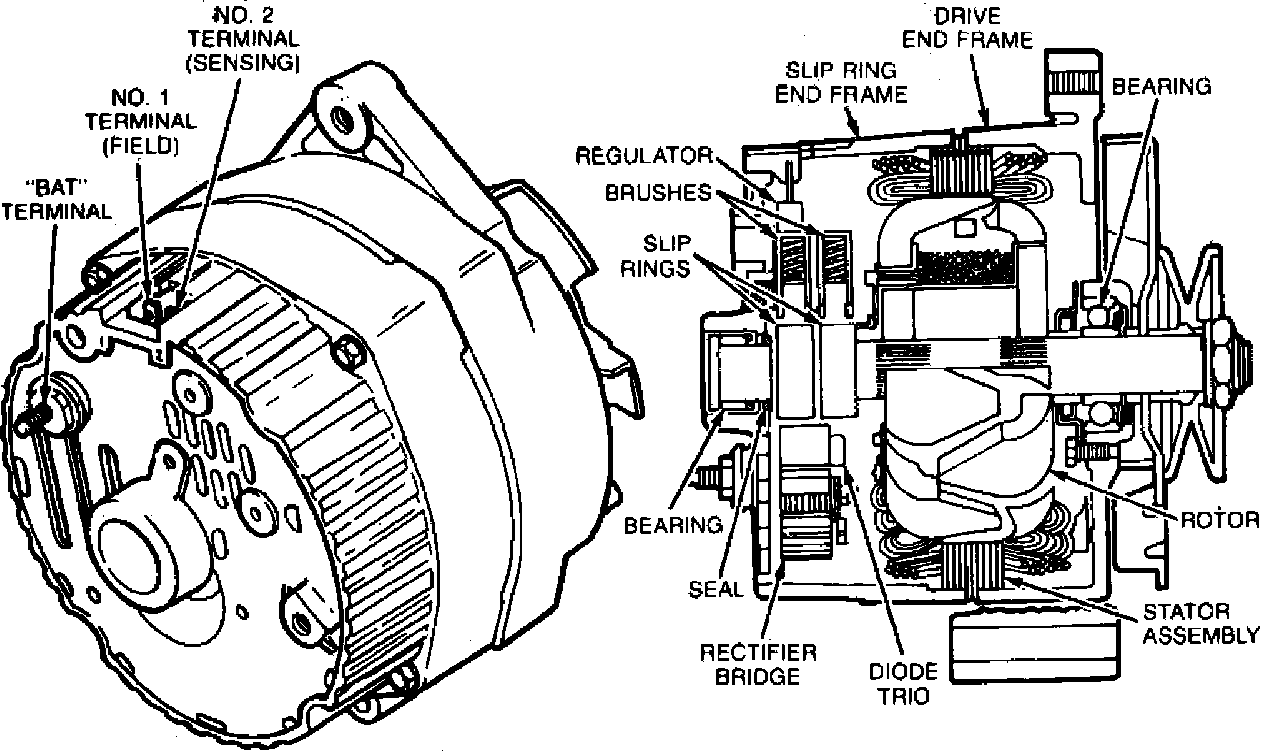

Fig. 1 Typical Delcotron type SI alternator:

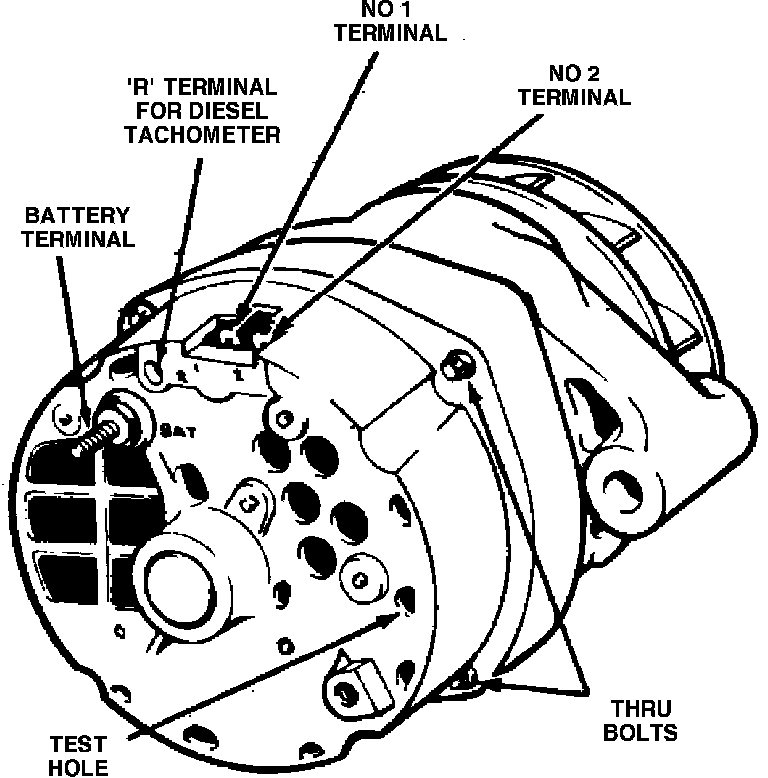

Fig. 2 Delcotron type 12 SI alternator. Typical of models used on diesel engines:

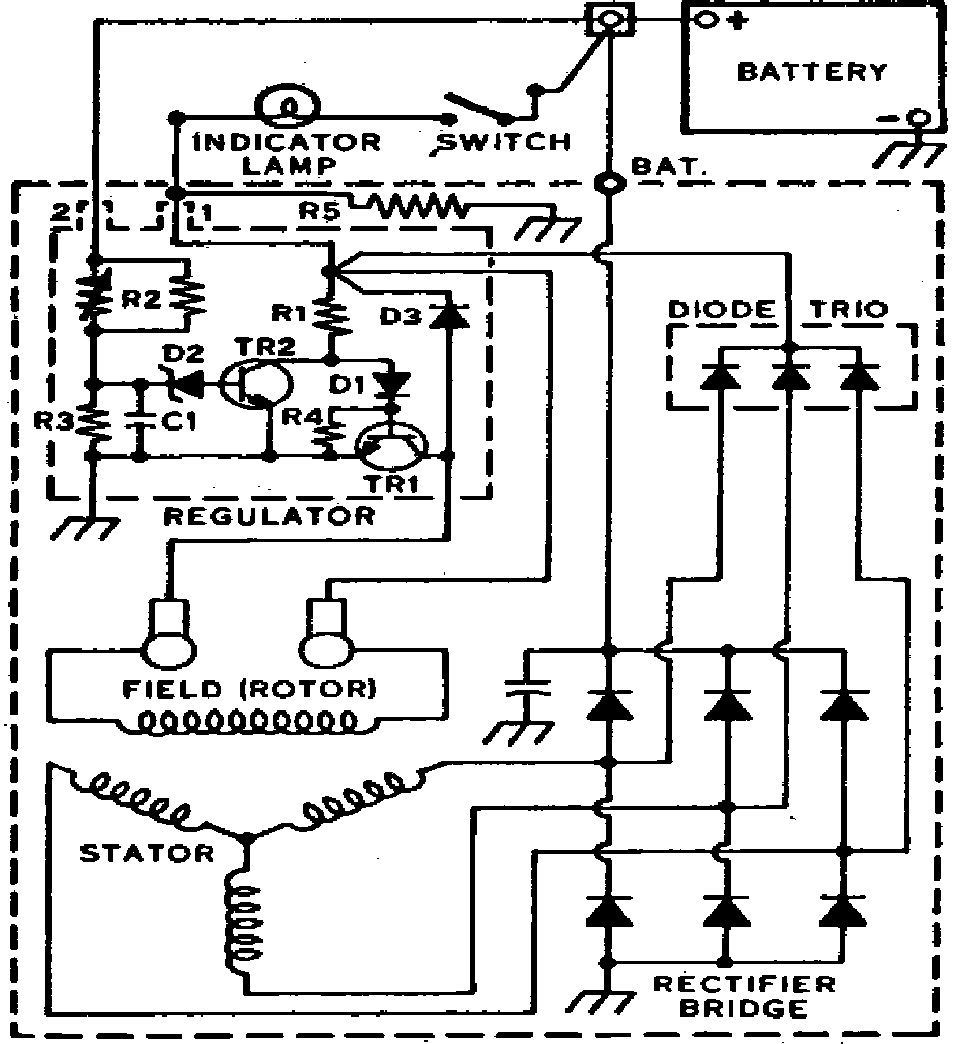

Fig. 3 Typical wiring diagram of charging circuit:

These units, Figs. 1 and 2, feature a solid state regulator mounted inside the alternator slip ring end frame, along with the brush holder assembly. All regulator components are enclosed in a solid mold with no need or provision for adjustment of the regulator. A rectifier bridge, containing six diodes and connected to the stator windings, changes AC. voltage to D.C. voltage which is available at the output terminal. Generator field current is supplied through a diode trio which is also connected to the stator windings. The diodes and rectifiers are protected by a capacitor which is also mounted in the end frame.
General Motors units incorporate a resistor in the warning indicator circuit. Fig. 3.
Some alternators used on diesel engines are equipped with an R terminal for the tachometer, Fig. 2. On these units, if the alternator pulley is to be replaced, a pulley of the same diameter as the one removed must be installed, otherwise tachometer may provide inaccurate readings.
No maintenance or adjustments of any kind are required on this unit.
