Drive Belt

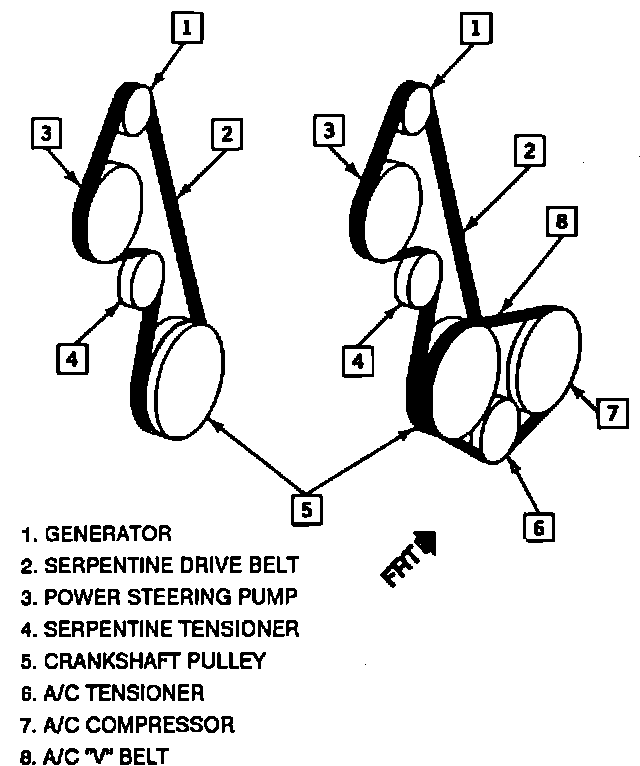

Fig. 19 Serpentine Drive Belt Routing:
1.
Disconnect battery ground cable, then remove coolant recovery tank.
2.
Using 19 mm wrench, pivot tensioner and remove belt from alternator.
3.
Raise and support vehicle, then remove inner fender splash shield.
4.
Remove A/C belt, if equipped.
5.
Remove serpentine
drive belt.
6.
Reverse procedure to install. Refer to
Fig. 19, for
drive belt routing.
