System Specifications

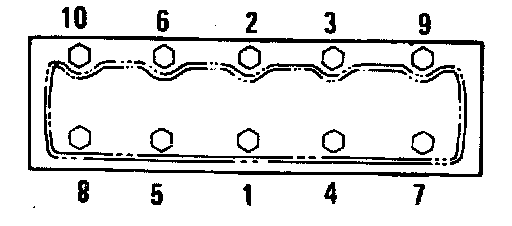

Cylinder Head BoltsIn the sequence shown (refer to image):
a.
Torque all bolts to
25 N.m (18 lb. ft.) b.
Tighten all bolts an additional
60° c.
Tighten all bolts an additional
60° d.
Tighten all bolts an additional
60° Note: Steps a, b & c should total
180°.
