Home >> Buick >> 1990 >> Regal V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Console

Console

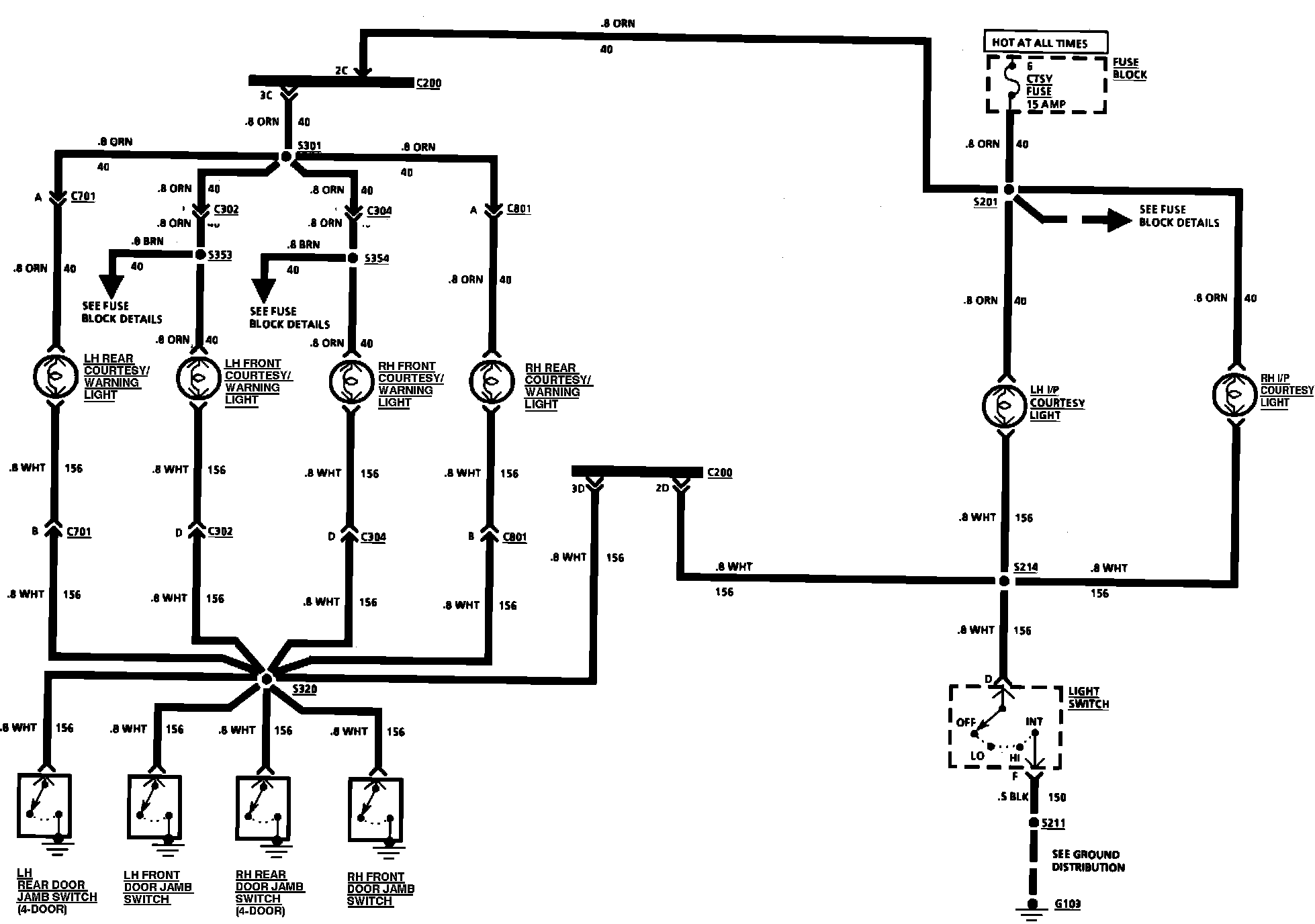

Interior Lights. Console, I/P, Front & Rear Courtesy:
