Home >> Buick >> 1990 >> Riviera V6-231 3.8L VIN C SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp >> Less Twilight Sentinel >> Late Production >> Part 1 of 2

Part 1 of 2

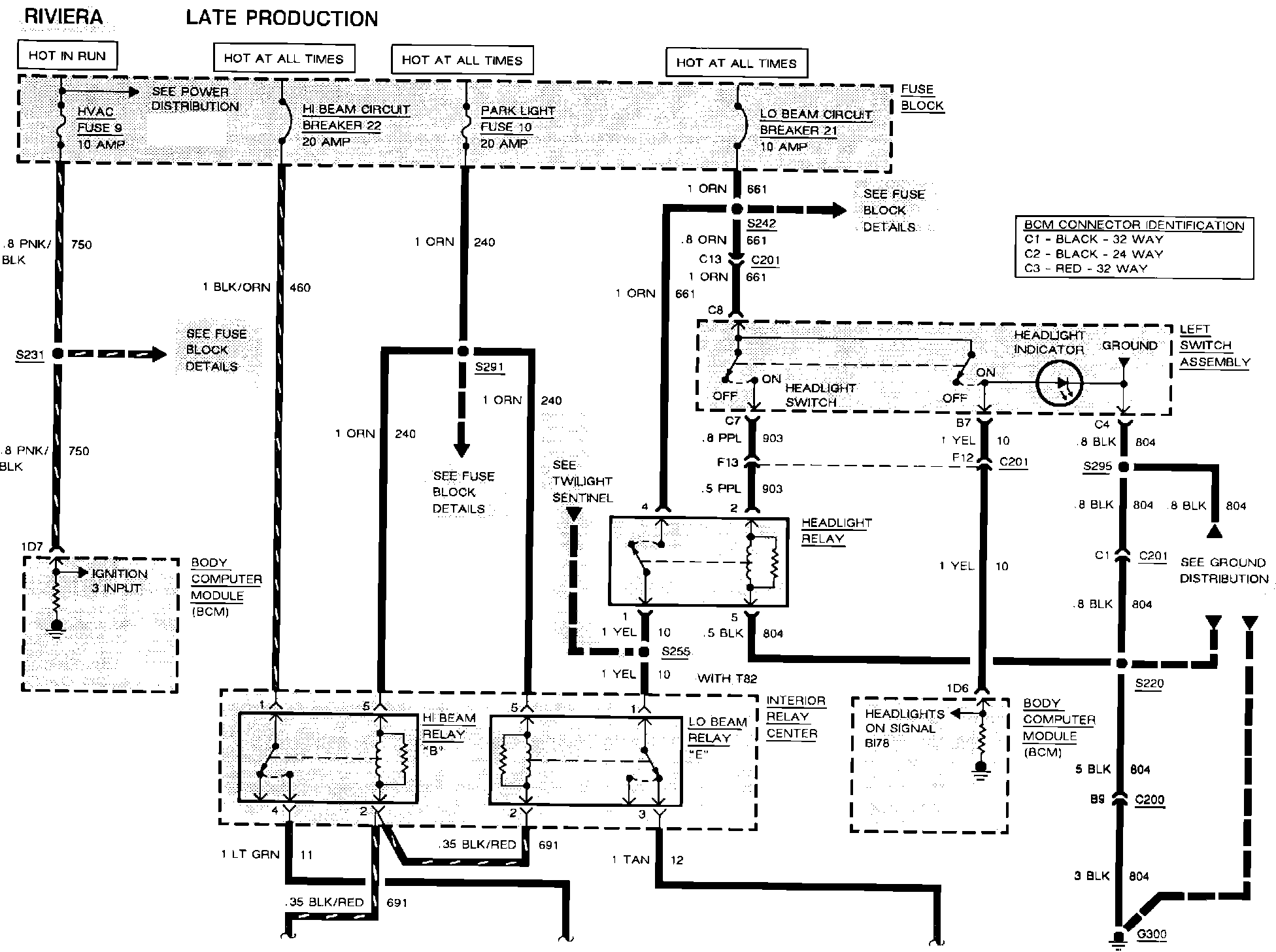

Headlamps. Late Production:
