Chart A - Compressor Does Not Operate
Chart A - Compressor Does Not Operate

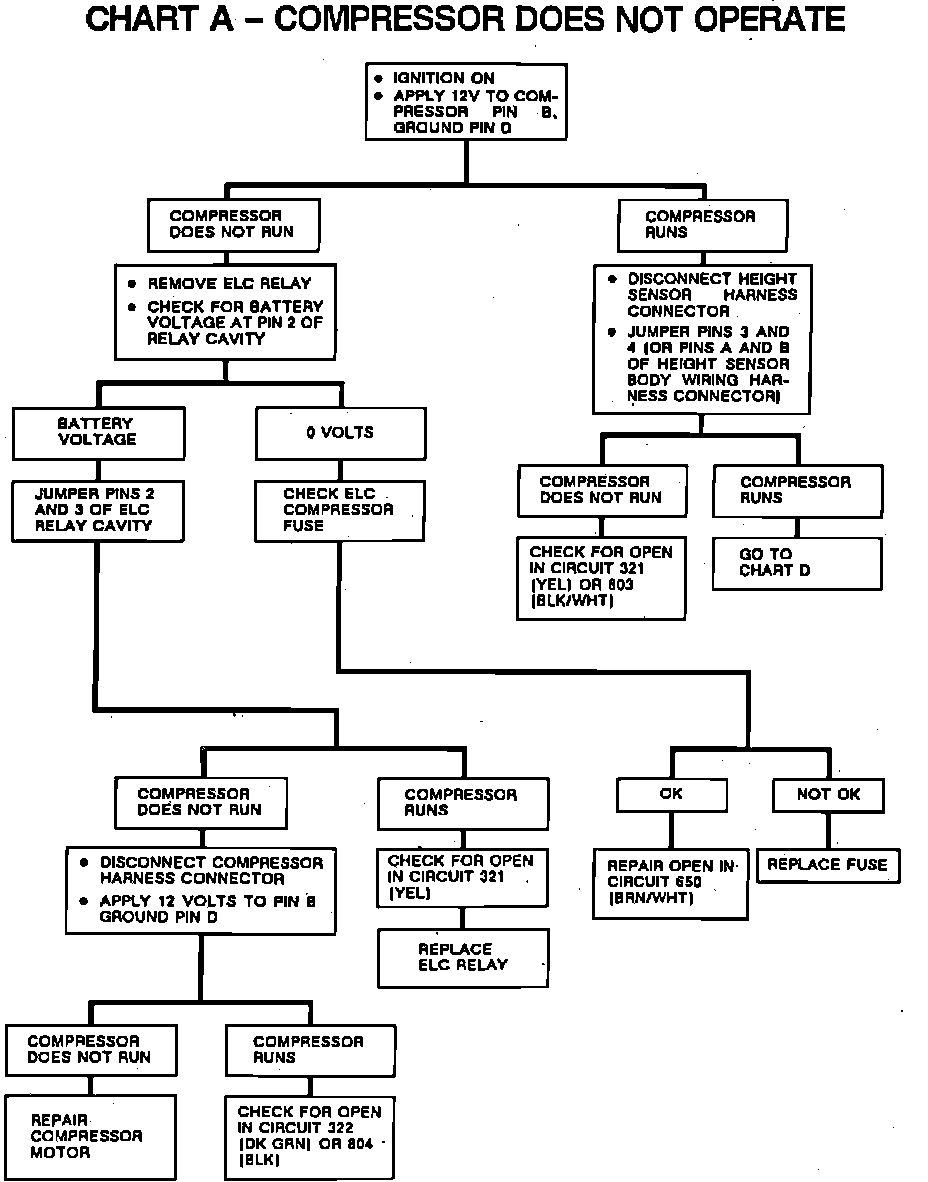

Fig. 13 ELC System Diagnostic Chart (Part 2 Of 5):
