Malfunction Indicator Lamp

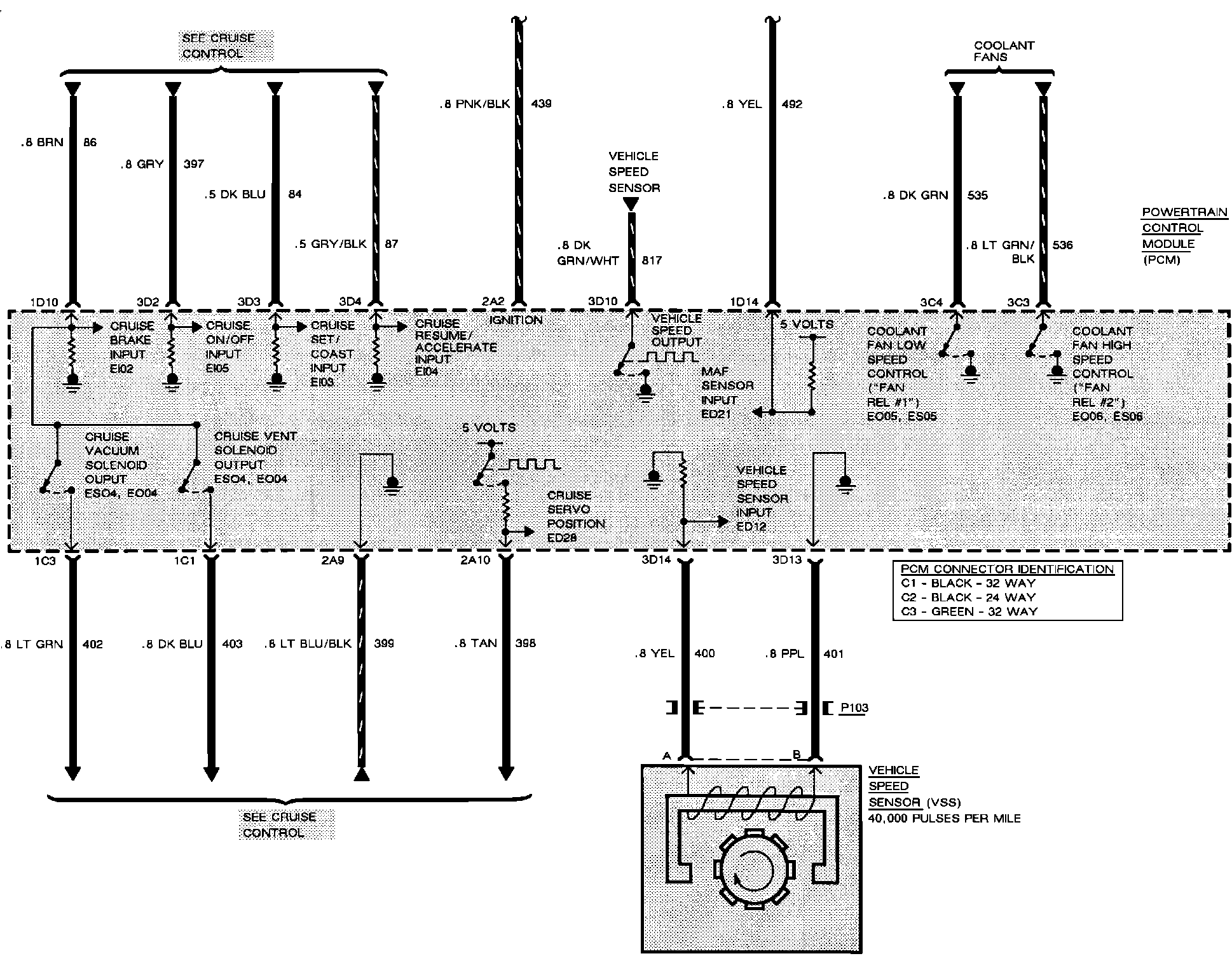

Sequential Fuel Injection: "Service Engine Soon" Indicator, Mass Air Flow And Vehicle Speed Sensor:



Sequential Fuel Injection: "Service Engine Soon" Indicator, Mass Air Flow And Vehicle Speed Sensor:
