Expansion Tube, A/C

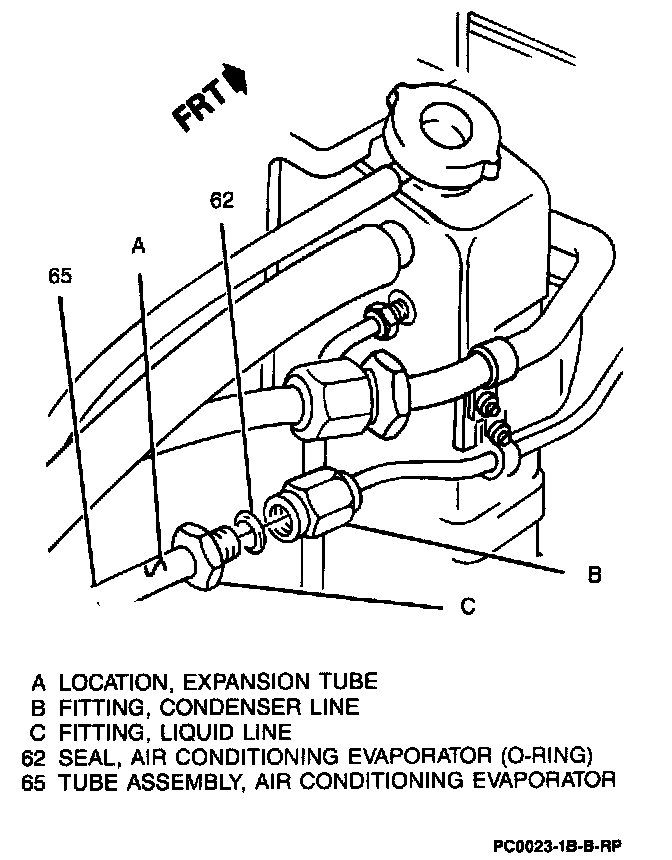

Expansion Tube Location:

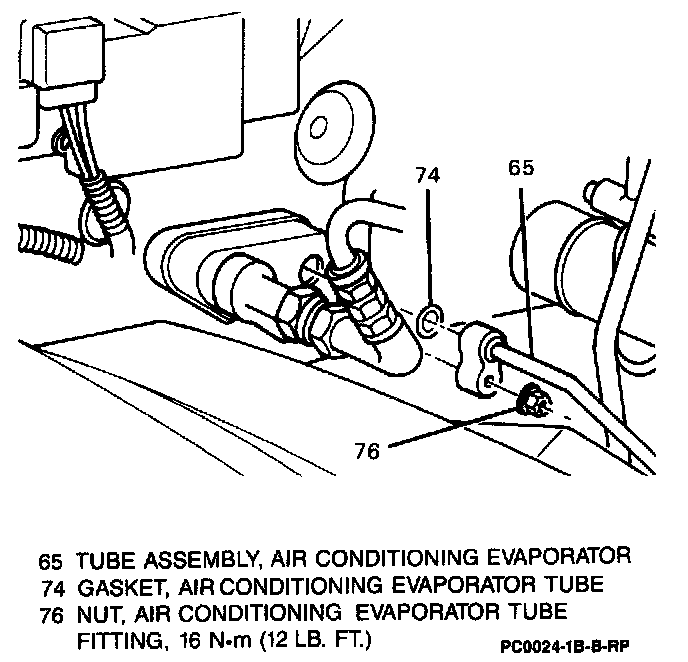

Air Conditioning Evaporator Tube Assembly At Evaporator Inlet:
Expansion Tube:
The plastic tube, also called the orifice tube, is in the enlarged portion at the end of the condenser outlet pipe. Located between the condenser and evaporator.
