ABS System - Revised Indicator Chart

9224buick04

Bulletin:
91-5-7

Date:
April '91

Ref. No.:
91-176-5

Corp. Ref. No.:
115003


SUBJECT:
SERVICE MANUAL UPDATE - SECTION 5E1 - ANTILOCK BRAKE SYSTEM
DIAGNOSIS - REVISED ANTILOCK INDICATOR CHART B

MODELS AFFECTED:
1991 ROADMASTER WAGON

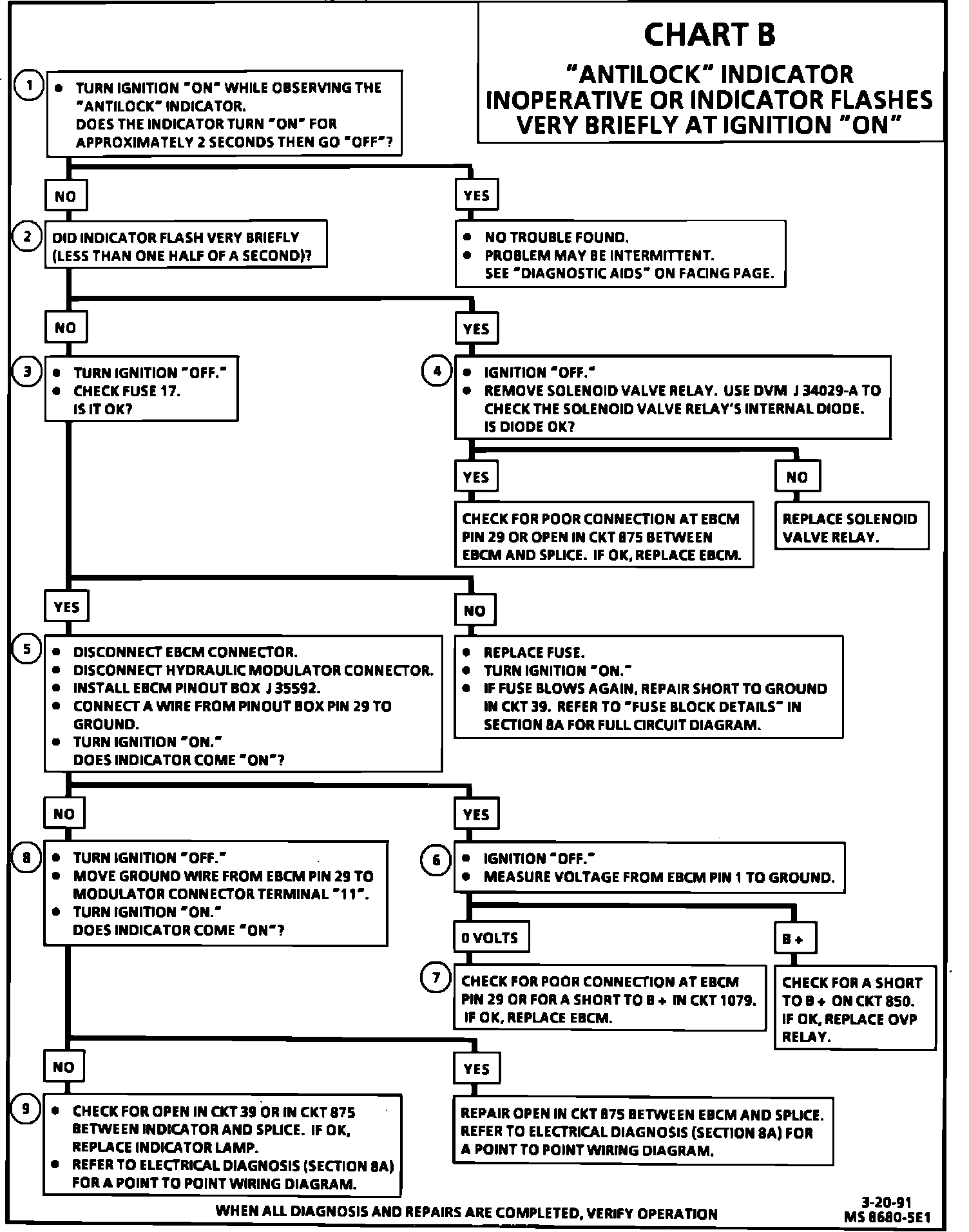

This bulletin serves to update ANTILOCK BRAKE SYSTEM DIAGNOSIS (SECTION 5E1) of the 1991 Roadmaster Service Manual, Chart B, "Antilock" Indicator Inoperative or Indicator Flashes Very Briefly at Ignition "ON". The chart which currently appears on Page 5E1-49 has been revised. Please replace the current service manual chart with the one attached.
