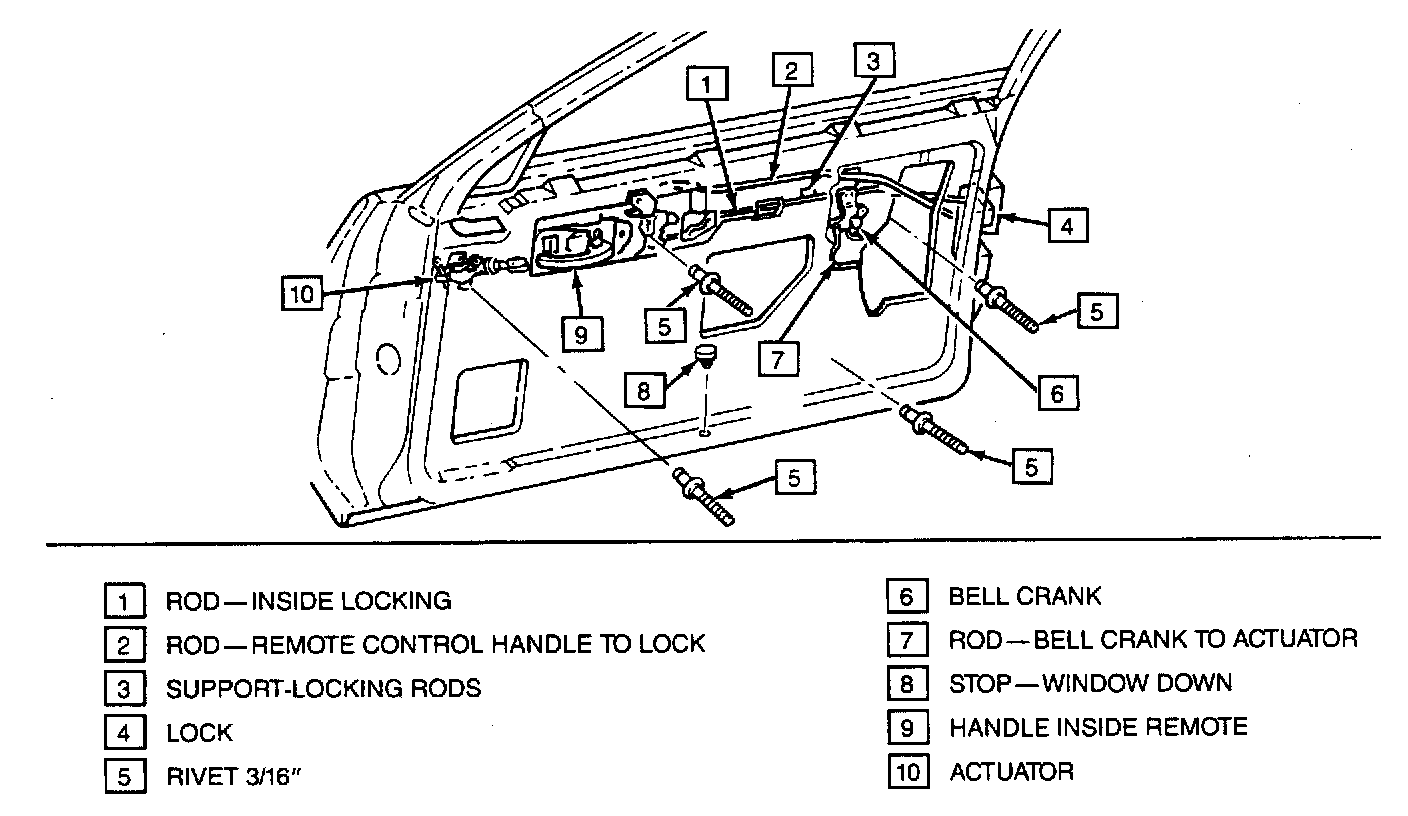

Inside Handle Rod

Remove or Disconnect

1. Rods and push rods by disengaging spring clips.
2. Plastic clips by unsnapping portion engaged to connecting rod and then pulling rod Out of attaching hole (clip remains in hole until rod is removed).
3. Bellcranks (6) by punching out attaching rivet center pin and then drilling out rivet with 3/16" drill bit.

Install or Connect

1. Rod and push rods by engaging spring clips.
2. Plastic clips by snapping clip over rods to be connected.
3. Bellcranks (6) by using 3/16" diameter x 5/16" length steel rivets.
