Operation CHARM
: Car repair manuals for everyone.
Home
>>
Buick
>>
1992
>>
Roadmaster V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Emission Controls
Emission Controls

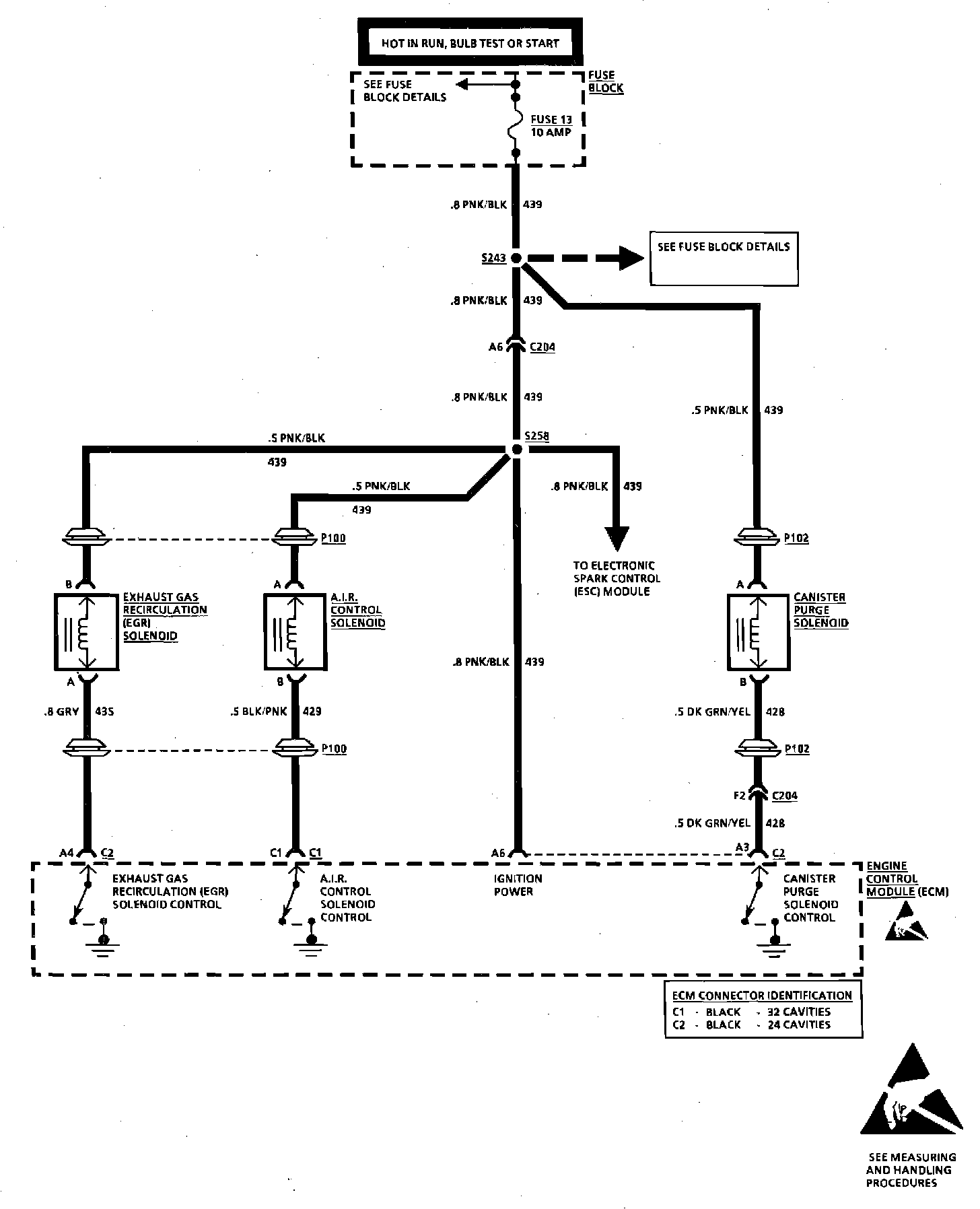

Fuel Injection (Emission Controls):
