Compressor

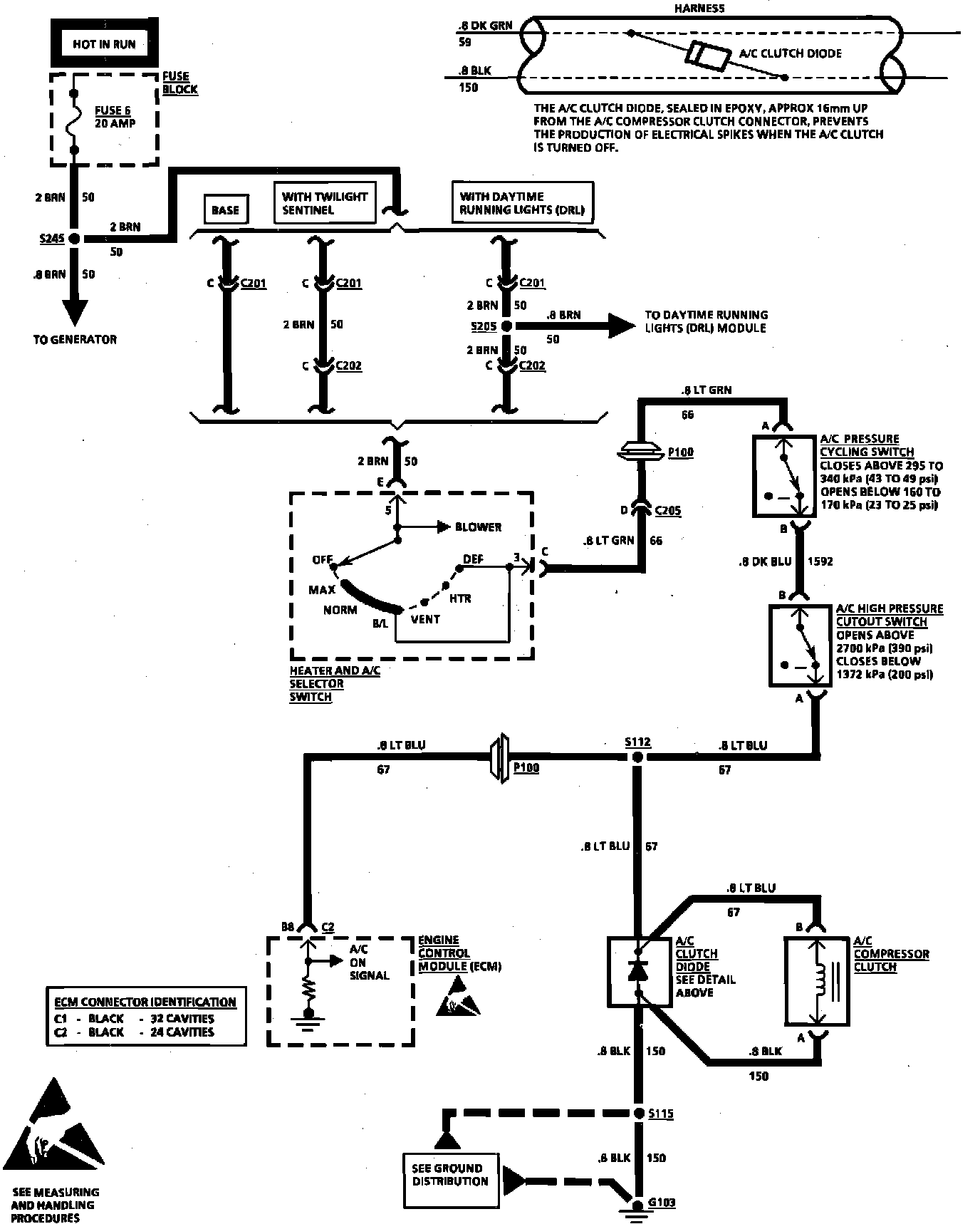

A/C Compressor Control (Manual) - Without Control Relay:

A/C Compressor Control (Manual) With Control Relay:
