P/S - Revised Pressure Switch Wiring Diagram

9217buick04

Bulletin:
92-8-18

Date:
Mar. '92

Ref. No.:
92-194-8

Corp. Ref. No.:
118125


SUBJECT:
SERVICE MANUAL UPDATE - SECTIONS 8A REVISED PSPS SCHEMATIC AND DIAGNOSTIC INFORMATION

MODELS AFFECTED:
1992 ROADMASTER

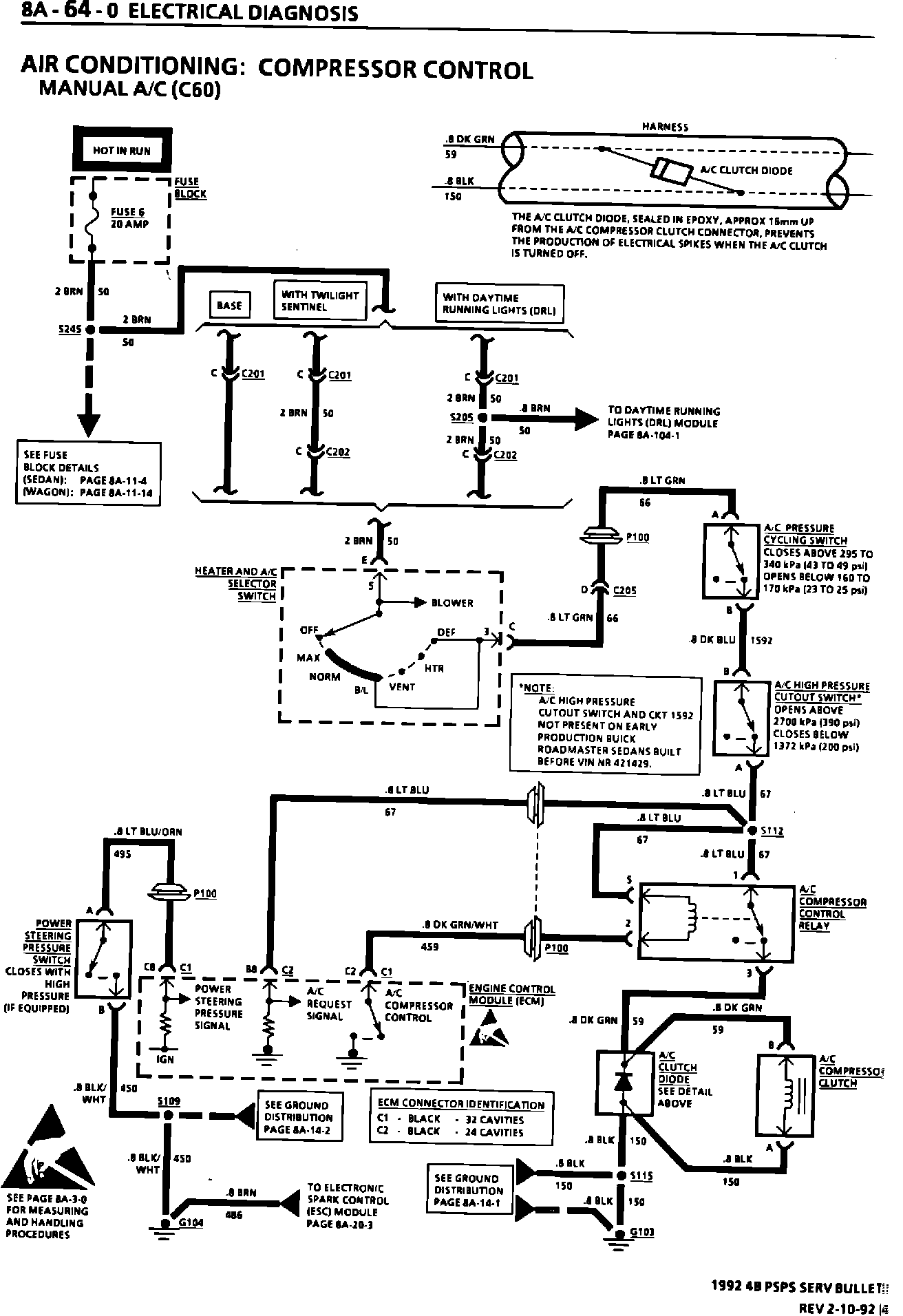

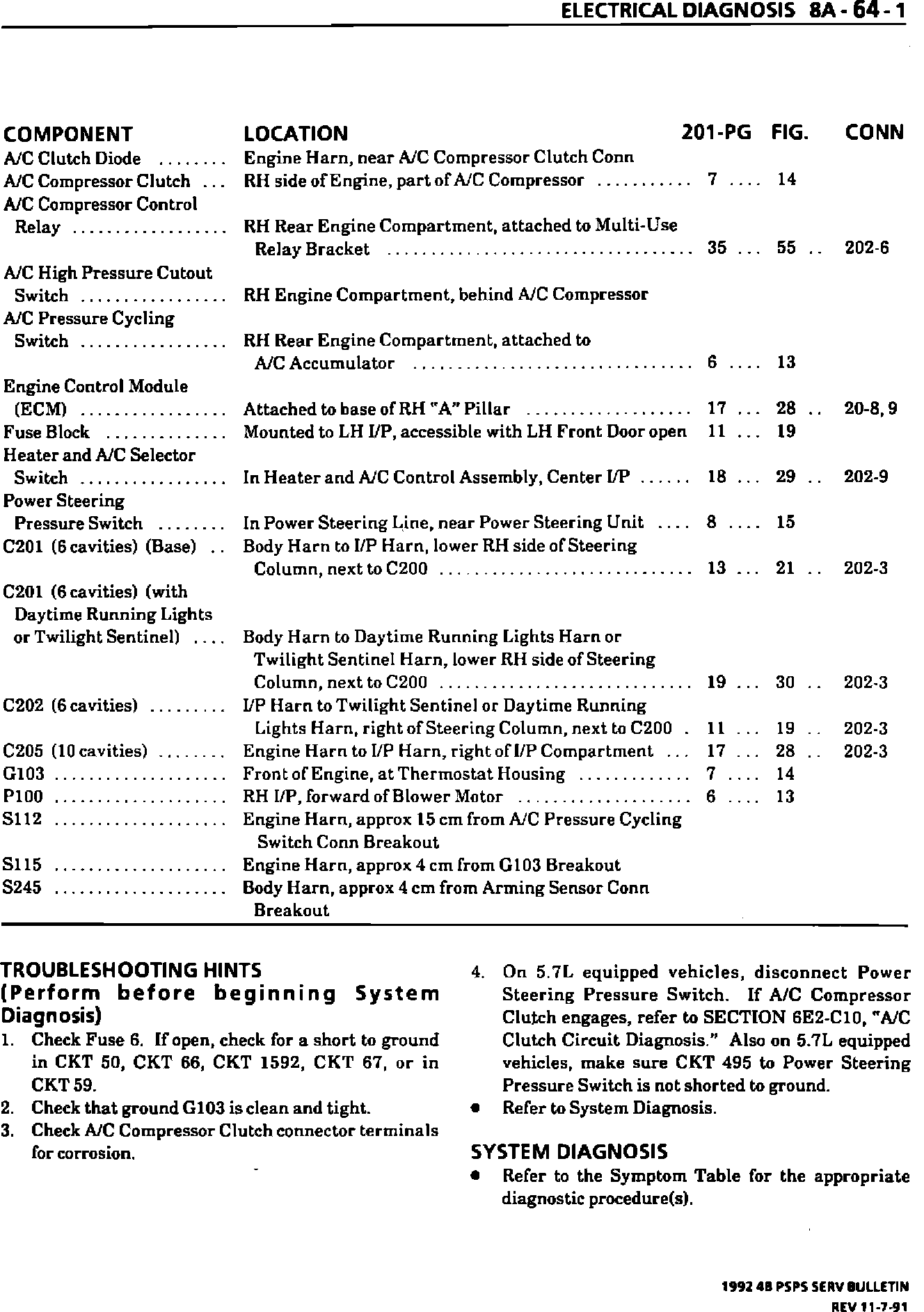

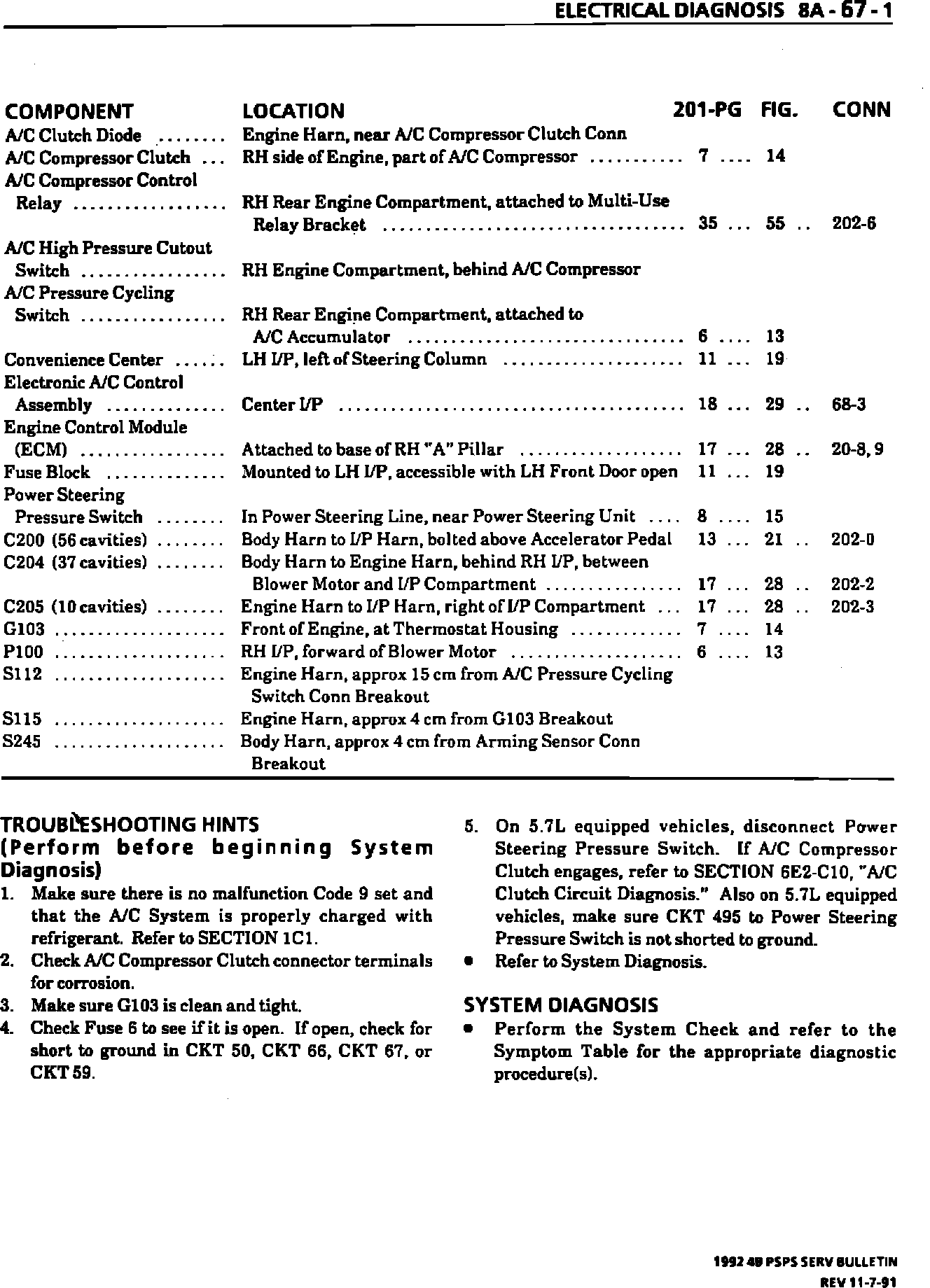

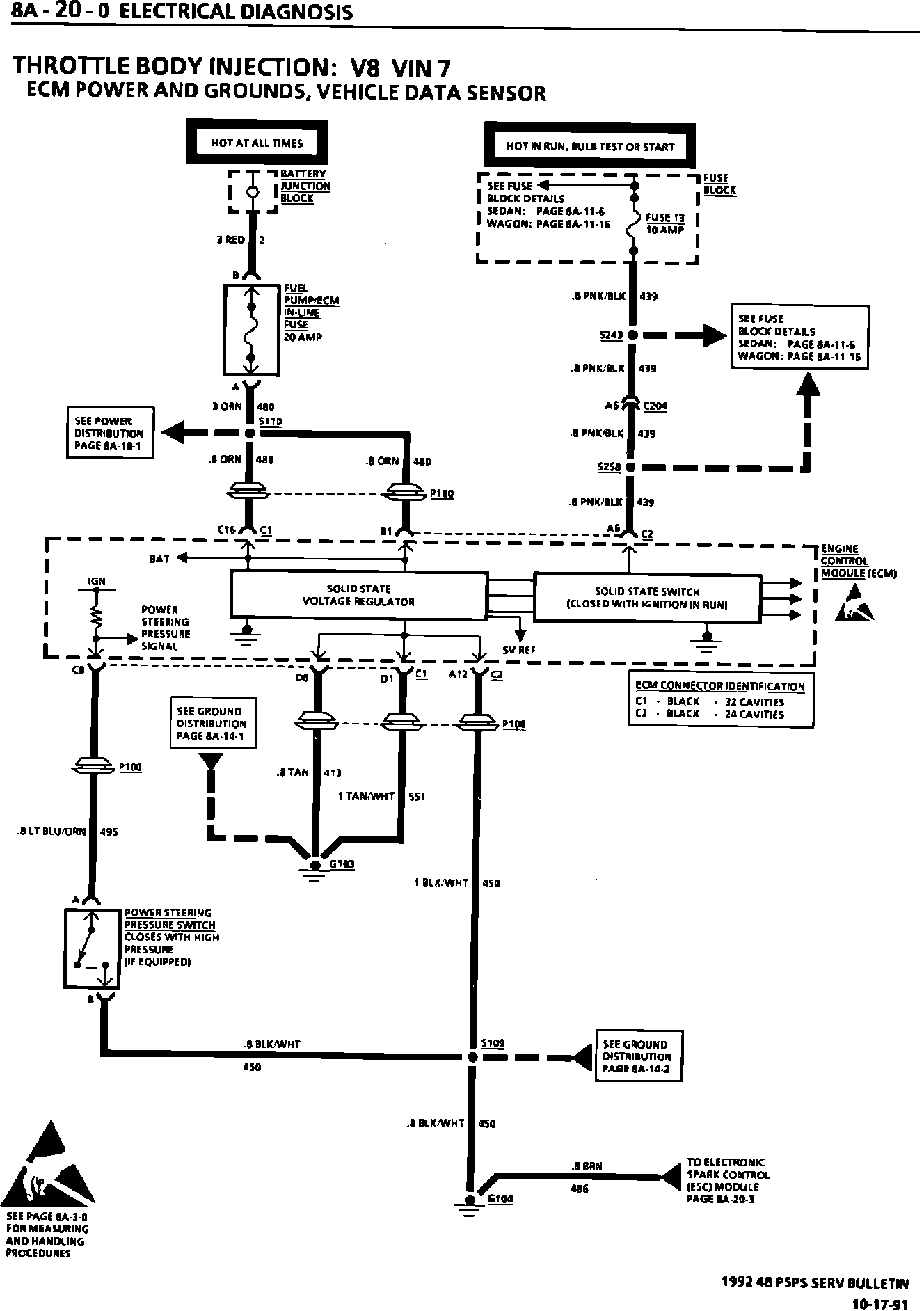

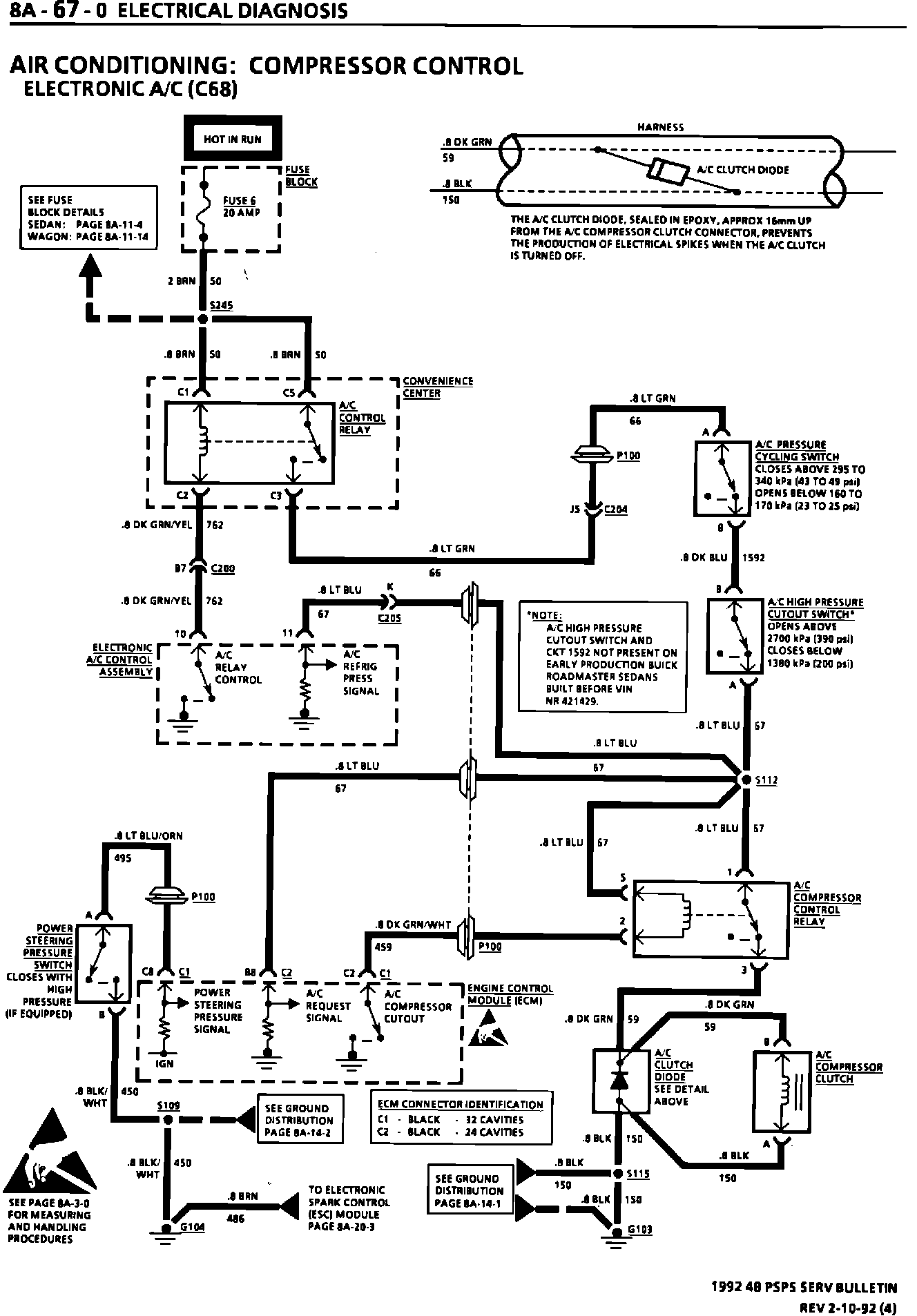

The following pages contain revised or additional Power Steering Pressure Switch (PSPS) schematics and diagnostic information. Replace the appropriate pages in the 1992 Roadmaster Service Manual in Section 8A "Electrical Diagnosis" with the revised pages.
