Chart C Warning Lamp Comes "ON" Steady

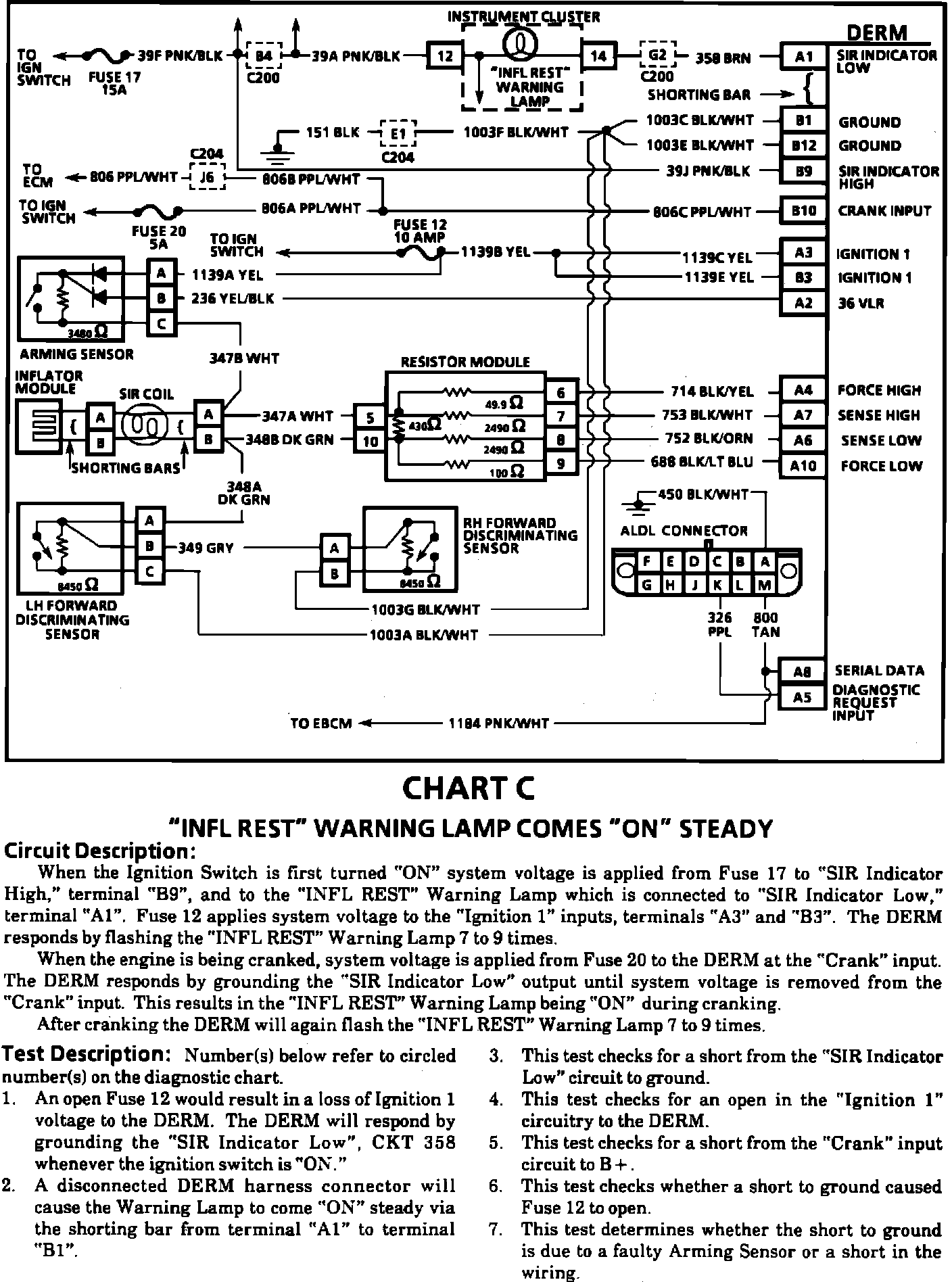

Fig. 155 Chart C, Inflatable Restraint Indicator Comes On Steady (Part 1 of 2):

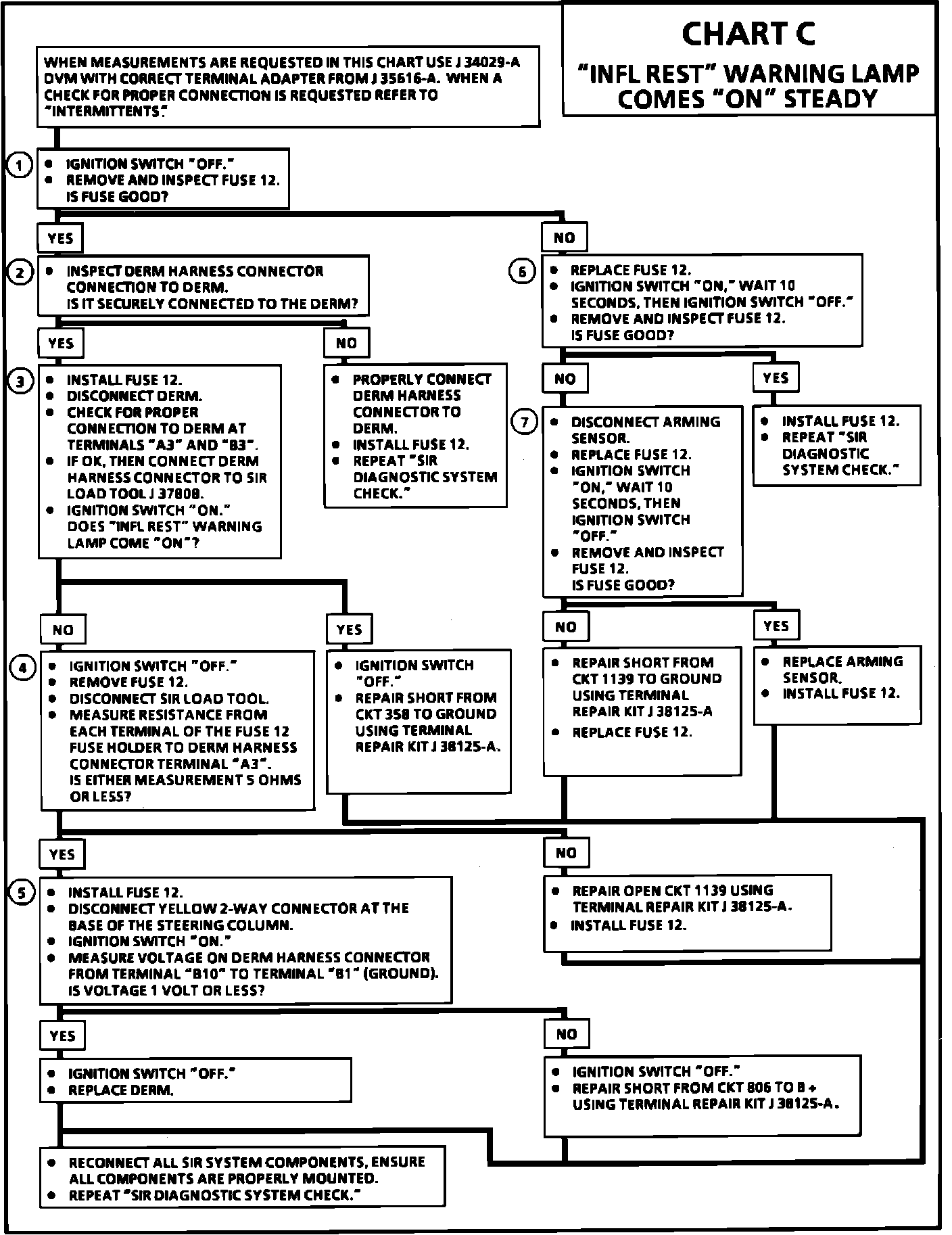

Fig. 155 Chart C, Inflatable Restraint Indicator Comes On Steady (Part 2 of 2):
