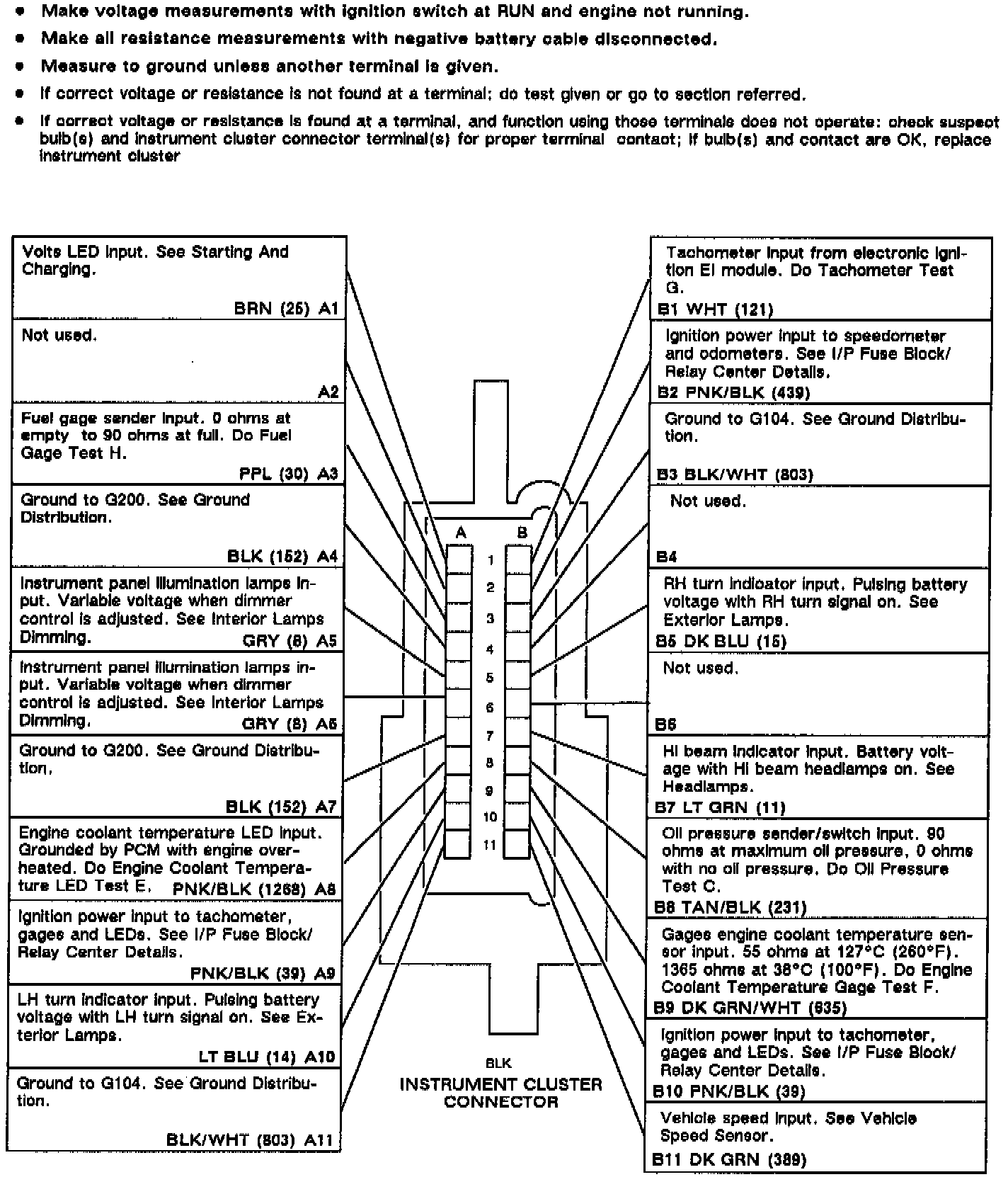

Test A: Instrument Cluster Connector Pinout Test
Test A: Instrument Cluster Connector Pinout Test
A: Instrument Cluster Connector Pinout Test:
