Door Lock System:

Remove or Disconnect

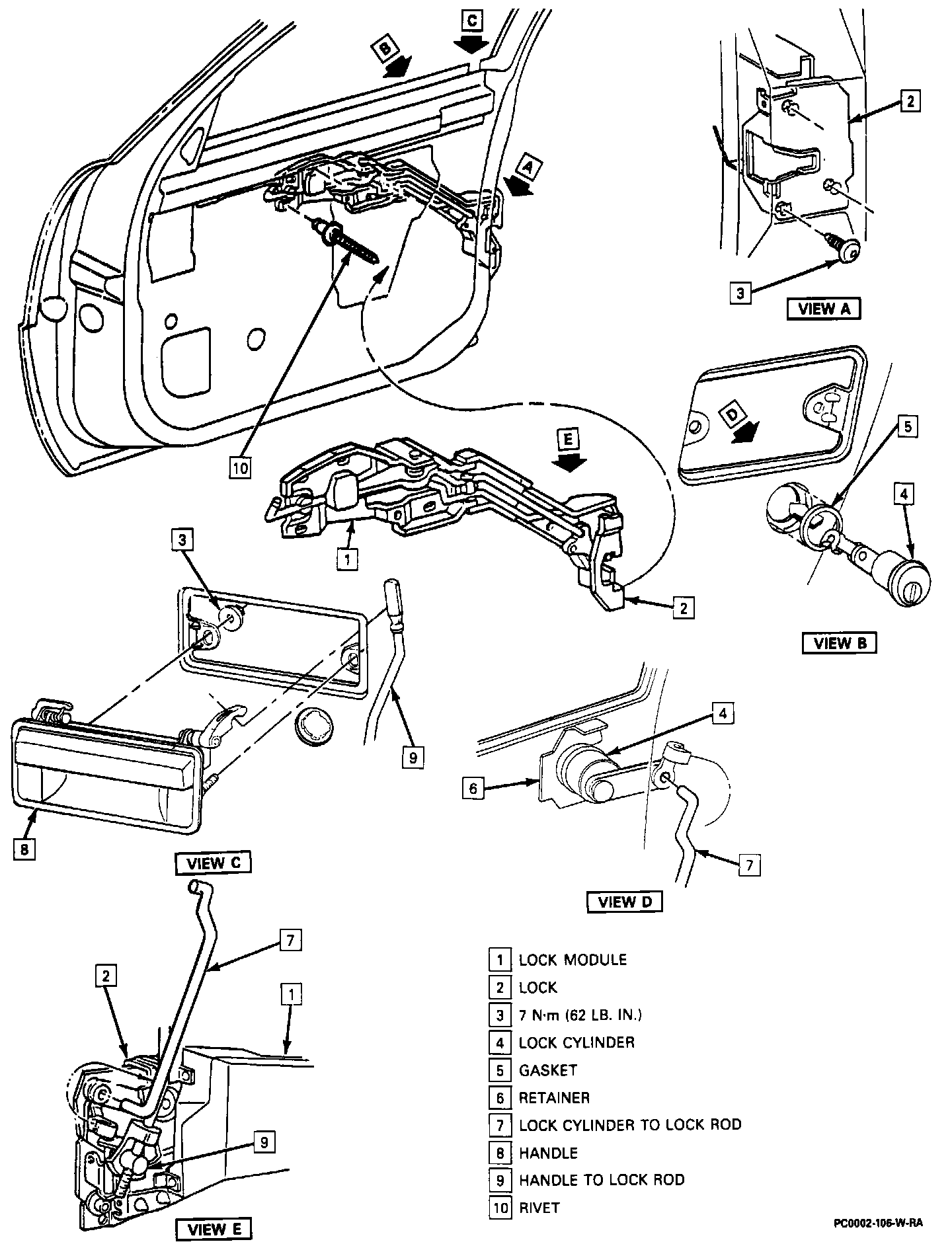

1. Door trim panel.
2. Water deflector.
3. Lock cylinder to lock rod.
4. Screws.
5. Rivets by punching out mandrel, then using a 3/16 inch drill bit.
6. Power lock connector.
7. Lock module.

Install or Connect

1. Lock module in position through access hole in door inner panel. Install handle to lock rod to handle lever and align module to holes in door facing.

NOTICE: It is required that while performing step 2 that the lock assembly be held tight against door facing while installing screws. All screws must be driven at a 90° angle to door facing to prevent cross threading or stripping of screws or door lock attaching holes. It is also required to tighten screws to specified torque of 7 N.m (62 lb. in.).

2. Screws.

Tighten
^ Screws to 7 N.m (62 lb. in.).

3. Power lock connector.
4. Rivets using 3/16 inch x 1/4 inch peel type rivets.
5. Lock cylinder to lock rod.

Inspect
^ Lock system for proper operation.

6. Water deflector.
7. Trim panel.
