Governor: Service and Repair

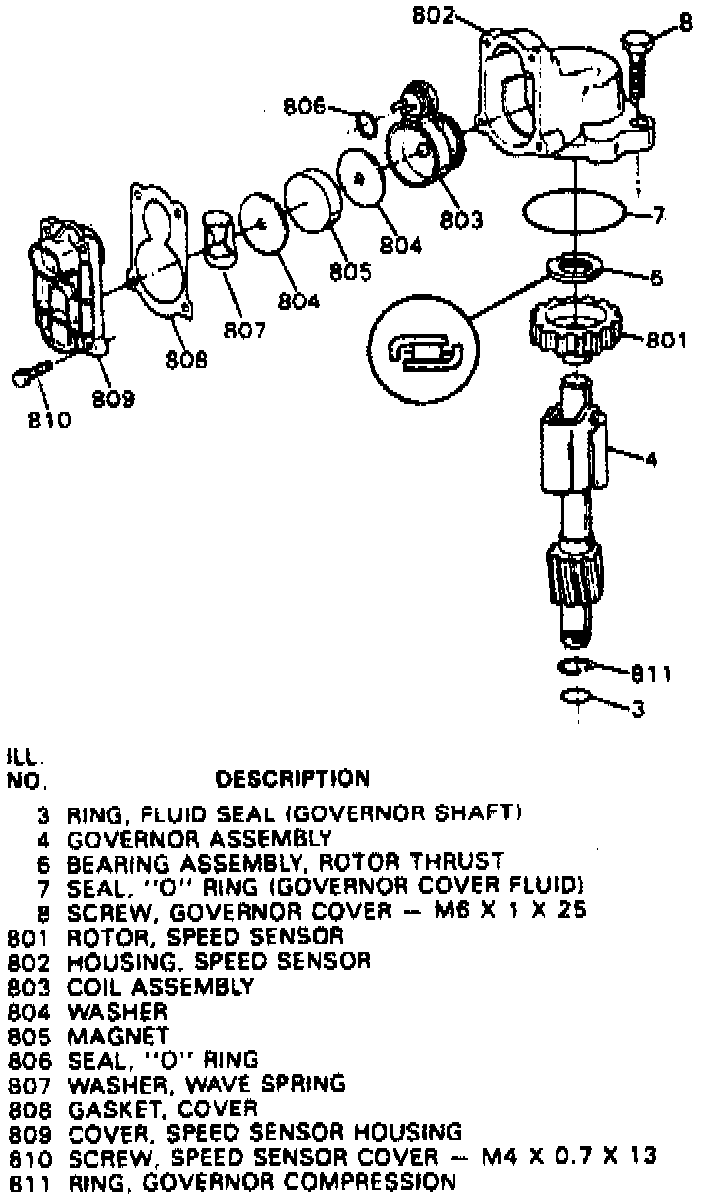

Fig. 10 Governor Replacement.:

REPLACE
1. Remove screws, speed sensor housing and oil seal.
2. Remove bearing and rotor, Fig. 10 .
3. Remove governor assembly.
4. Remove fluid seal ring.
5. Reverse procedure to install.
