Governor Replace

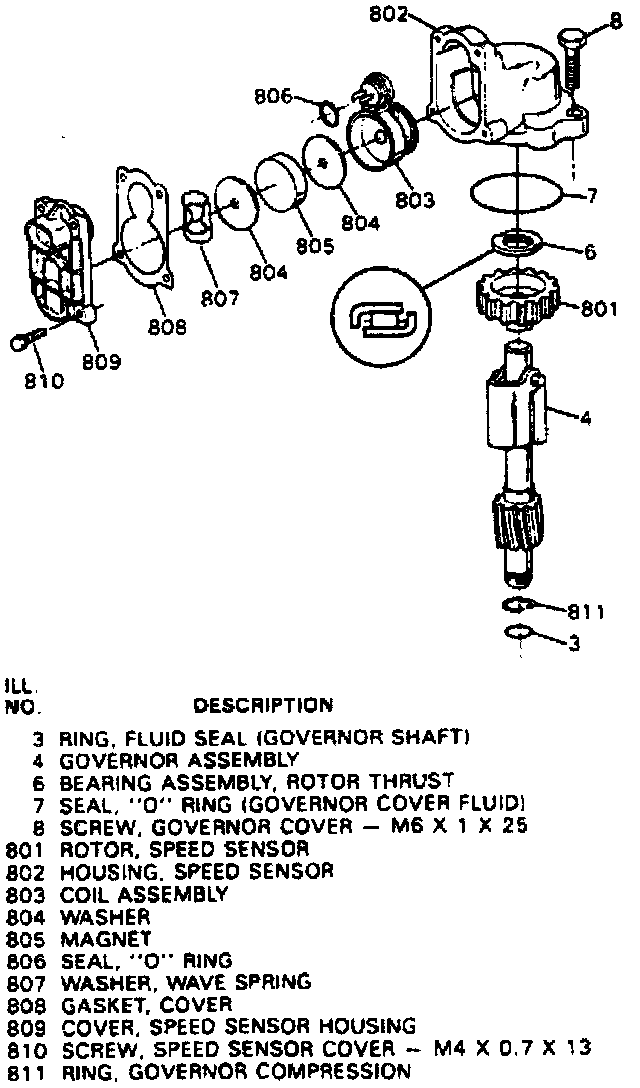

1. Remove screws, speed sensor housing and oil seal.

2. Remove bearing and rotor.

3. Remove governor assembly.

4. Remove fluid seal ring.

5. Reverse procedure to install.
