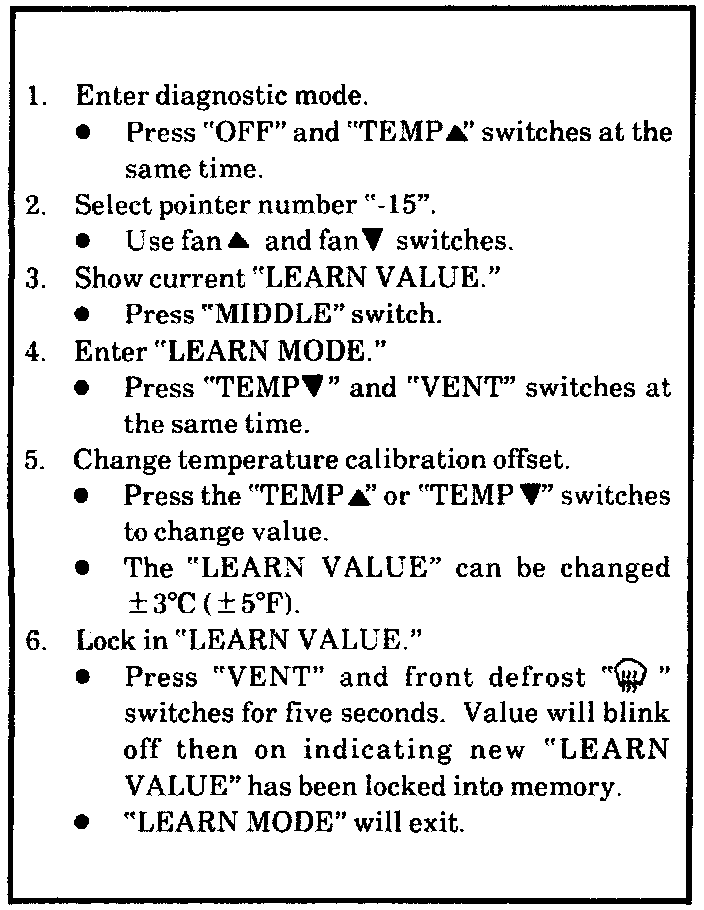

HVAC Learn Mode

This feature allows the ACAC system to be custom calibrated to the desire of the operator. This is done by programming an offset value in the memory to increase or decrease the actual interior temperature above or below the set temperature. During the calibration offset procedure, the procedure can be aborted any time before the new calibration is locked in by pressing the "AUTO" switch. The HVAC learn mode can only be interred once for each entry into diagnostics.
