Transmission

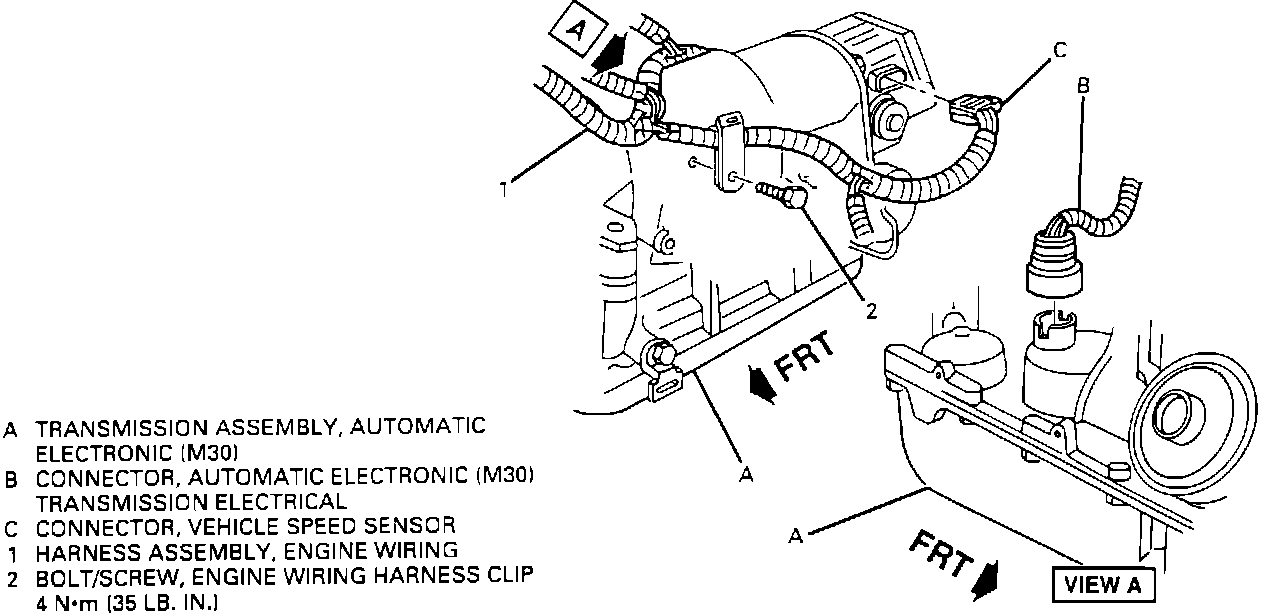

Transmission Wiring Harness Assembly:

A TRANSMISSION ASSEMBLY, AUTOMATIC ELECTRONIC (M30)
B CONNECTOR, AUTOMATIC ELECTRONIC (M30) TRANSMISSION ELECTRICAL
C CONNECTOR, VEHICLE SPEED SENSOR
1 HARNESS ASSEMBLY, ENGINE WIRING
2 BOLT/SCREW, ENGINE WIRING HARNESS CLIP 4 N-m (35 lb.in.)
