Doors - Windnoise and/or Appearance/Retention Concern
File In Section: 10 - BodyBulletin No.: 53-10-28
Date: April, 1996
Subject:
Windnoise and/or Appearance/Retention Concern of Glass Run Channel, Front and Rear Doors (Diagnose/Replace, Reinstall)
Models:
1995-96 Buick LeSabre, Park Avenue
1995-96 Oldsmobile Eighty Eight, Ninety Eight
1996 Pontiac Bonneville

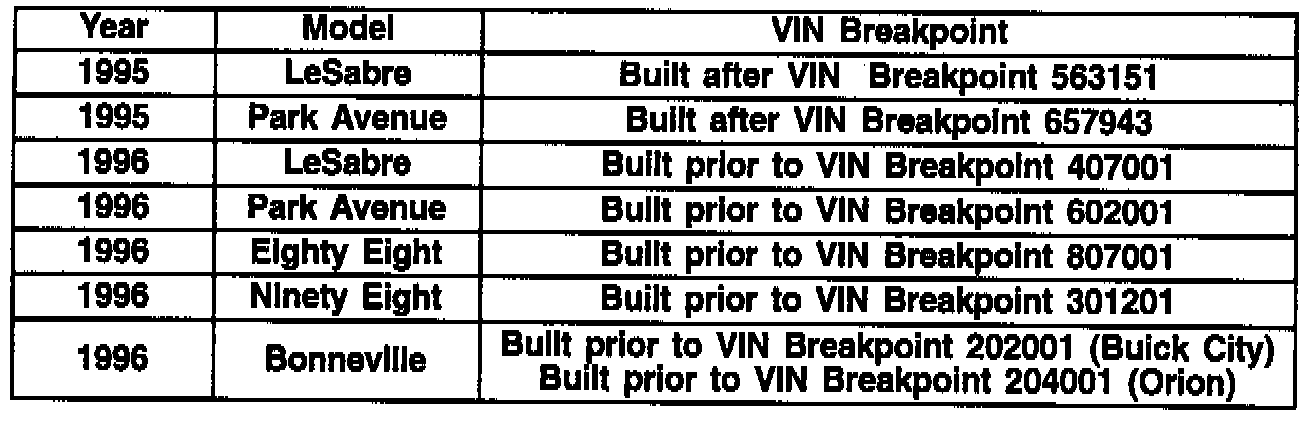

VIN Breakpoints
Condition
Some owners may comment on the following conditions:
a. Windnoise at lower front movable glass area (all 1995-96 models - as shown by VIN Breakpoints)
b. Appearance/retention of header portion of glass run channel on front and rear doors (all 1996 models - by VIN Breakpoints)
c. Front and rear door glass run channel B-pillar pushpin retention (all 1996 models - as shown by VIN Breakpoints)
Correction
Diagnose
a. Check Method 1

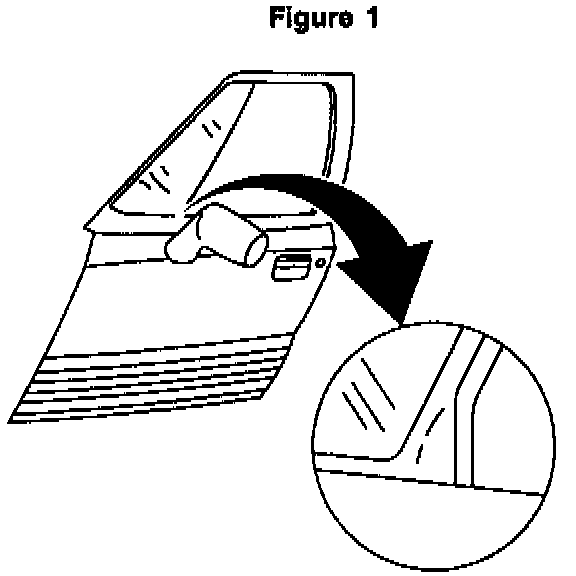

Lower movable glass to the full down position. Visually inspect the glass contact area at the lower front corner of the opening (see Figure 1). Open glass run channel lips and inspect for flocking and/or dried adhesive in the contact area. If so, the window frame glass run channel must be replaced.
Check Method 2
With movable glass up, visually inspect lower front corner of movable glass. Inspect location of glass in the run channel lips. If the glass is outboard and interfering with the exterior lip of the run channel and not contacting inside lip, the front lower window run channel must be replaced.
Important:
Testing done in the following Check Methods (B. 1 and 2) should be done at room temperature (70-80° F; 21-27° C).
b. Check Method 1
To insure upper edge of glass run retention, lower movable glass to the full down position with the door open. Facing the outboard side, grasp the outer lip portion with thumb and fore finger (both hands). Pull firmly in the outboard direction, towards yourself. You should not observe any excessive movement. Repeat this process across the entire area. This outer lip section has been tested to withstand 20-25 pounds of direct pull force.
Check Method 2
To insure lower edge of glass run retention, lower movable glass down. Grasp lower portion of glass run with thumbs in web sealing area. Rotate rubber lip up and outward firmly along entire glass run channel. If the lower section is not engaged, the metal retainer will be visible and the lower blocked lip will move outboard easily.
c. Check Method

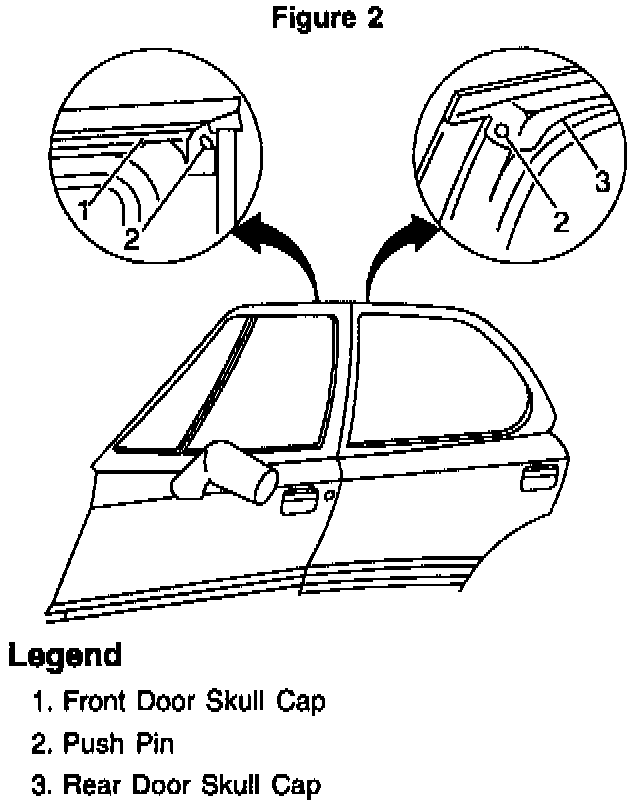

Inspect front and rear door B-pillar skull cap rubbers (see Figure 2). Check for loose fit due to missing or loose push pin.
Service Procedure
a. Check 1
If window frame glass run channel needs to be replaced, refer to Section 10-6 of the Service Manual.
Check 2
If front lower window run channel needs to be replaced:
1. Remove door trim panel. Refer to Section 10-6 of the Service Manual.
2. Remove speaker and water deflector. Refer to Section 10-6 of the Service Manual.
3. Remove upper and lower retaining bolts.
4. Remove window run channel.
5. Install new window run channel.
6. Install water deflector.
7. Install speaker.
8. Install door trim panel.
b. If one or both conditions exist:
1. Disengage entire portion of glass run channel.
2. Reinstall. Start at the applique and move toward the stationary glass. Push upper section in tight to door to engage top rubber lip. Push lower flocked lip in to engage lower rubber lip.
3. Recheck retention as in Check Methods 1 and 2.
4. If reinstallation does not work, check garnish retainer underneath glass run channel to insure the proper retainer is installed. Inspect shape of retainer and compare with Figure 3. If retainer is not correct, replace it.

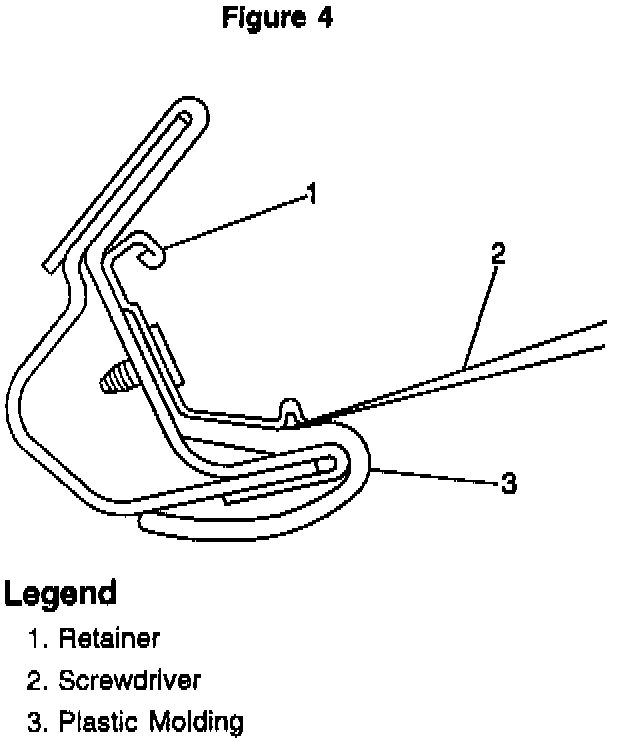

If retainer is correct but does not hold, the opening is too wide. Rework retainer with a flat-bladed screwdriver. Place tip of screwdriver between plastic molding and lower metal edge of retainer (see Figure 4). Pry upward a small amount (0.5 mm - 0.75 mm) to close opening. Repeat procedure along full length. Reinstall per Step 2 and check retention per Check Methods 1 and 2.
c. It either of the two conditions exist, replace pushpin. Remove old pushpin, install new pushpin by pushing pin through rubber skull cap hole into hole in frame until fully seated. Check for snug fit.
Parts Information
Window Kit - Front Door
Model P/N
Buick Park Avenue/ 12371632-33
Pontiac Bonneville
Buick LeSabre 12371636-37
Oldsmobile Ninety Eight 12371640-41
Oldsmobile Eighty Eight 12371644-45
Window Kit - Rear Door
Model P/N
Buick LeSabre/Park Avenue 12371638-39
Oldsmobile Ninety Eight 12371642-43
Oldsmobile Eighty Eight 12371646-47
Pontiac Bonneville 12371648-49
Pushpins
Model P/N
All Models 20538173
Parts are currently available from GMSPO.
Warranty Information
For vehicles repaired under warranty, use:
Condition a
Labor
Operation Description Labor Time
C0064/65 Glass, Front Quarter Use published
(Stationary) - labor operation
Replace (Right/Left) time
C0140/41 Channel, Front Door Use published
Window Run - labor operation
Replace (Right/Left) time

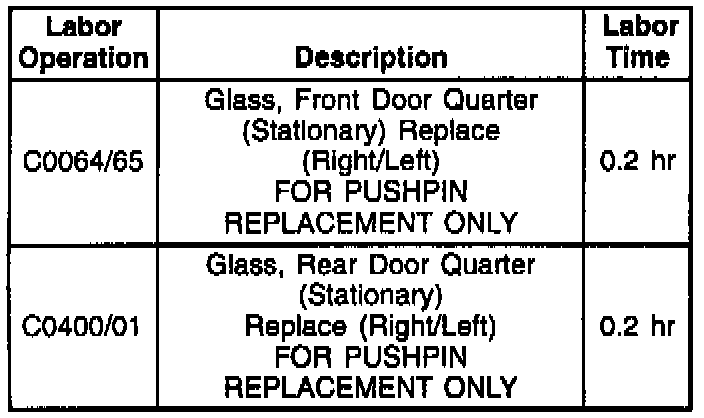

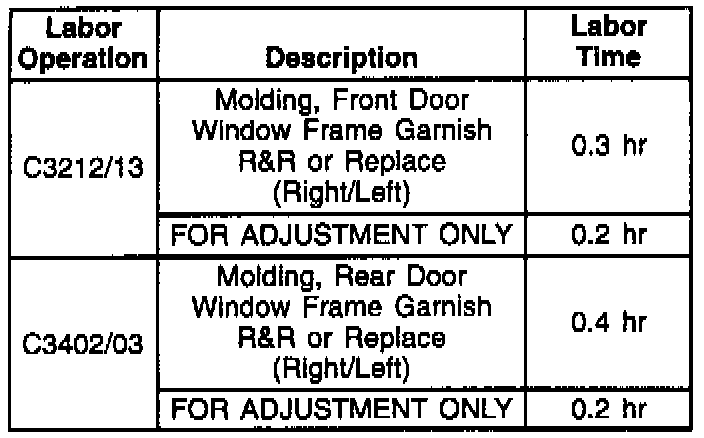

Condition b
Condition c
