Hydraulic Brake System Troubleshooting
>>
Brake Pedal Feel Diagnosis
Brake Pedal Feel Diagnosis

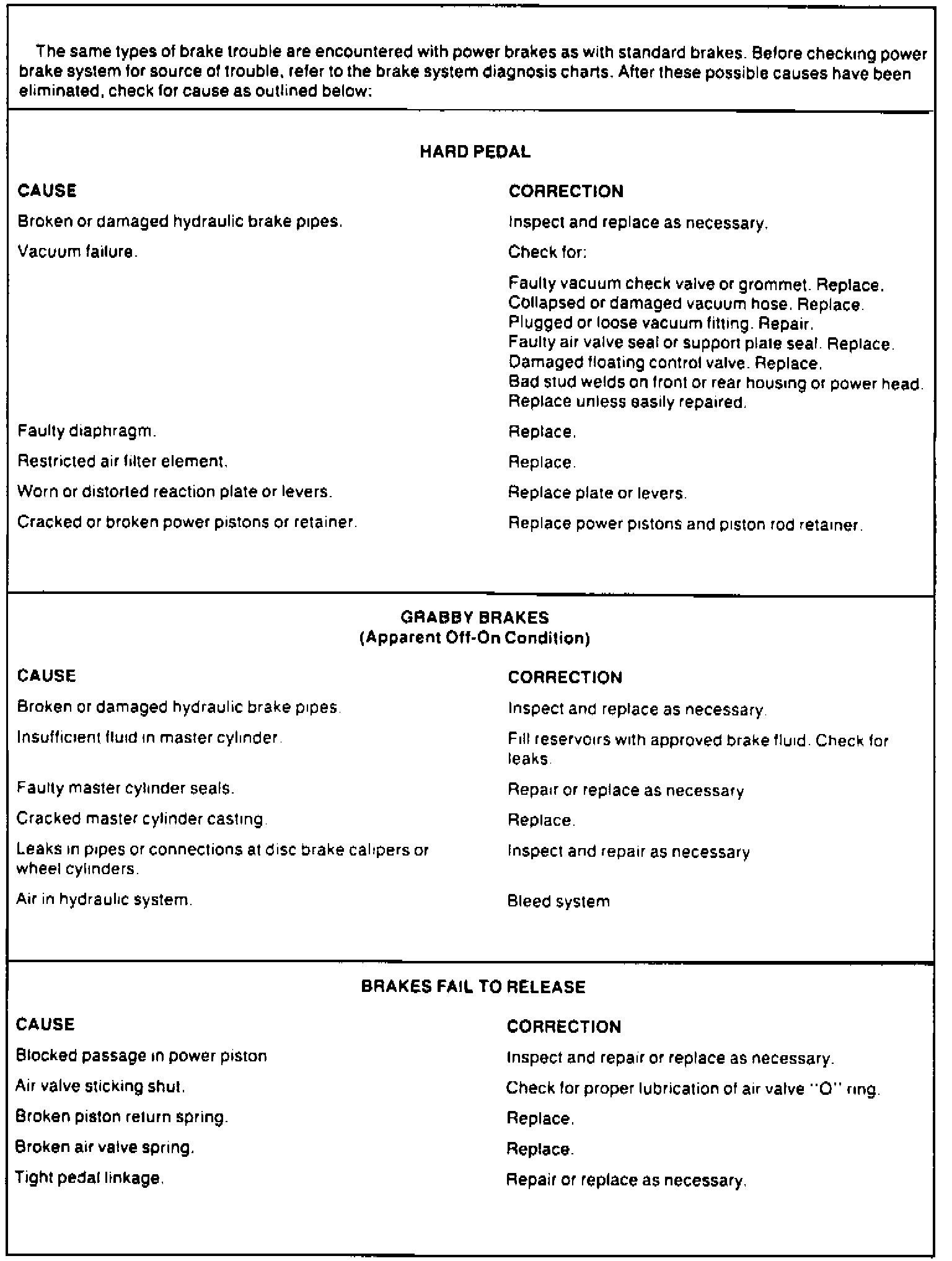

Fig. 18 Power Brake Diagnosis Chart:
