Home >> Buick >> 1995 >> Park Avenue V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Manual (RPO C61) & Electronic (RPO C67) A/C >> Blower Controls

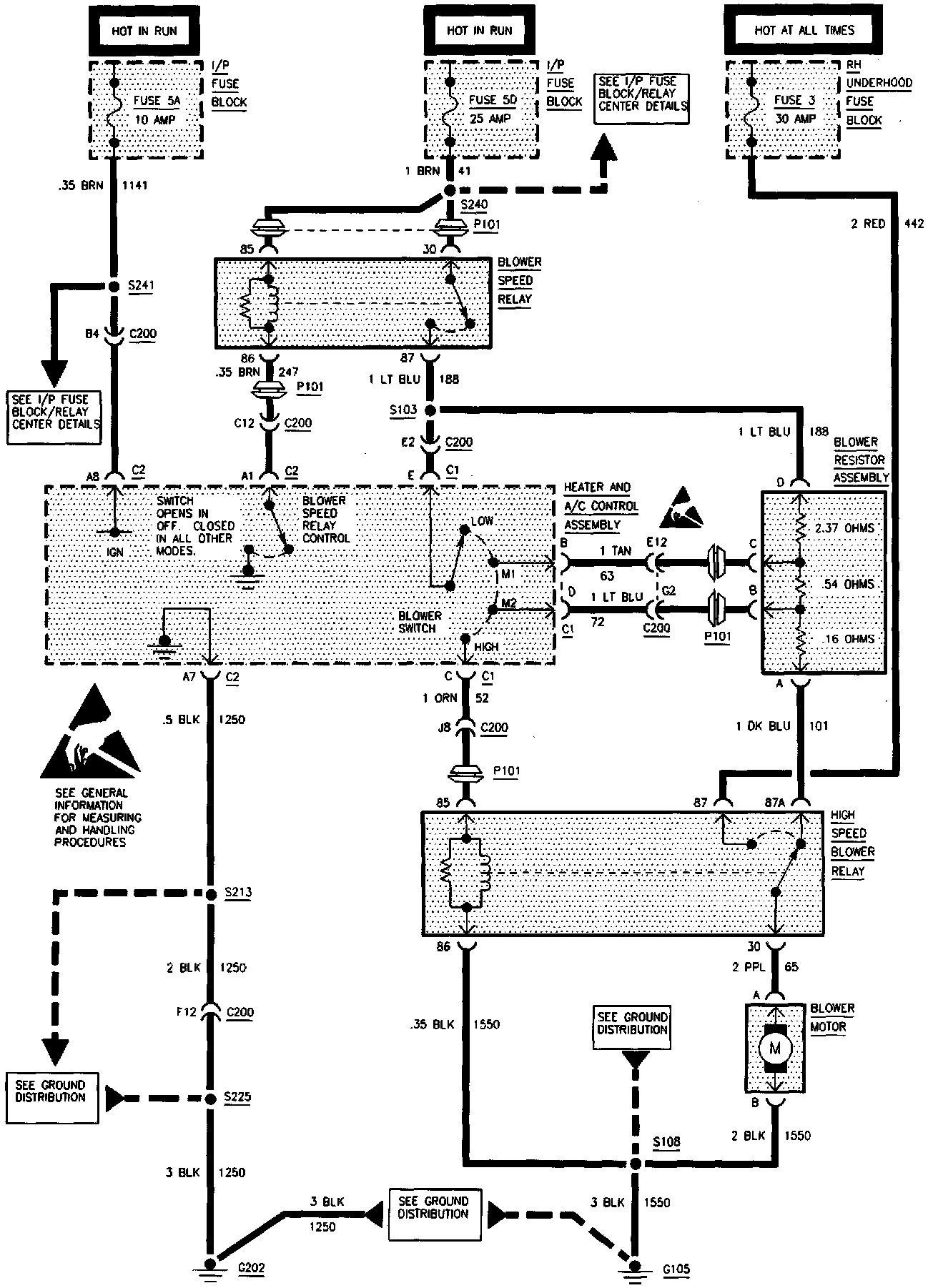

Blower Controls

Electronic Air Conditioning (RPO C67) Buick:
