Home
>>
Buick
>>
1995
>>
Park Avenue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Backup Lamp
>>
With Adaptive Lamp Monitor
With Adaptive Lamp Monitor

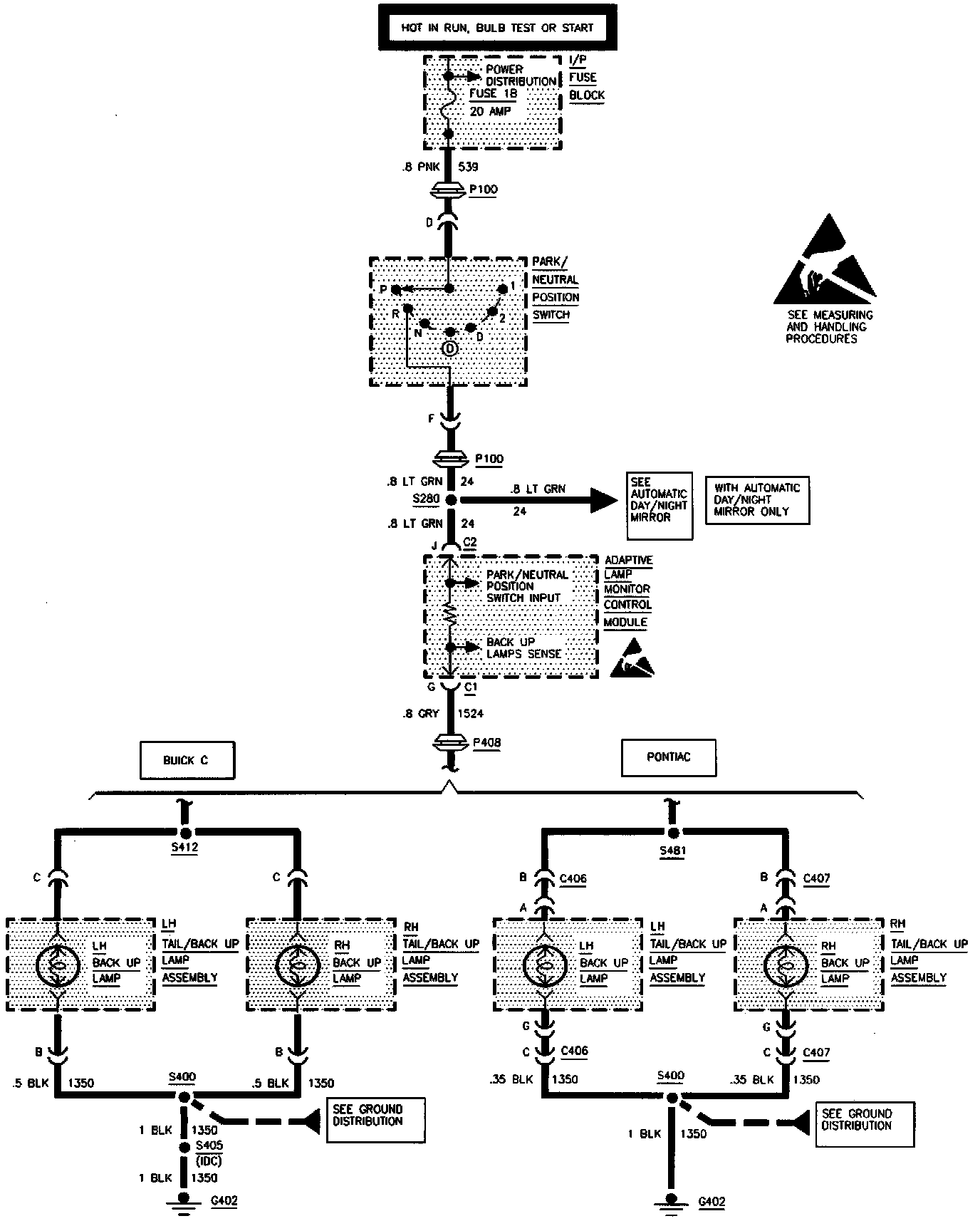

Backup Lamps: With Adaptive Lamp Monitor:
