Operation CHARM
: Car repair manuals for everyone.
Home
>>
Buick
>>
1995
>>
Park Avenue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
A/T & Emission Controls
A/T & Emission Controls

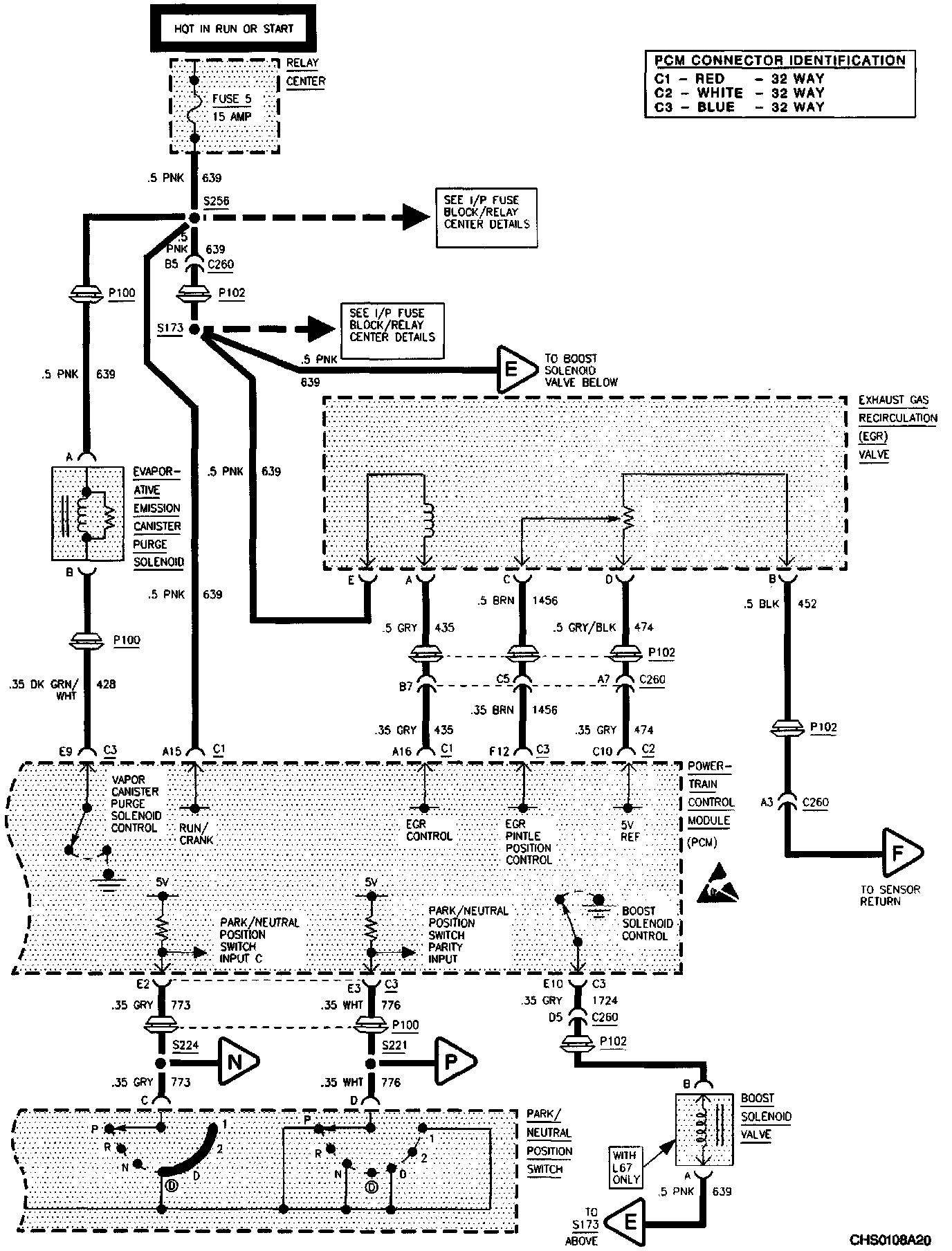

Automatic Transaxle And Emission Controls (Part 1 Of 2):

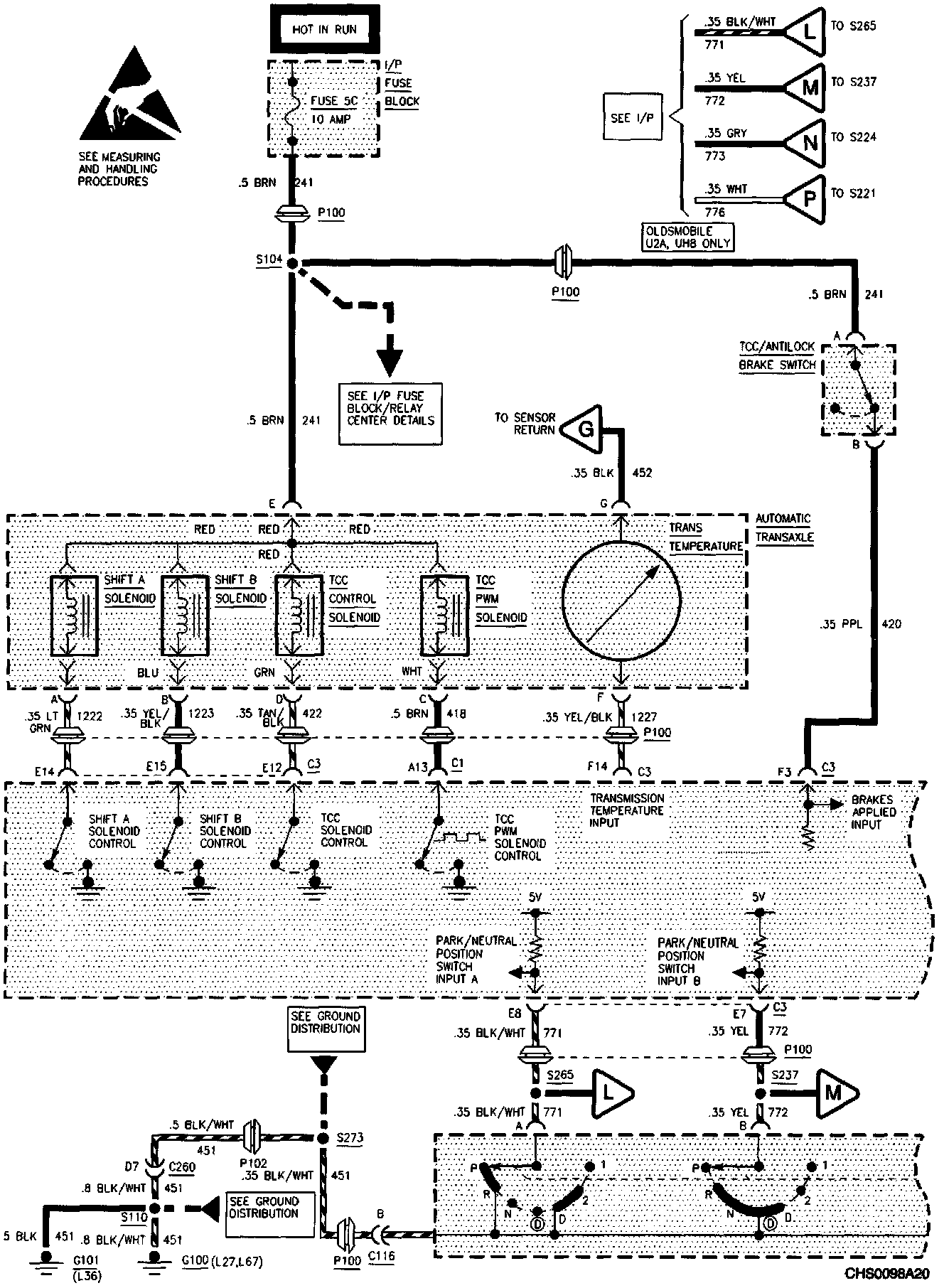

Automatic Transaxle And Emission Controls (Part 2 Of 2):
