Home >> Buick >> 1995 >> Park Avenue V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Diagrams >> Fuses >> I/P Fuse Block/Relay Center Fuses >> I/P Fuse Block Fuse 9A, 9B and 9D

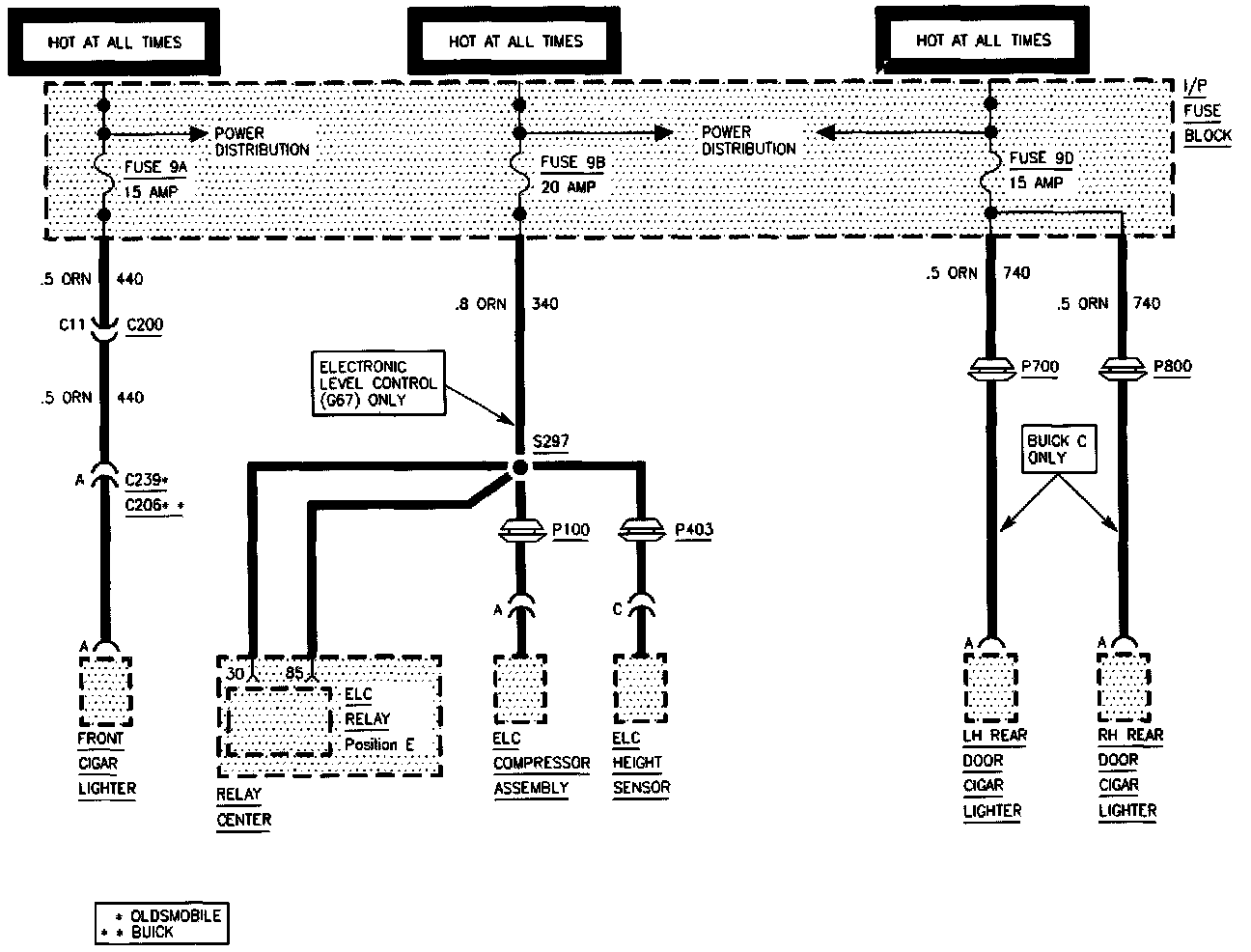

I/P Fuse Block Fuse 9A, 9B and 9D

I/P Fuse Block Fuse 9A, 9B And 9D:
