Wiring Diagrams

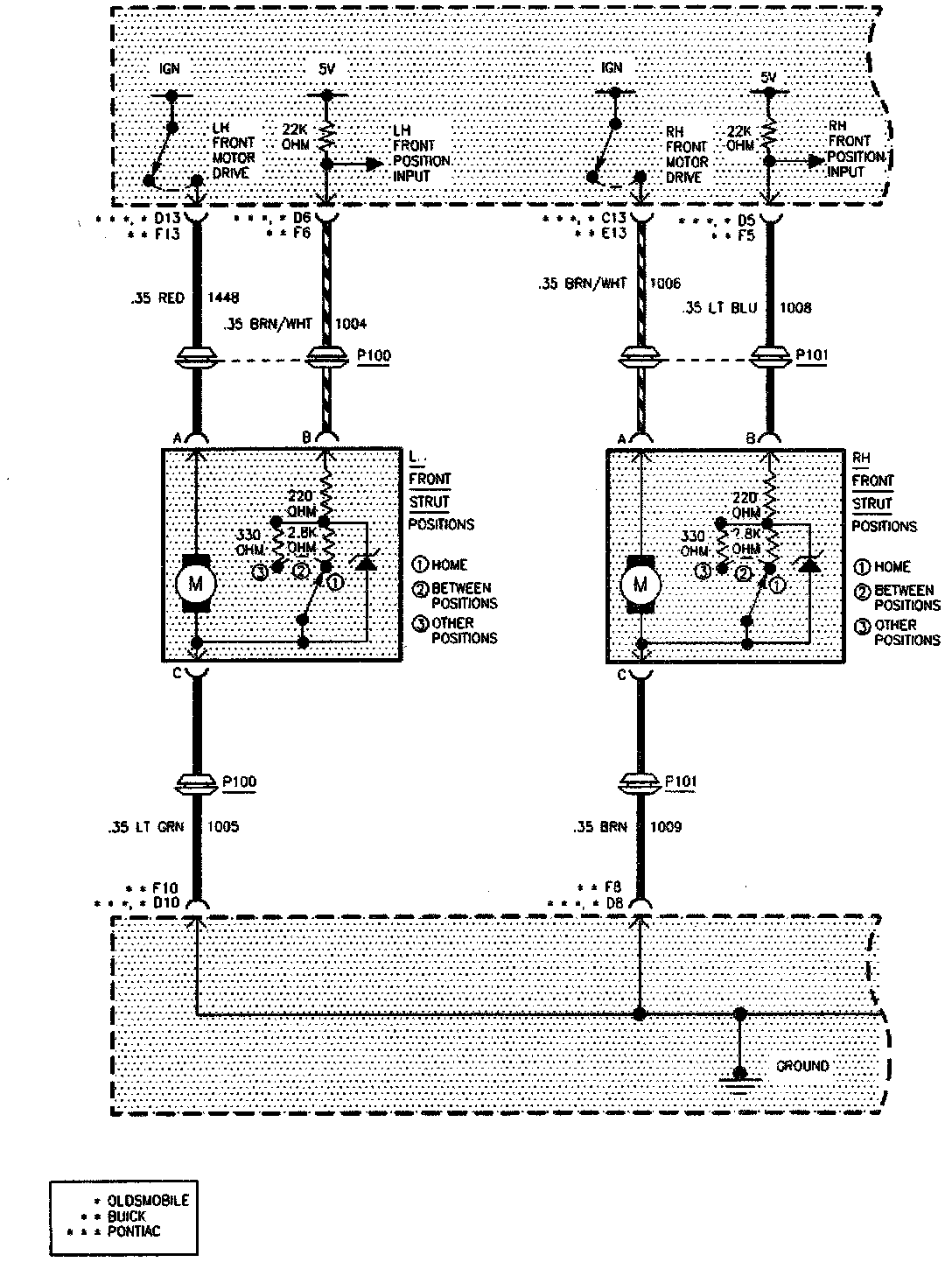

Computer Command Ride (CCR):




Computer Command Ride (CCR):




Computer Command Ride (CCR):




Computer Command Ride (CCR):
