Operation CHARM
: Car repair manuals for everyone.
Home
>>
Buick
>>
1995
>>
Park Avenue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster
>>
Harness Connector
Harness Connector

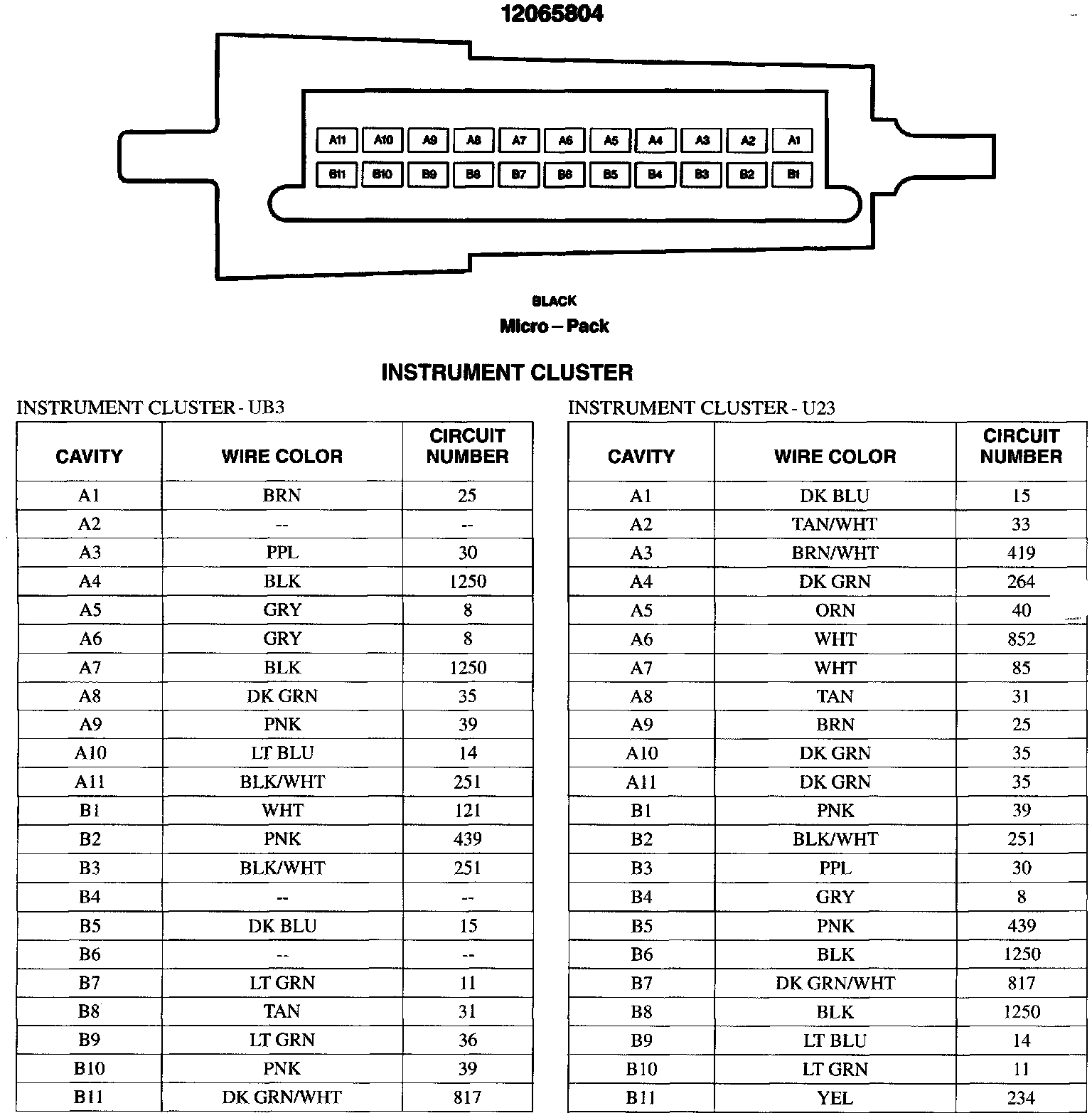

Instrument Cluster:
