System Check - Digital Cluster

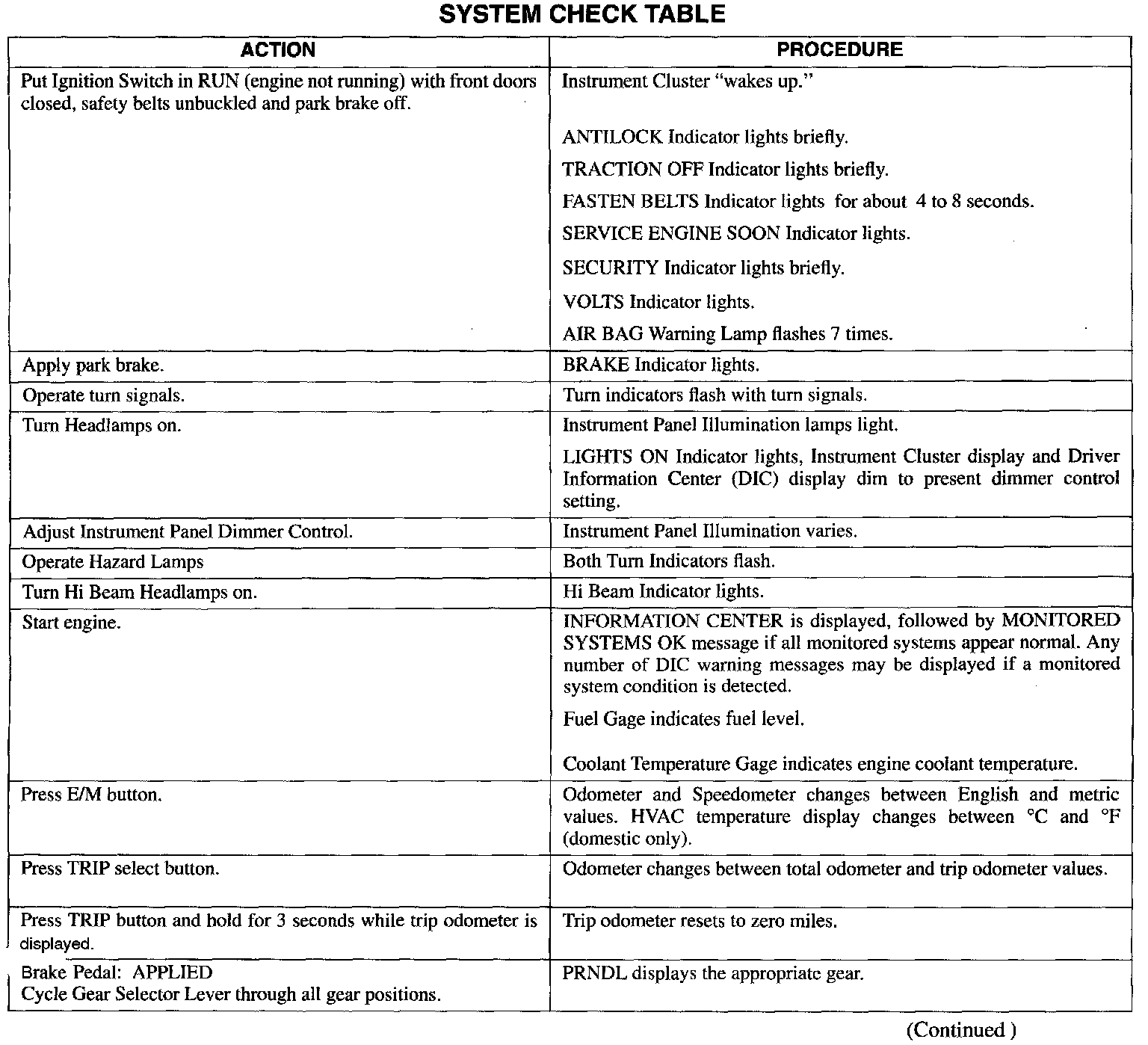

System Check Table (Part 1 Of 2):

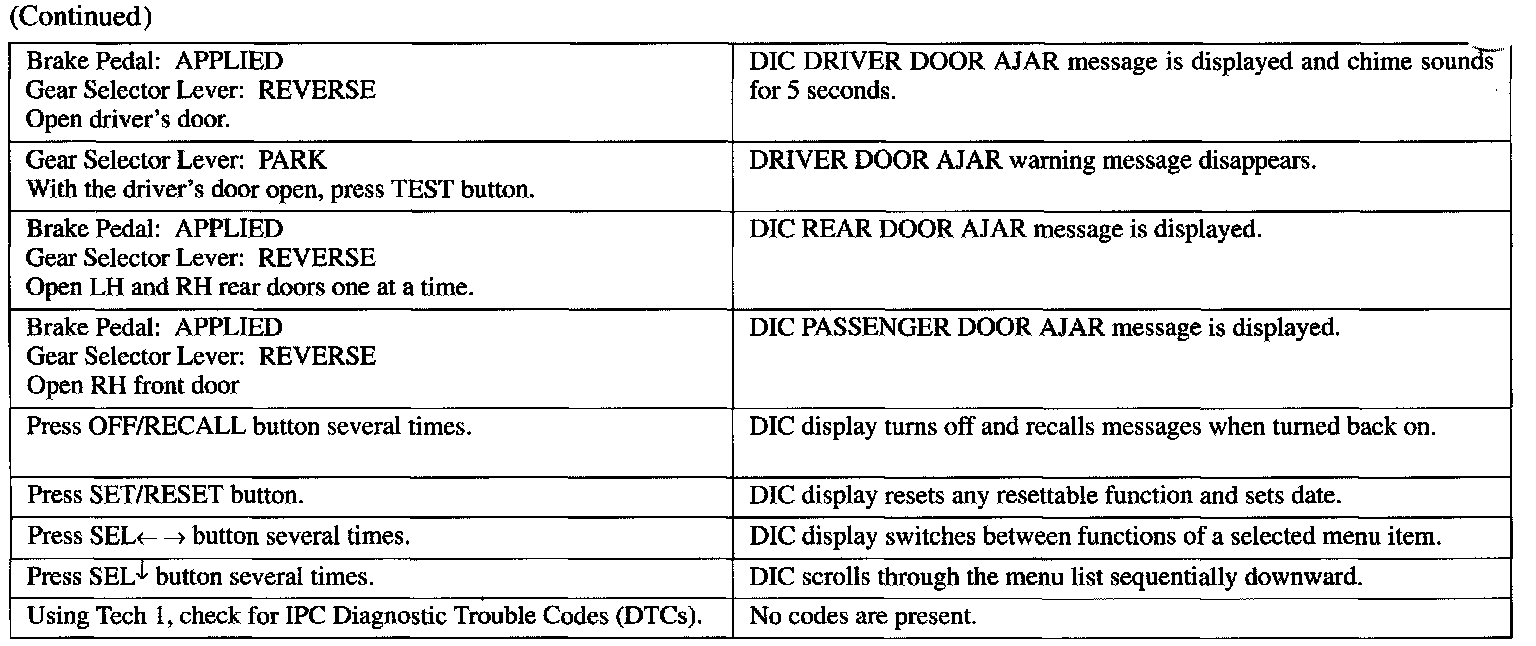

System Check Table (Part 2 Of 2):

^ If any Powertrain Control Module (PCM) Diagnostic Trouble Codes are set, refer to Computers and Control Systems. Testing and Inspection
^ Use System Check Table as a guide to normal operation. Refer to System Diagnosis given if other results occur.
^ Tests follow in System Diagnosis.
