Home >> Buick >> 1995 >> Park Avenue V6-3.8L VIN K >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> I/P Fuse Block/Relay Center Fuses >> I/P Fuse Block Fuse 6A

I/P Fuse Block Fuse 6A

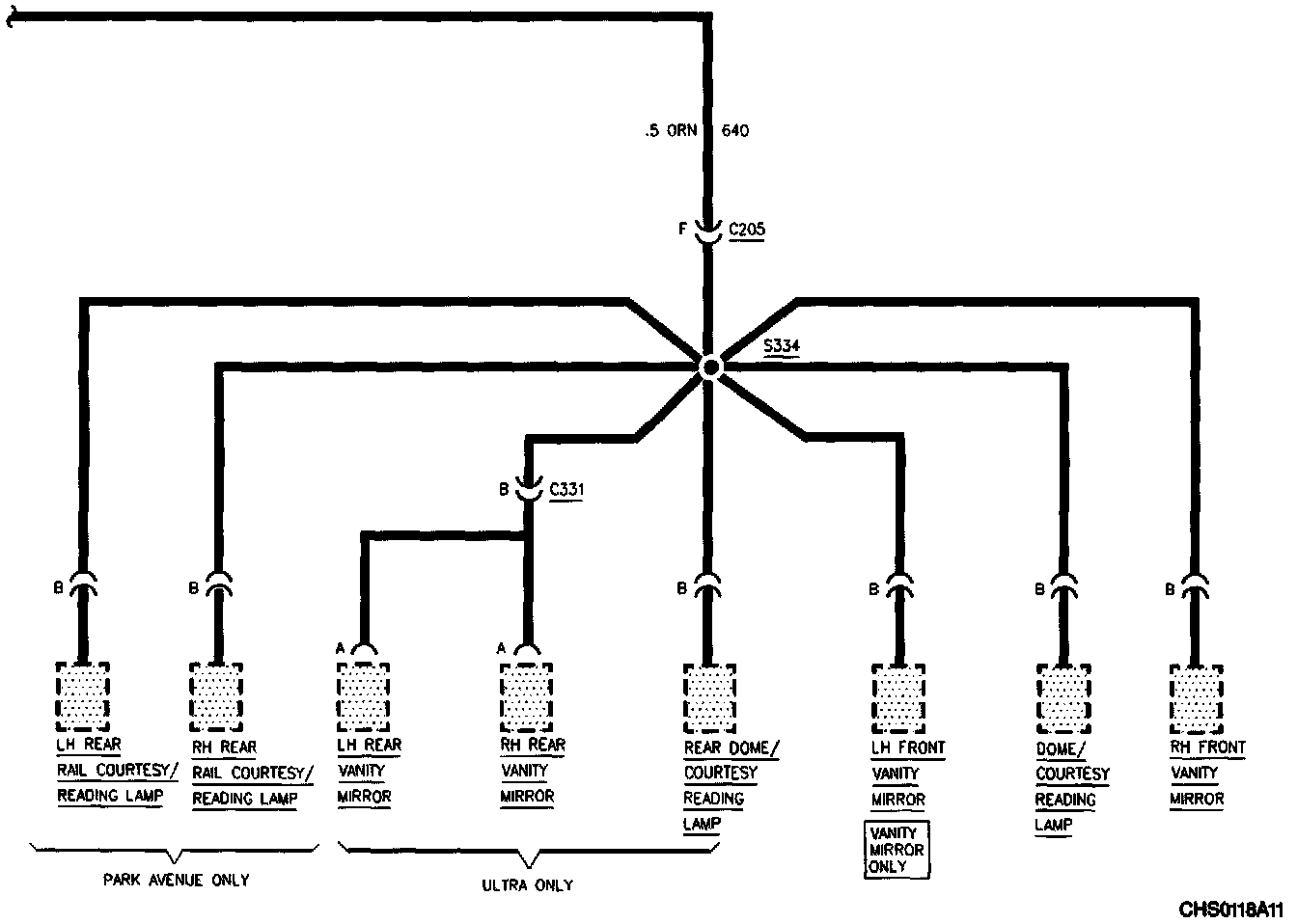

I/P Fuse Block Fuse 6A (Part 1 Of 2):



I/P Fuse Block Fuse 6A:
