Vacuum and Vapor Hose Diagrams

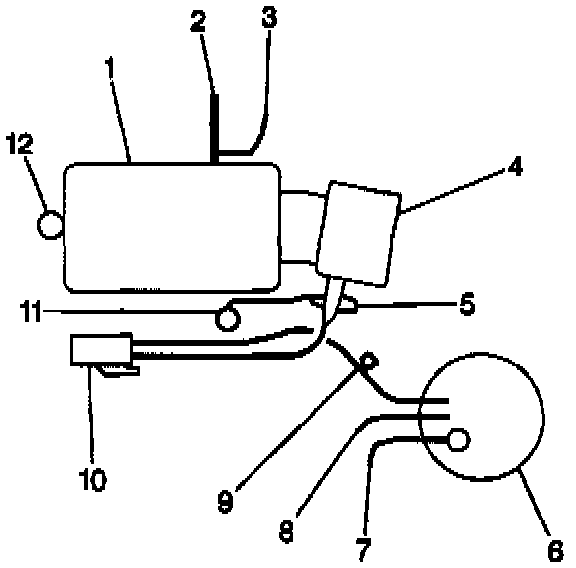

LEGEND
(1) Intake Manifold
(2) To Vacuum Brake Booster
(3) To Vacuum Storage Tank
(4) Throttle Body
(5) To Transaxle
(6) EVAP Canister
(7) To Fuel Tank
(8) To Vent Solenoid
(9) EVAP Service Port
(10) EVAP Canister Purge Valve
(11) Fuel Pressure Regulator
(12) PCV Valve
