Air Bags - Revised Ground Number (G201) Schematics

File In Section: 8 - Chassis/Body Electrical

Bulletin No.: 63-81-05

Date: February, 1996

SERVICE MANUAL UPDATE

Subject:
Sections 8A/9J - Revised Schematics to Correct Ground Number (G201)

Models:
1995 Buick LeSabre, Park Avenue
1995 Oldsmobile Eighty Eight, Ninety Eight
1995 Pontiac Bonneville

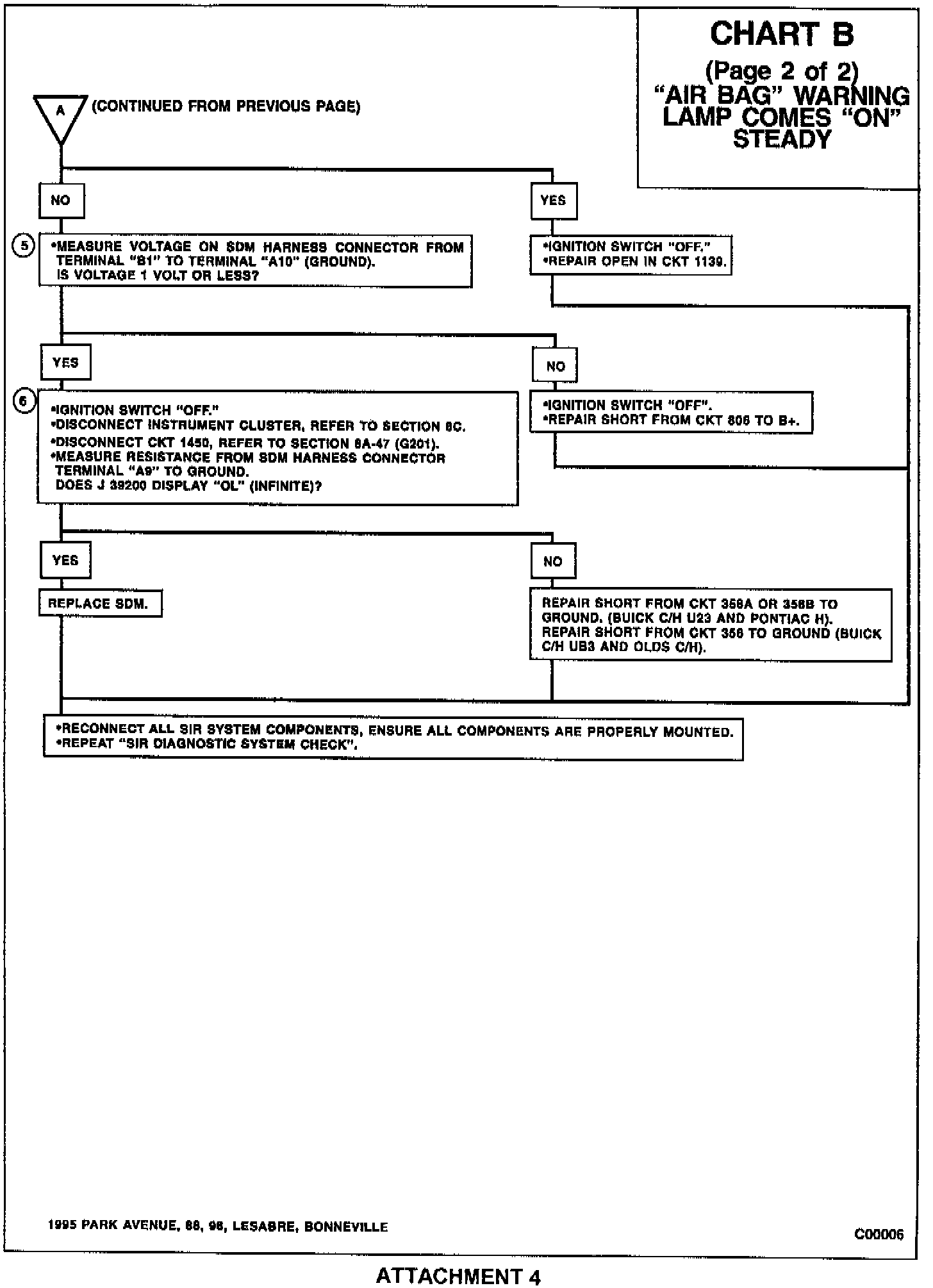

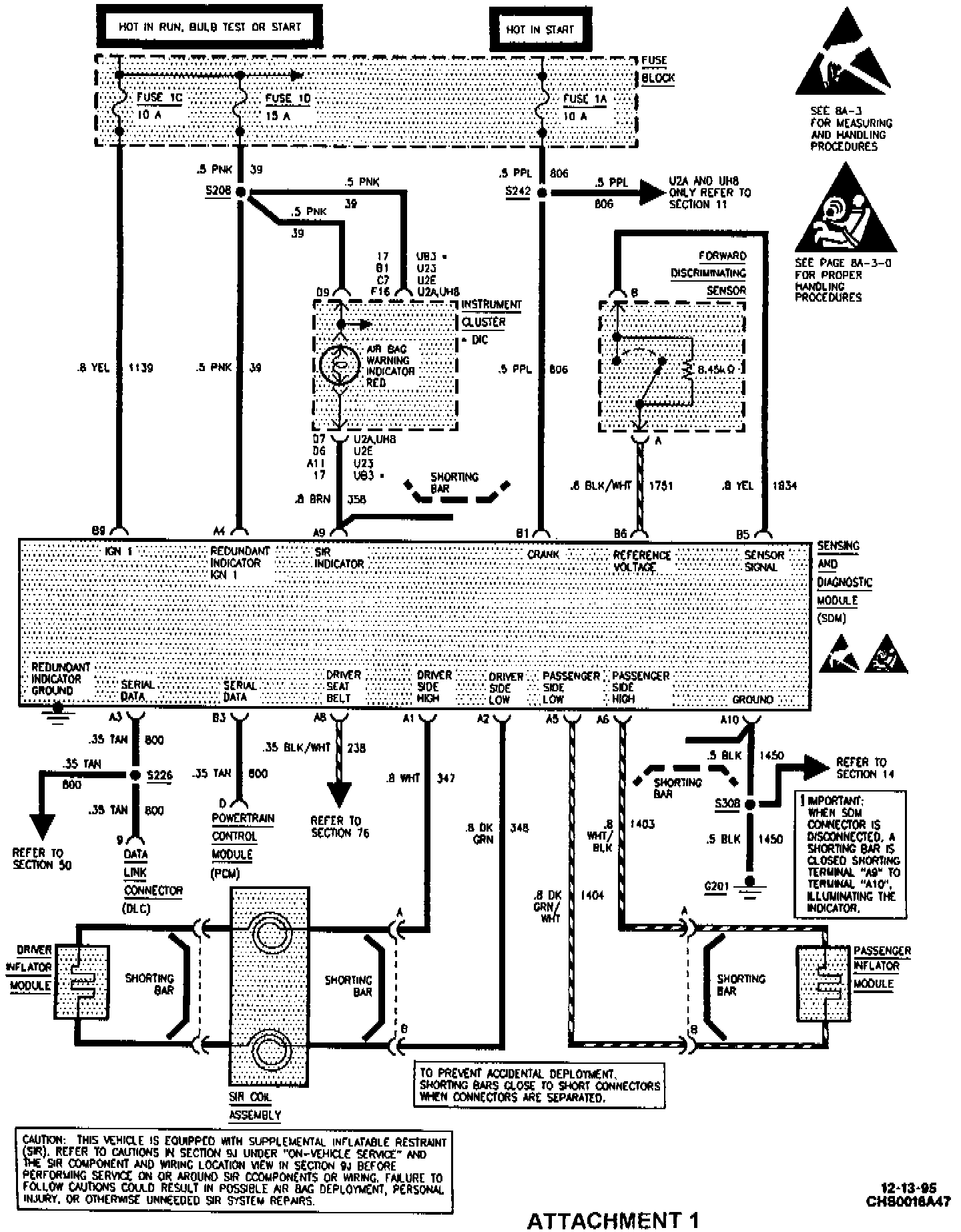

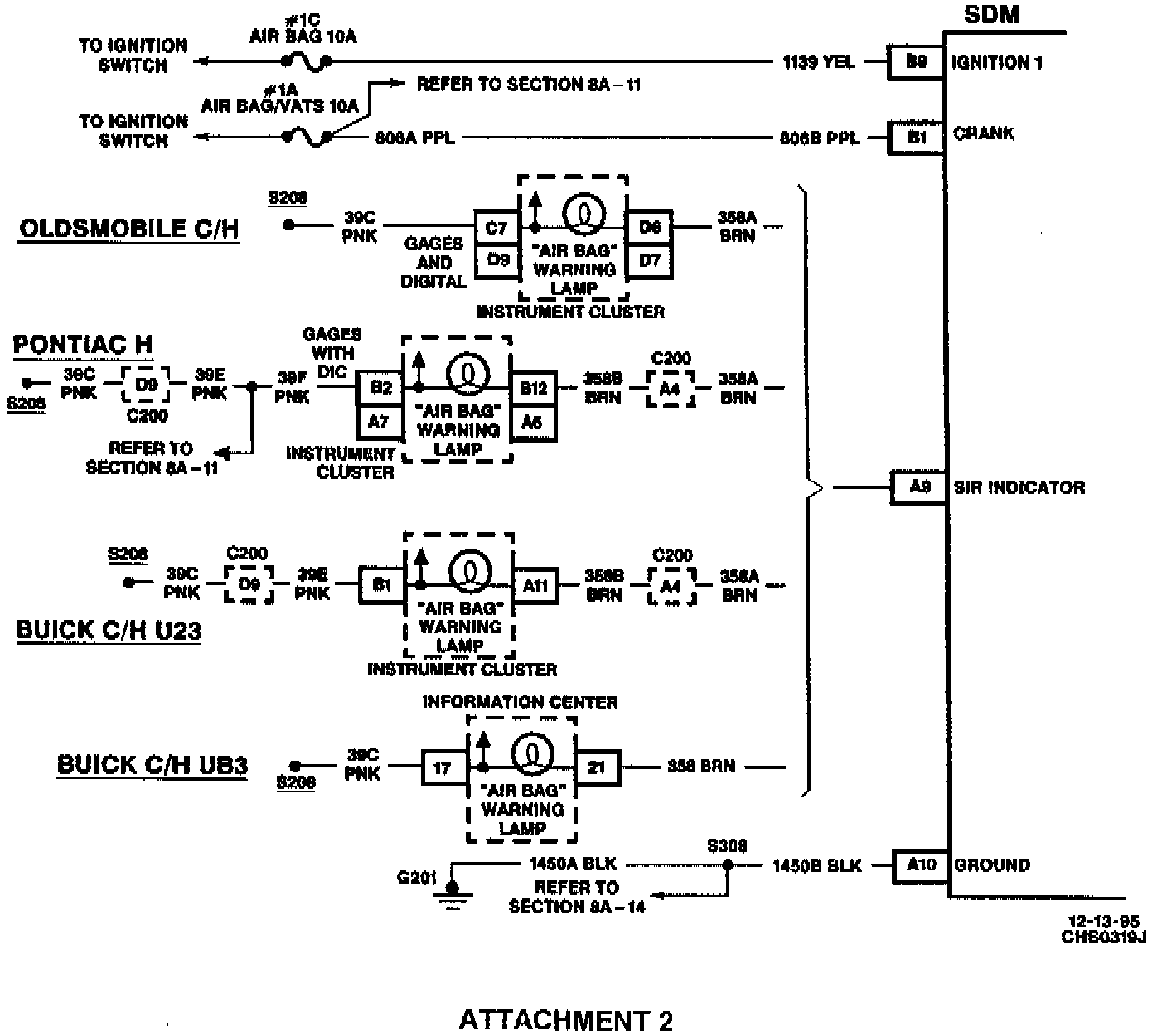

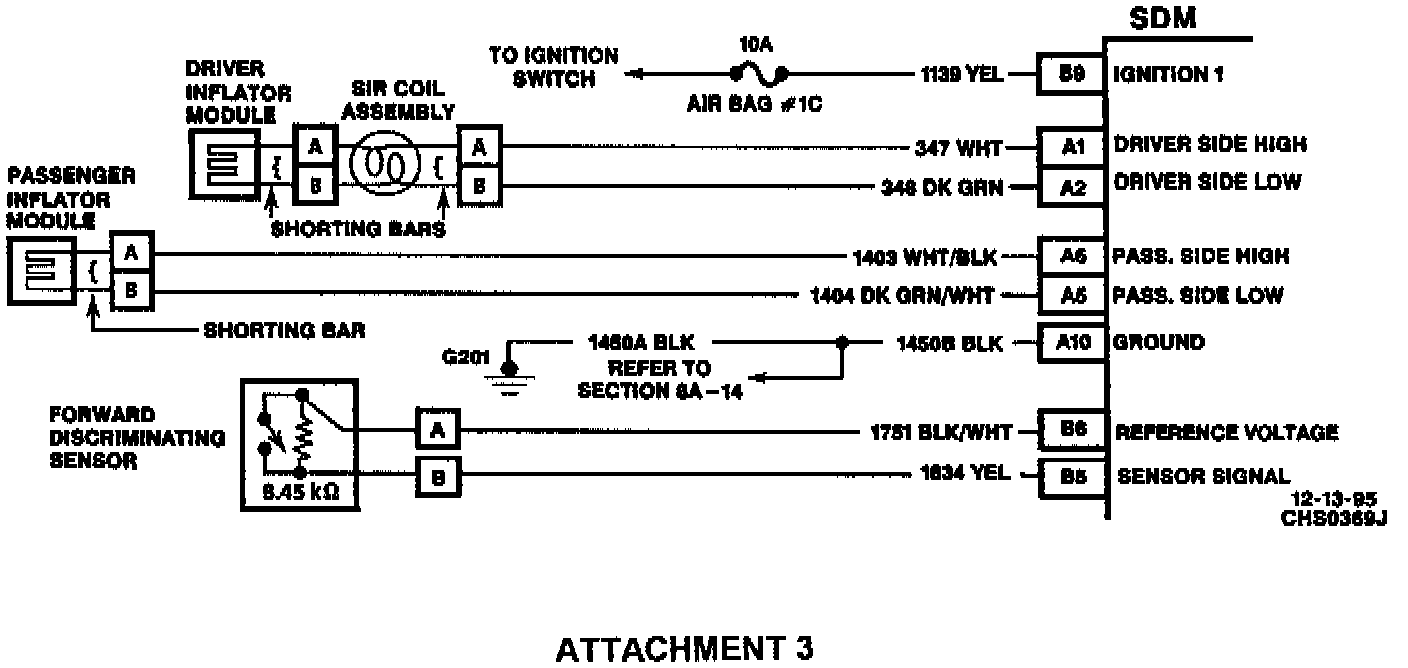

This bulletin updates schematics found in the Service Manual on page 8A-47 (SIR system schematic) and all of Section 9J (thumbnail schematics) with the correct ground number, G201. It also updates Step 6 of Chart B (Page 2 of 2) on page 9J-17 with the correct ground number, G201.














Please update the Service Manuals with Attachments 1-4 appropriately.
