Test A ABS Lamp on W/No DTC's Set

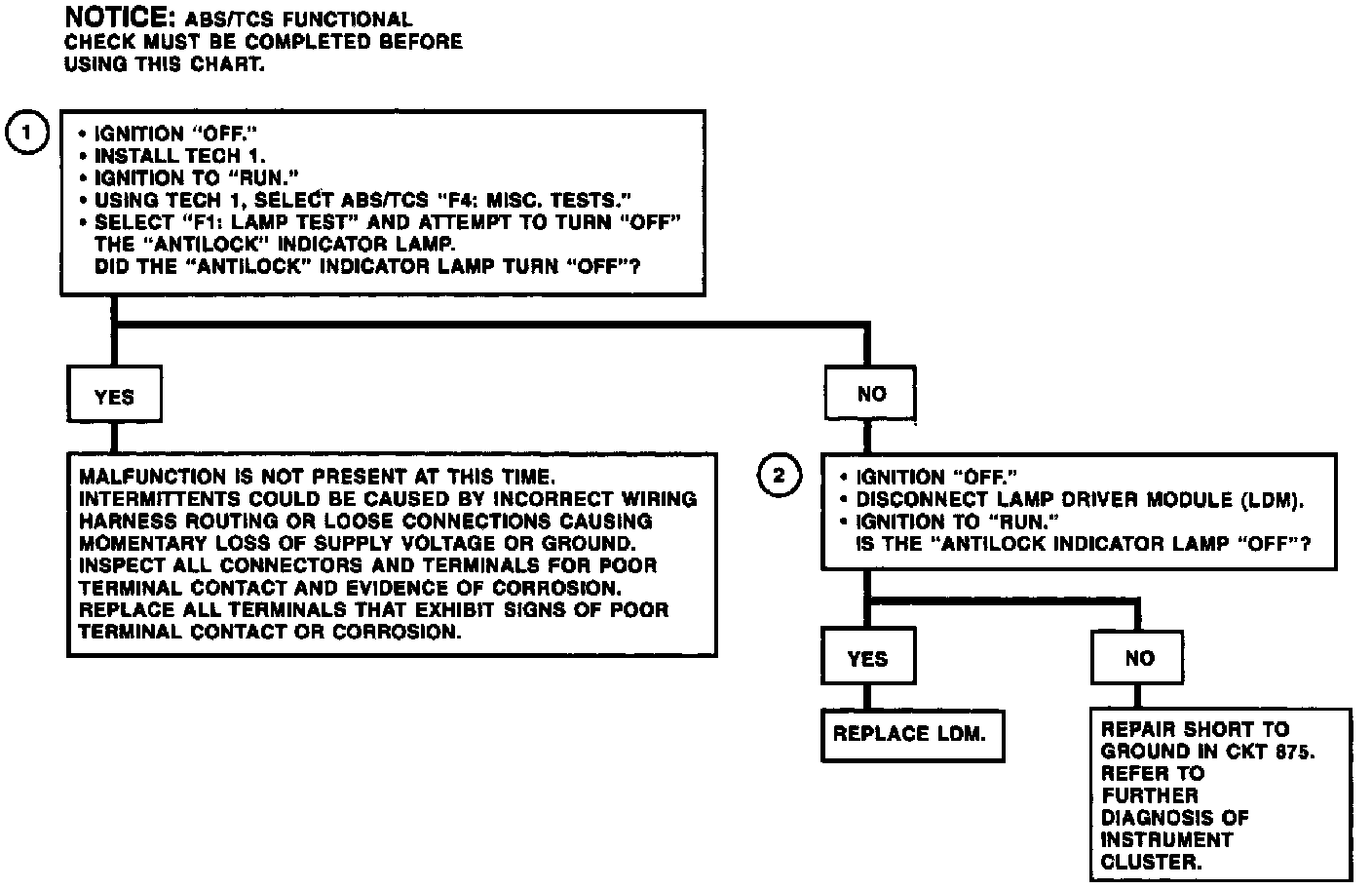

Chart A "Antilock" Indicator "On" With No DTC's Set:

Chart B "Antilock" Indicator "On" With No DTC's Set:

CHART TEST DESCRIPTION
Number(s) below refer to circled number(s) on the diagnostic chart.

1. Checks if the Tech 1 is able to turn the "ANTILOCK" indicator "OFF" using the Tech 1 ABS/TCS Lamp Test.

2. Checks if the LDM is causing the malfunction.
