Rear Hub and Bearing

REAR HUB/BEARING

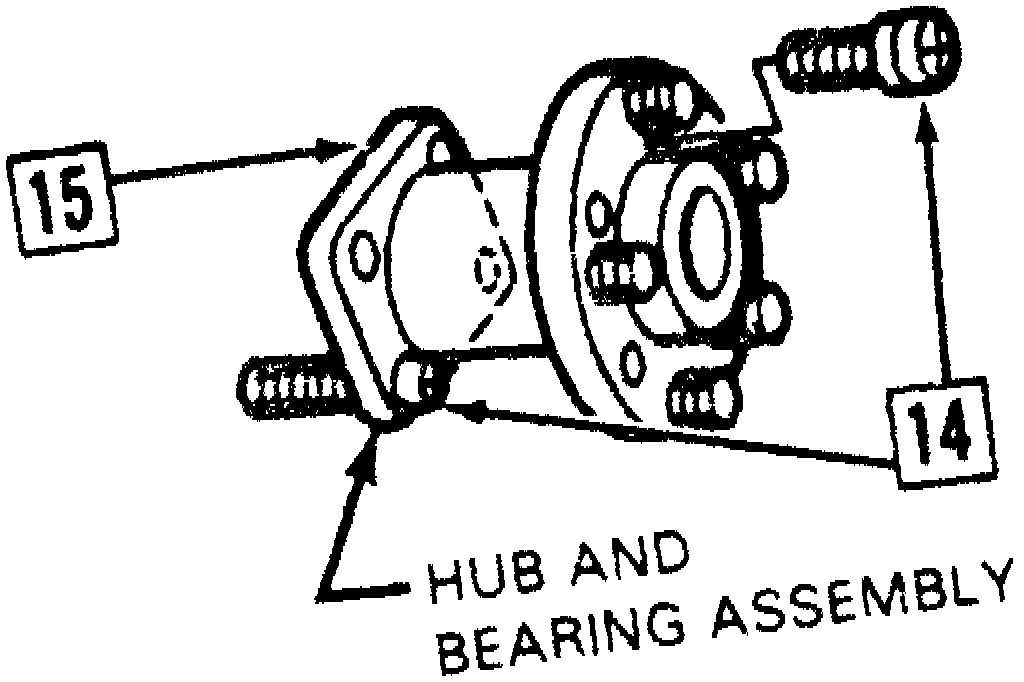

Fig. 2 Hub & Bearing Assembly:

1. Raise and support rear of vehicle.
2. Remove wheel assembly and brake drum. Do not hammer on drum as damage to bearing may occur.
3. Disconnect ABS sensor wire.
4. Remove four hub and bearing assembly to axle attaching bolts. These four bolts also support brake assembly. When removing these bolts, support brake assembly with a wire. Do not let brake line or ABS electrical wire support brake assembly.
5. Remove hub and bearing assembly from axle, Fig. 2.
6. Reverse procedure to install. Tighten attaching bolts to specifications.
