Engine Data

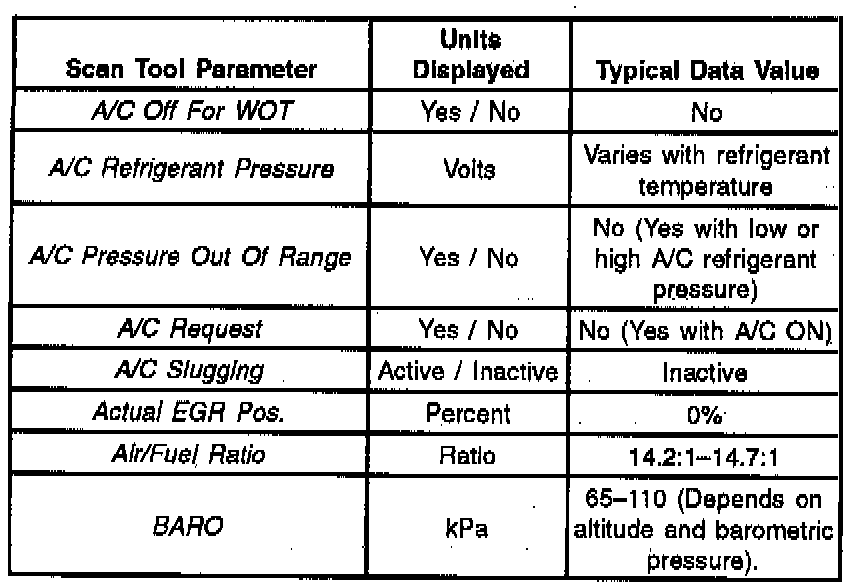

A/C OFF FOR WOT - BARO

Engine Scan Tool Data:

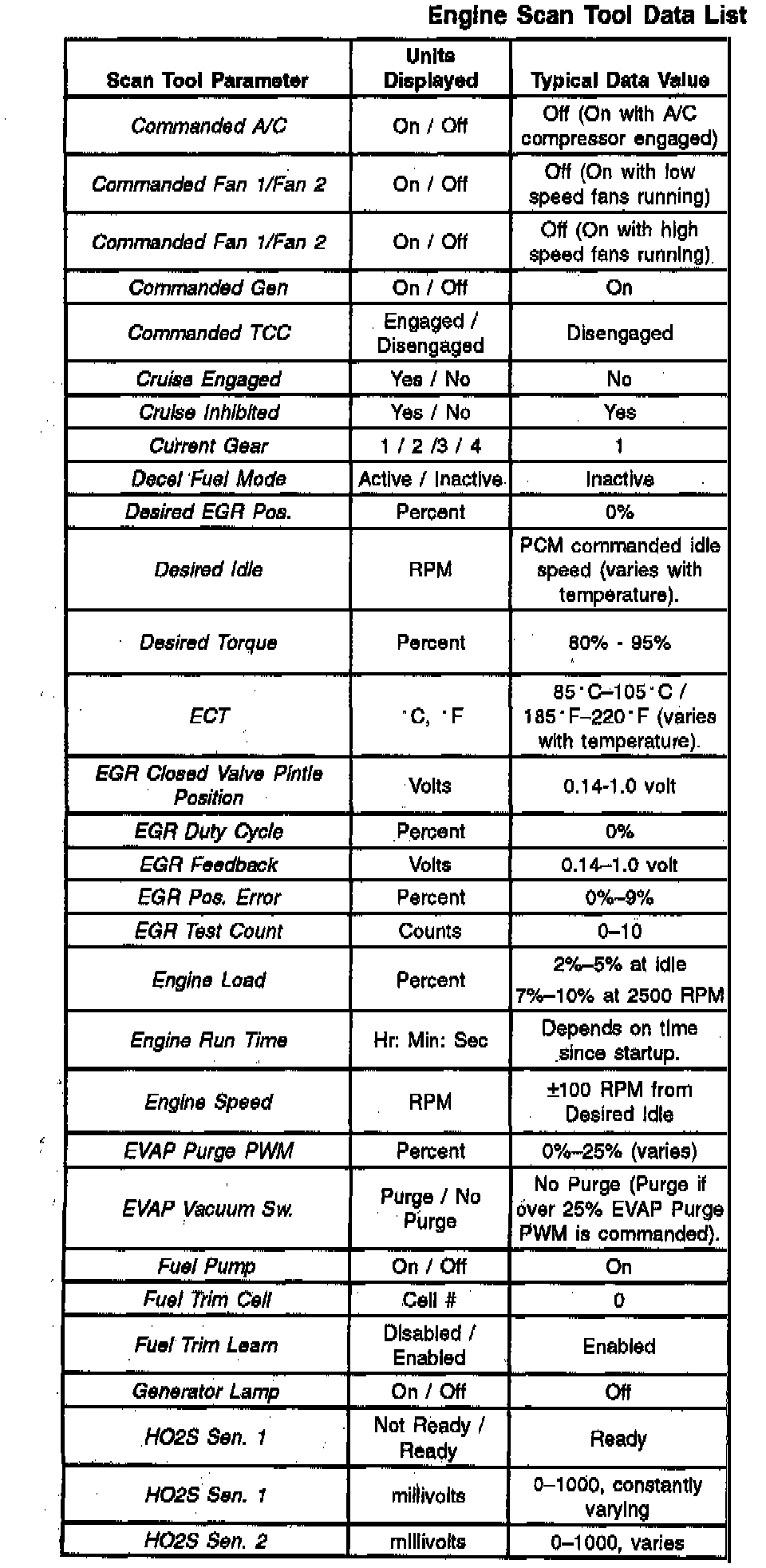

COMMANDED A/C - HO2S Sen. 2

Engine Scan Tool Data:

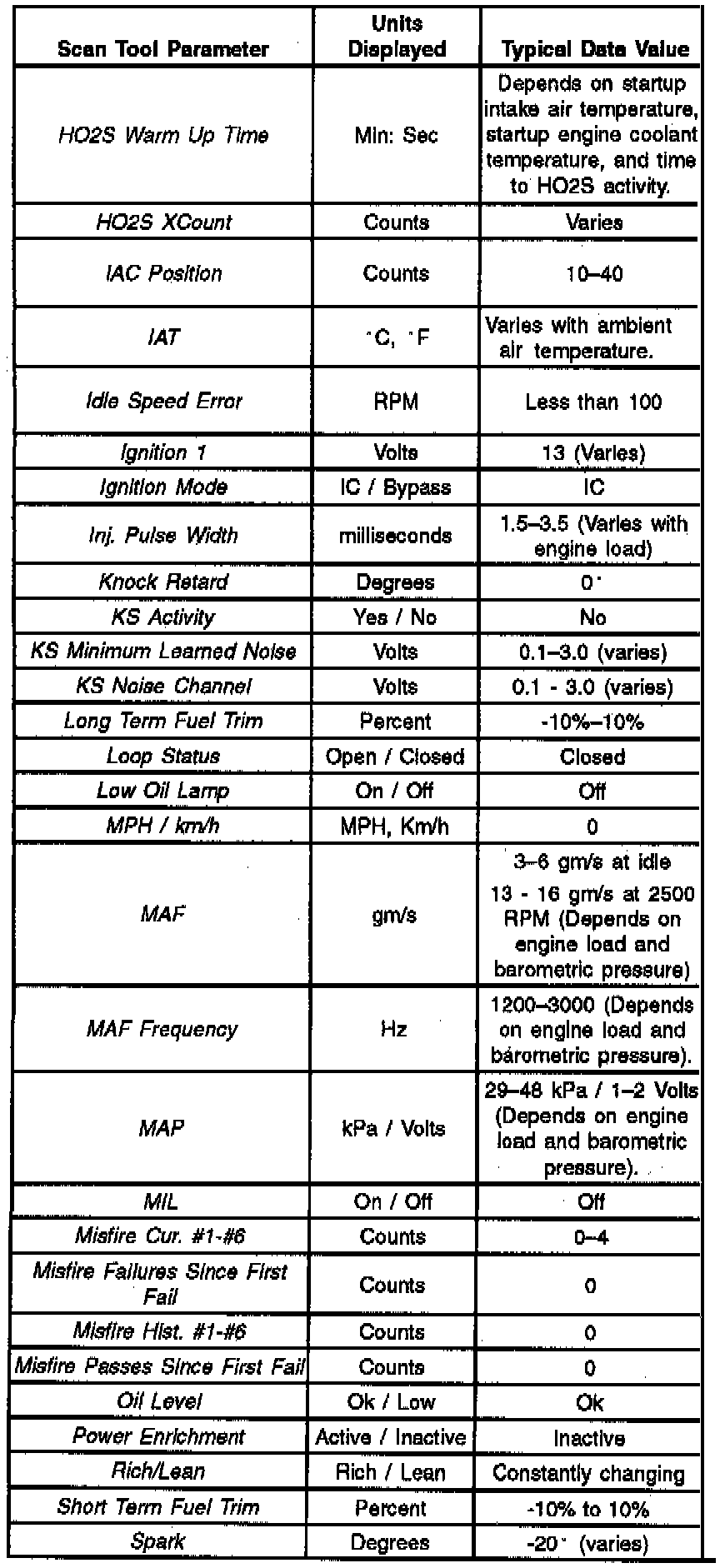

HO2S WARM UP TIME - SPARK

Engine Scan Tool Data:

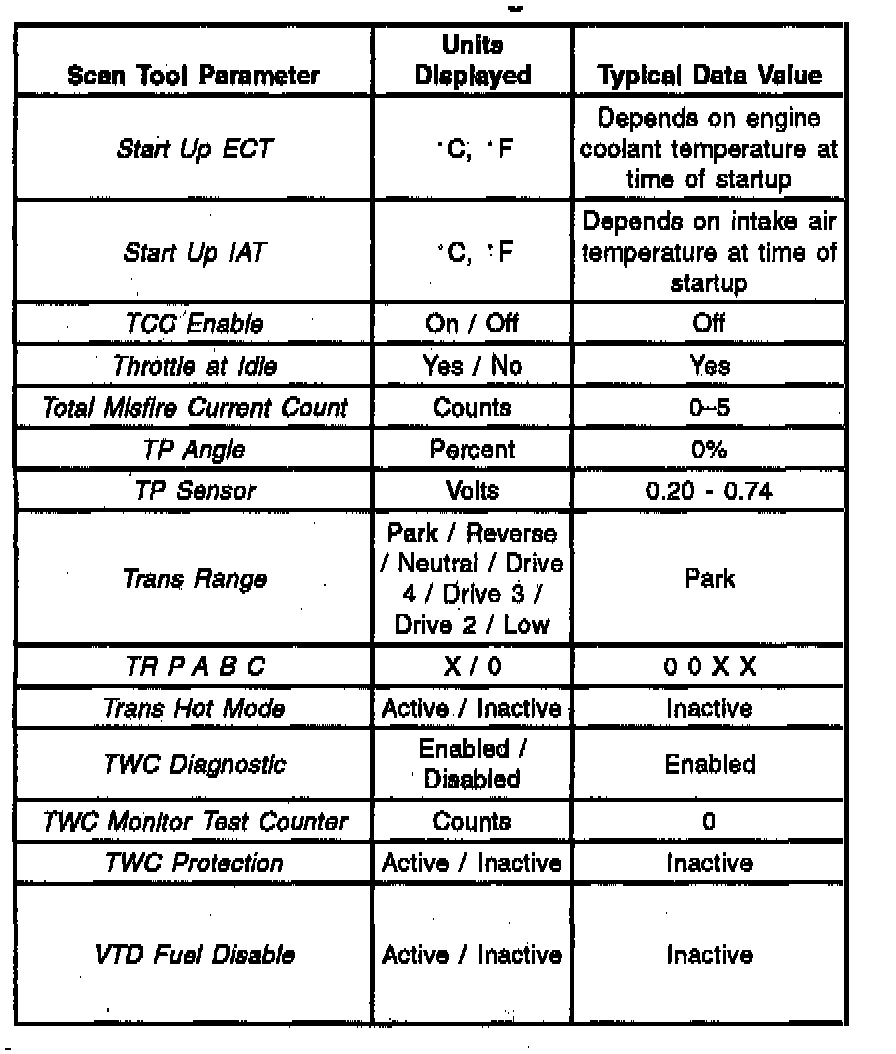

START UP ECT - VTD FUEL DISABLE

Engine Scan Tool Data:
