Electrical Diagrams

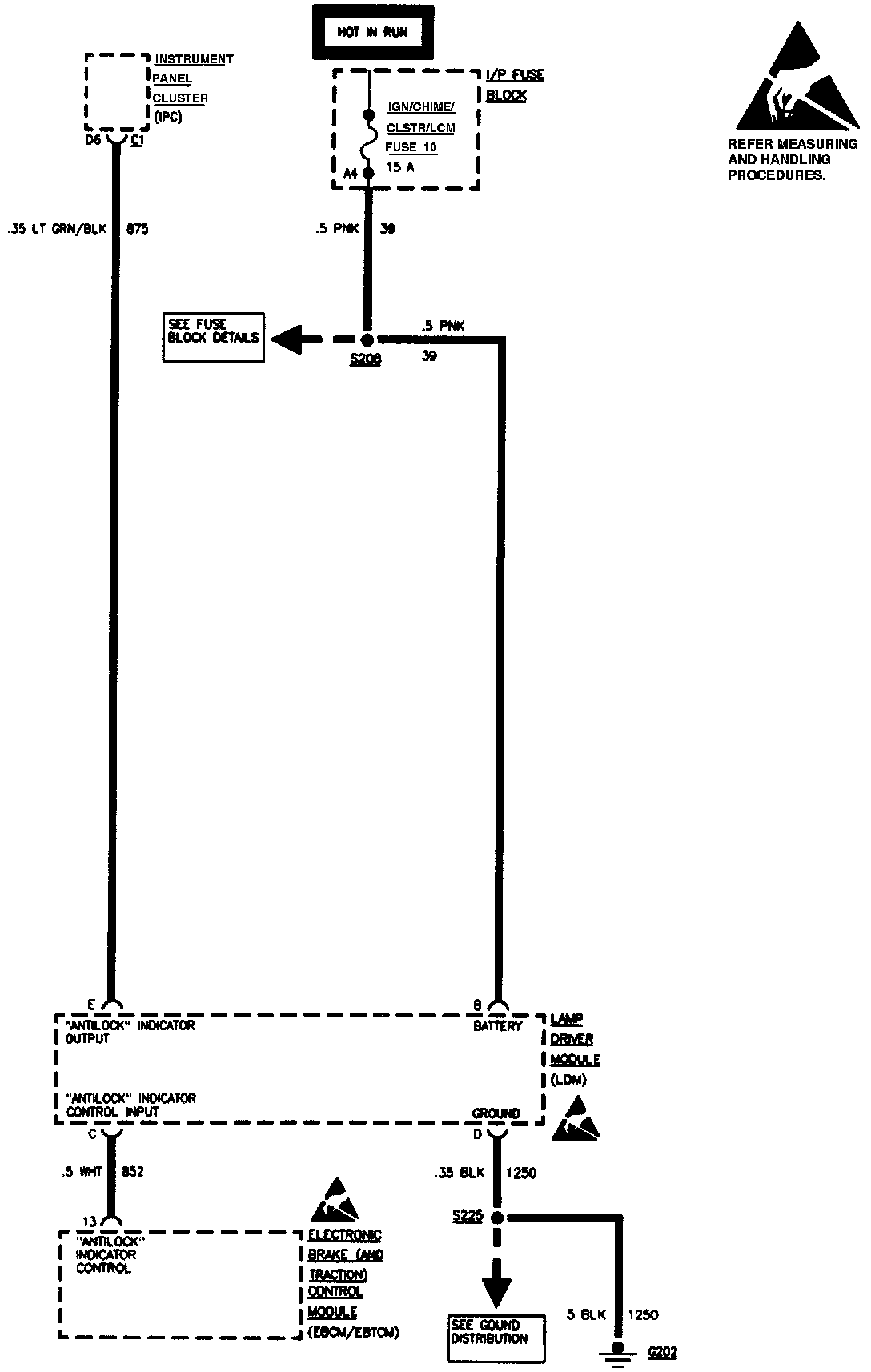

Antilock Brake Or Traction Control (Part 1 Of 6):

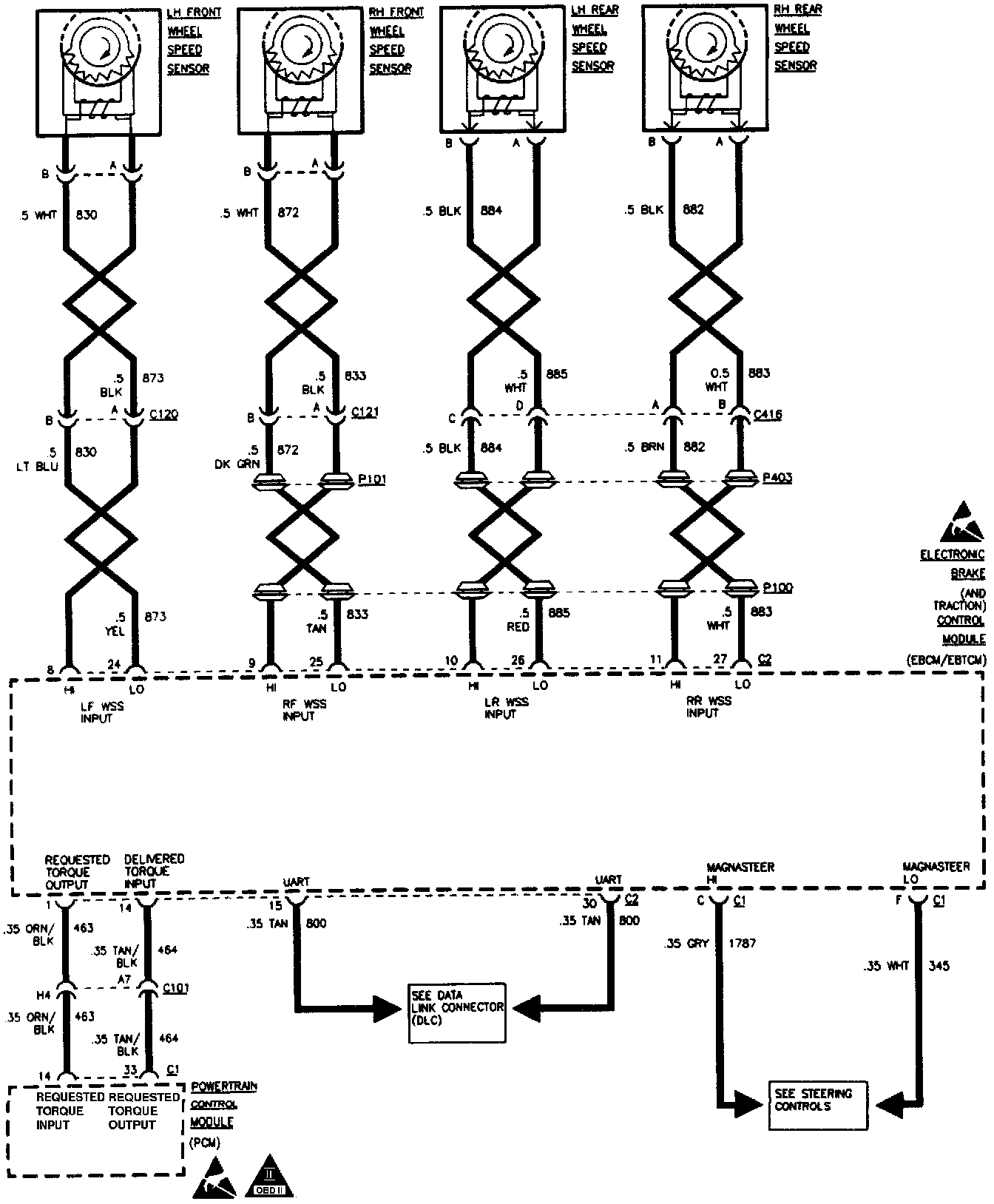

Antilock Brake Or Traction Control (Part 2 Of 6):

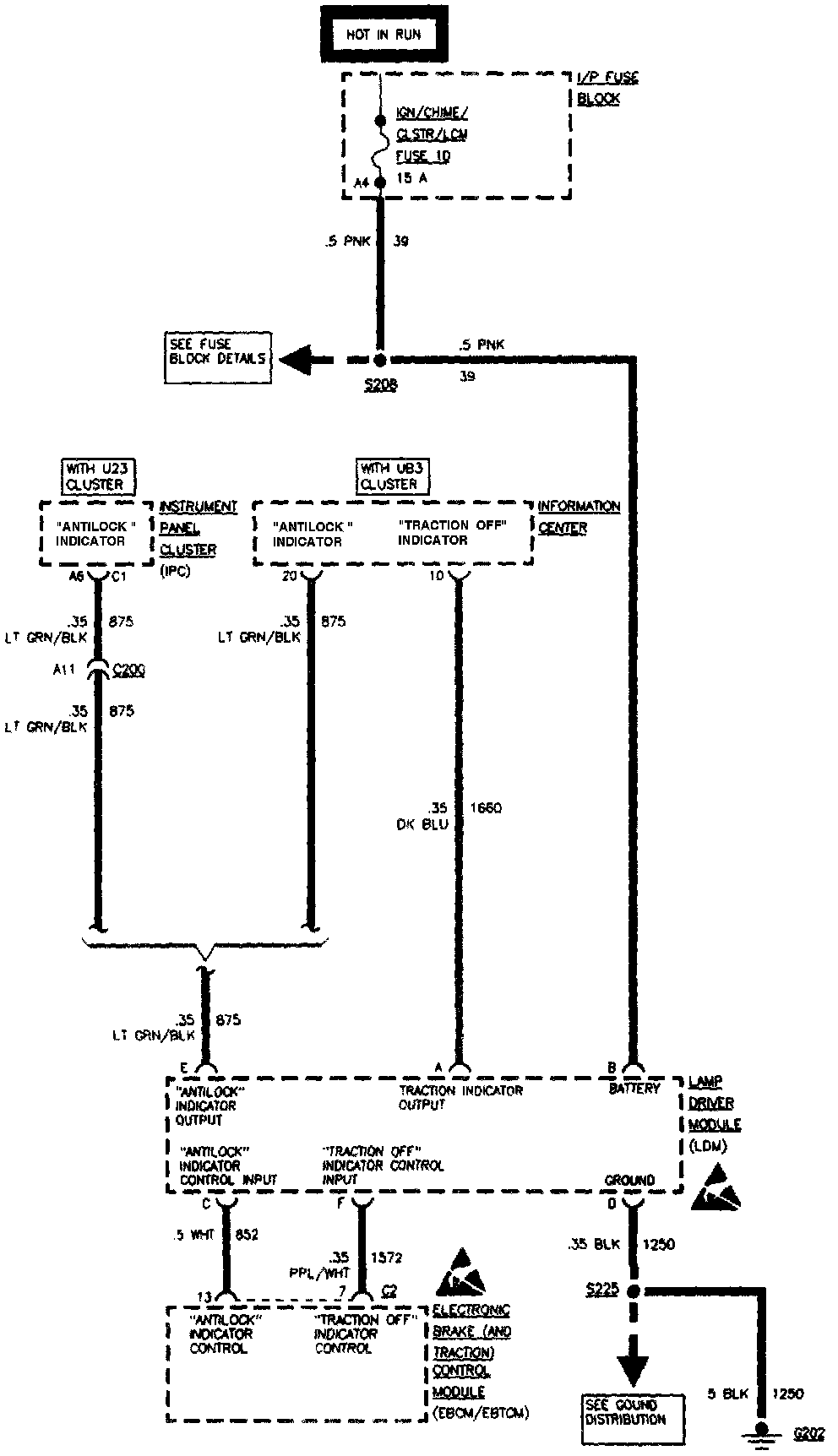

Antilock Brake Or Traction Control (Part 3 Of 6):

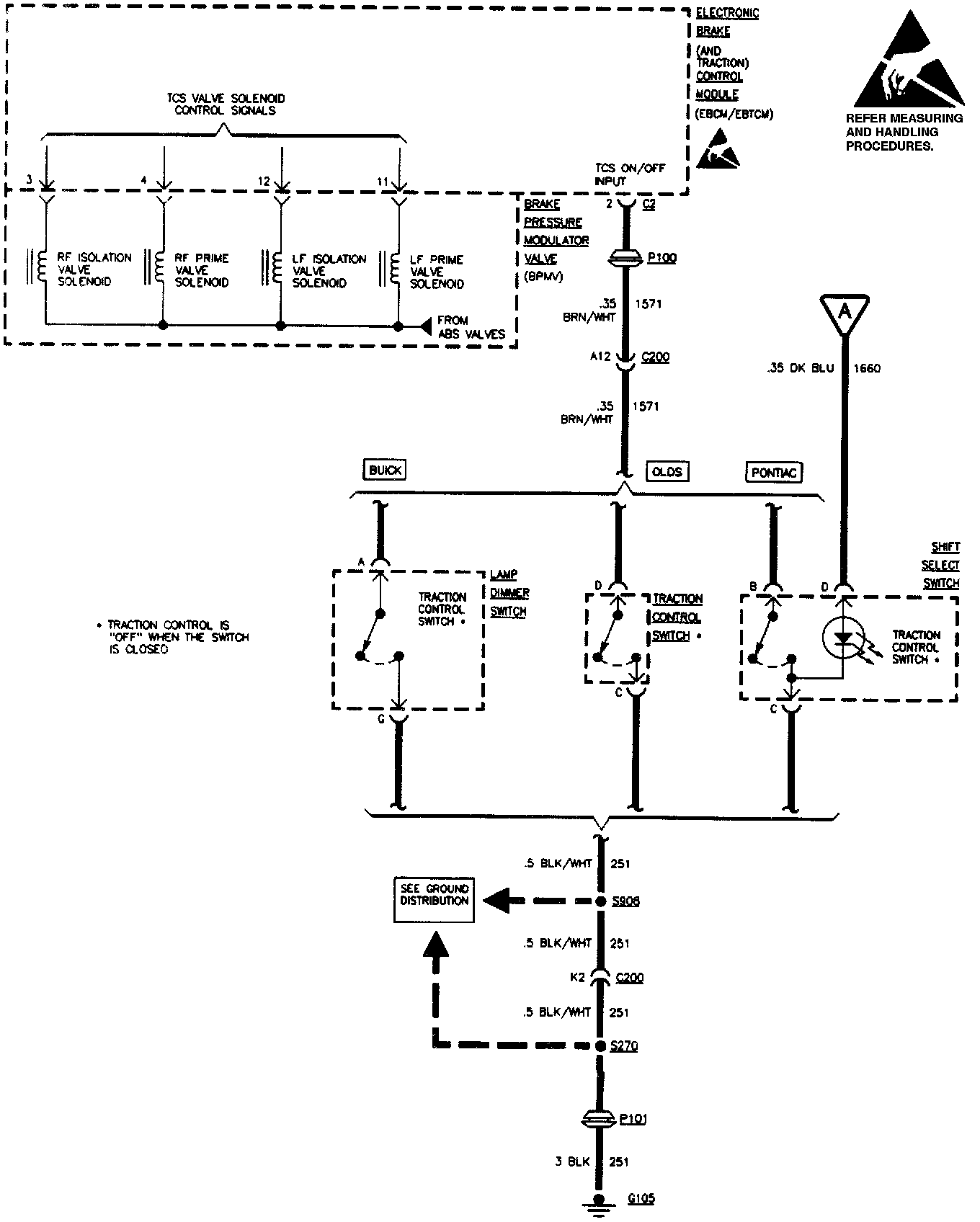

Antilock Brake Or Traction Control (Part 4 Of 6):




Antilock Brake Or Traction Control (Part 5 Of 6):




Antilock Brake Or Traction Control (Part 6 Of 6):
