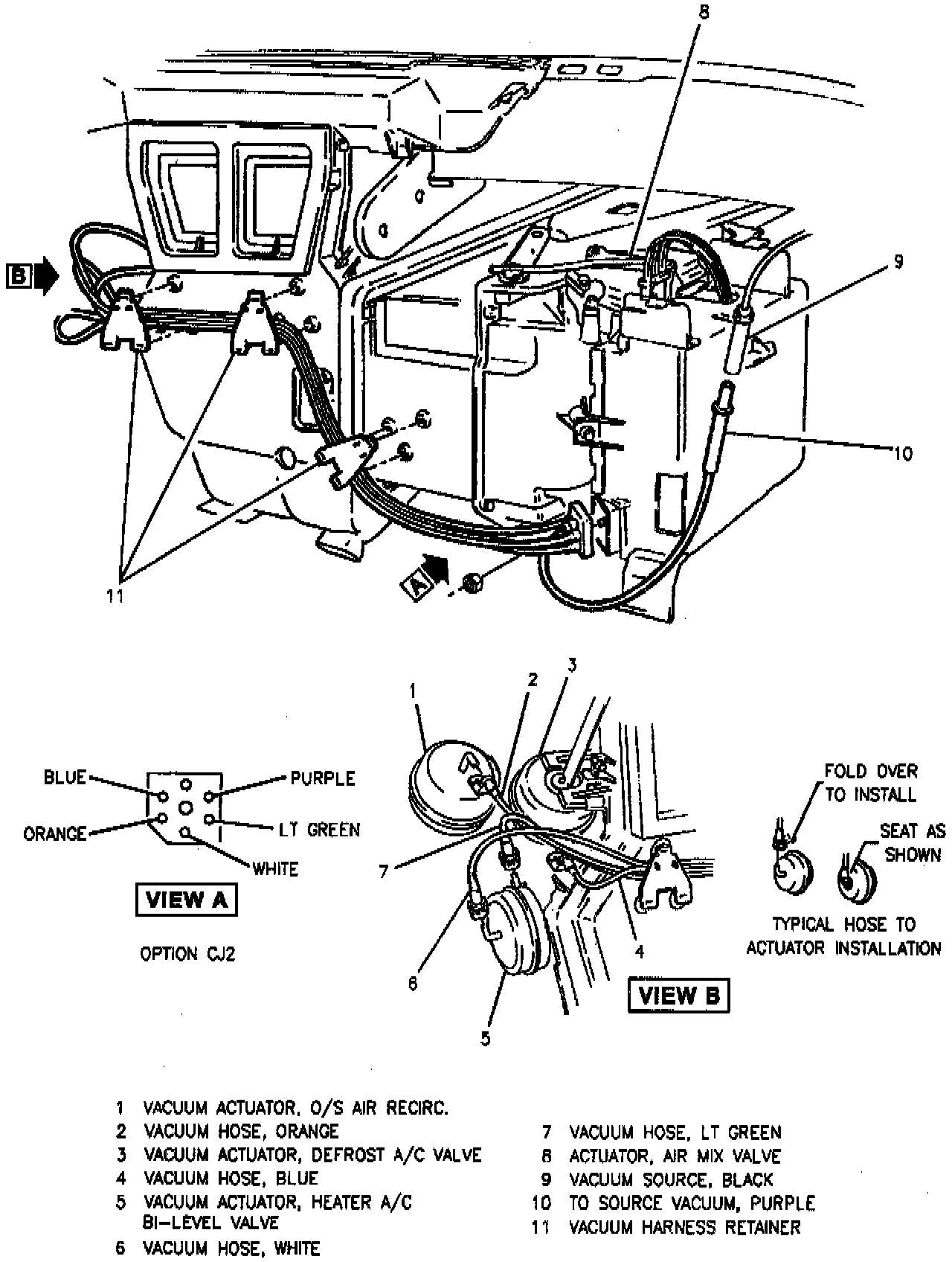

Outside Air/Recirc Valve

Vacuum Harness - Passenger Compartment:

Remove or Disconnect

1. Left sound insulator.
2. Vacuum hose from actuator.
3. Unclip from air inlet and disengage from valve.

Install or Connect

1. Engage actuator to valve and clip to air inlet
2. Vacuum hose to actuator.
3. Left sound insulator.
