Wiper Park Switch Assembly Replacement

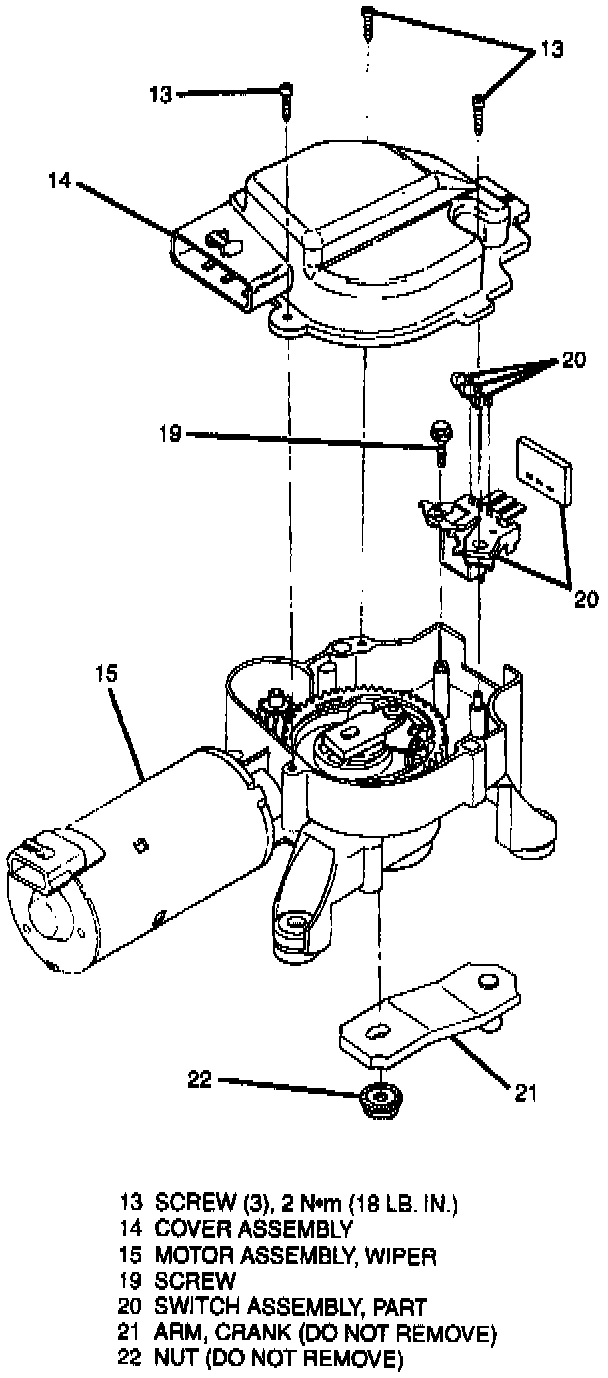

Description:

Remove or Disconnect
1. Wiper motor assembly.
2. Wiper motor cover assembly.
Important
^ If wiper motor assembly (15) is in park position, operate wiper motor as required to remove pawl from relay slot.

3. Screw (19) and park switch assembly (20).

Install or Connect
1. New park switch assembly (20) and screw (19).

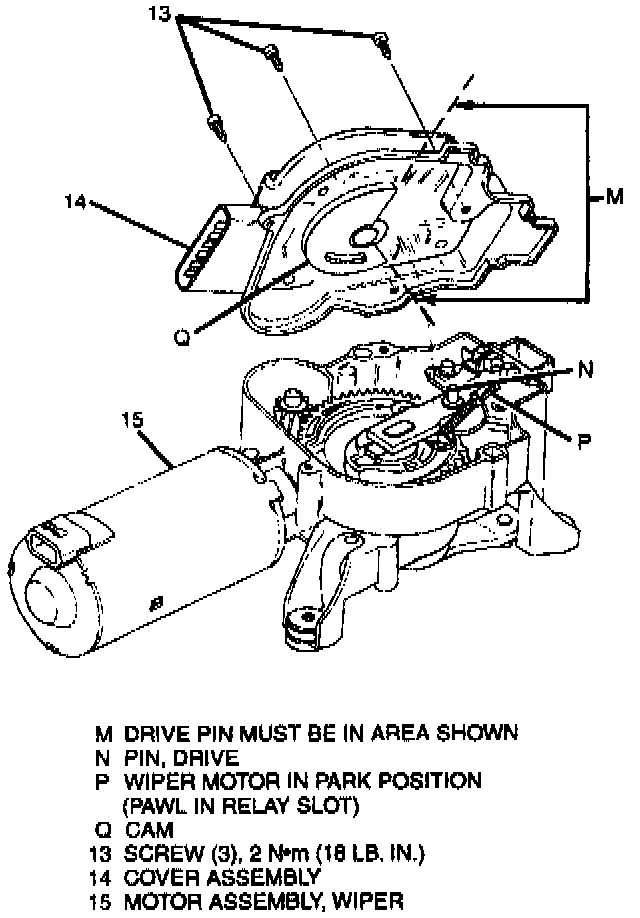

2. Operate wiper motor assembly (15) back into park position (pawl in relay slot).
3. Wiper motor cover assembly (14). Follow Wiper Motor Cover Assembly Replacement procedure carefully. Refer to Wiper Motor / Service and Repair. Service and Repair
4. Wiper motor assembly.
