Control Valve Body and Gaskets Assemble

Important: Some models are assembled with stamped steel control valve body covers. Some models are assembled with cast aluminum covers that have machined surfaces and threaded bolt holes.





1. Inspect the control valve body cover for the following:
Stamped Steel
^ Dents to the gasket sealing surfaces
^ Dents anywhere that may cause interference during assembly
^ Flatness of the gasket sealing surfaces





2. Inspect the control valve body cover for the following:
Cast Aluminum
^ Cracks, nicks, or other damage to the gasket seal surfaces
^ Bolt holes for damaged or stripped threads
^ Cracks or porosity in the casting
3. Inspect the valve body cover gaskets for nicks or other damage. If the gaskets for the aluminum valve body cover are not damaged then the gaskets are reusable.

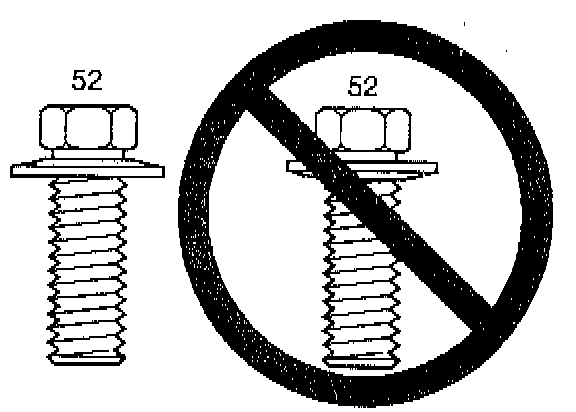

Important: Do not use bolts with inverted conical washers when you assemble the stamped steel control valve body cover.





4. Inspect the bolts (52) for inverted washers.

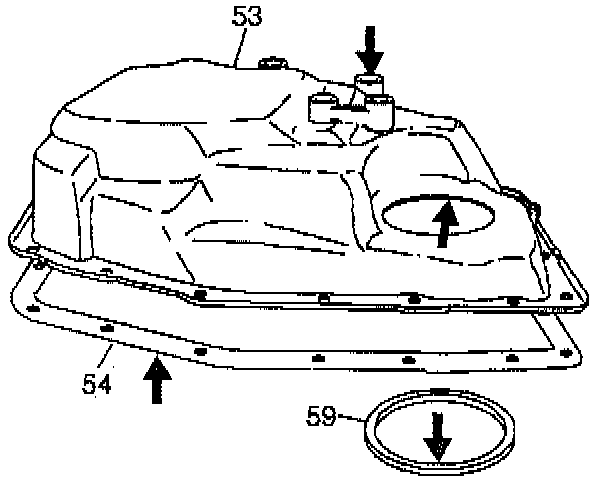

5. Affix the cover gasket onto the transmission case assembly.
Steel Cover Valve Body

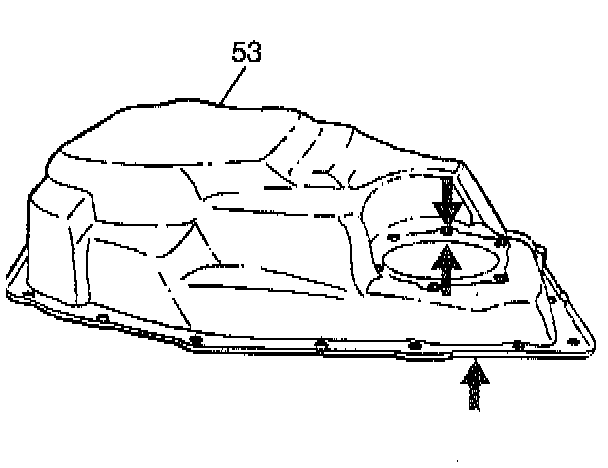

^ Affix the steel cover inner cover gasket onto the case cover
^ Position the steel cover onto the case

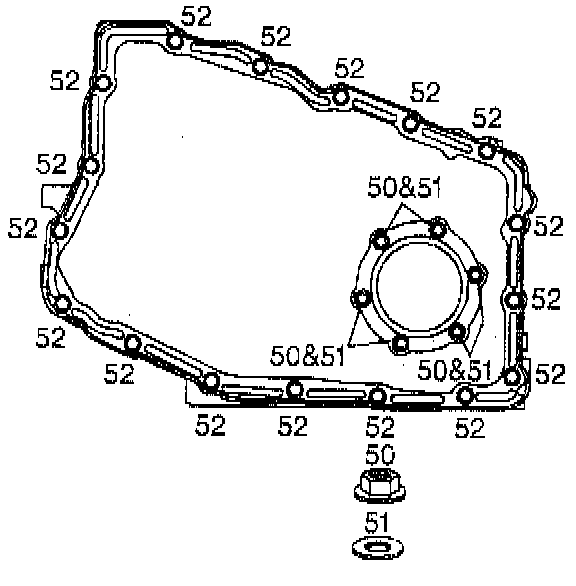

^ Finger start the bolts and nuts

Tighten
Tighten the bolts to 11 Nm (98 inch lbs.).

Tighten
Tighten the nuts to 8 Nm (71 inch lbs.).





6. Affix the cover gasket onto the transmission case assembly.
Aluminum Valve Body
^ Affix the inner valve body cover gasket onto the case cover
^ Position the aluminum cover onto the case

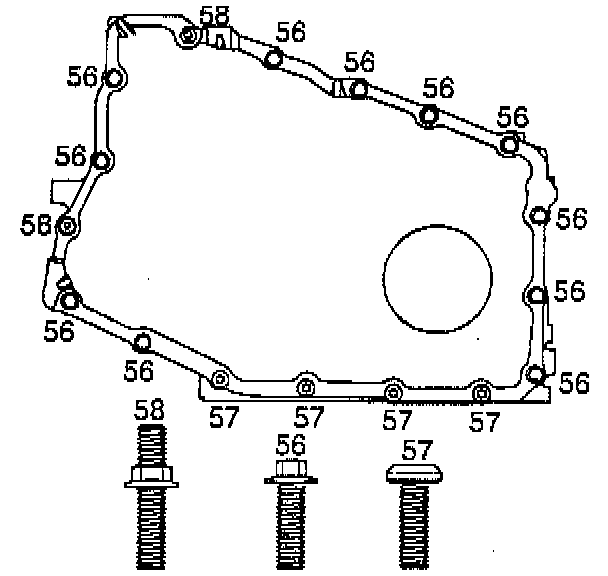

^ Finger start the bolts in the positions shown

Tighten
Tighten the bolts to 11 Nm (98 inch lbs.).
