Second Clutch Housing Retainer/Ball Disassemble






Important: If the ball check valve assembly (618) does not leak, do not remove the assembly.

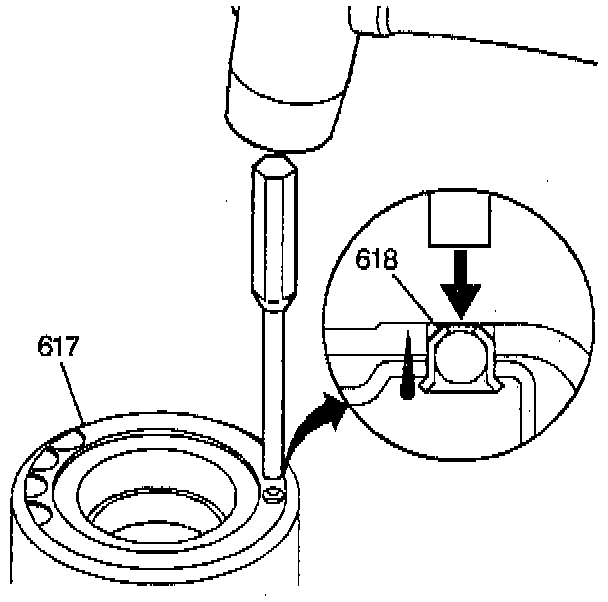

Use a 6.25 mm (1/4 in) drift and a mallet in order to remove the ball check valve assembly (618) from the second clutch housing (617).
