Front Camber Adjustment

^ Tool Required:
- J 39601 Camber Adjustment Tool
- Or Equivalent

1. Loosen both strut to knuckle nuts.

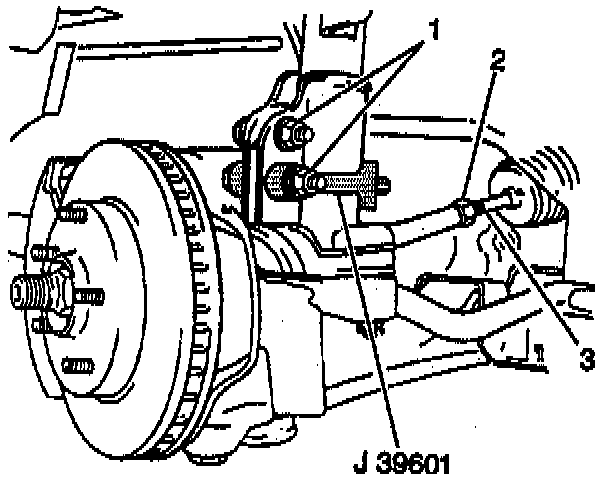

2. Using tool J 39601, set camber. Refer to "SPECIFICATIONS."
^ Tighten strut to knuckle nuts to 185 Nm (136 ft. lbs.).
3. Remove tool J 39601.
^ Available special tool J 39601 may be used for camber adjustment.
