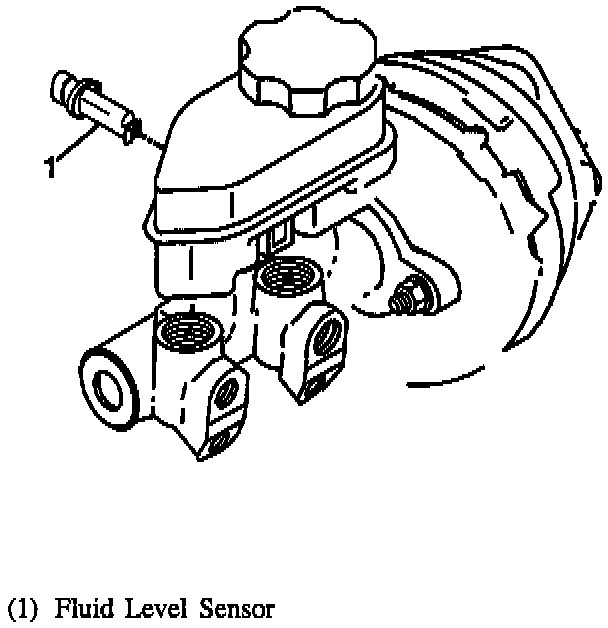

Brake Fluid Level Sensor/Switch: Service and Repair
REMOVE OR DISCONNECT 1.
Electrical connector from fluid level sensor.
2.

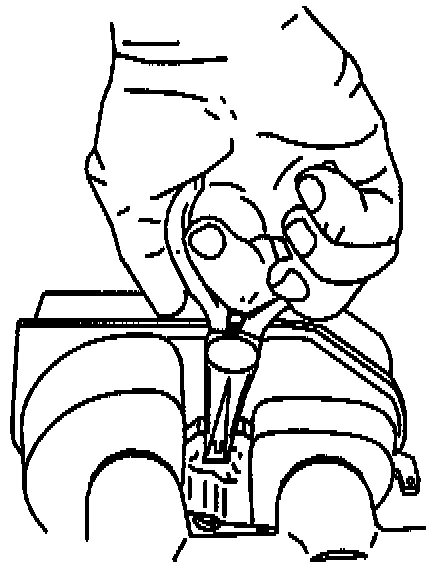

Fluid level sensor using needlenose pliers to compress switch locking tabs at outboard side of master cylinder.
INSTALL OR CONNECT 1.
Fluid level sensor until locking tabs snap into place.
2.
Electrical connector to fluid level sensor.
