Outside Air Temperature Sensor

Outside Air Temperature Sensor:

Remove or Disconnect

1. Battery ground (negative) cable.
2. Raise vehicle and suitably support.

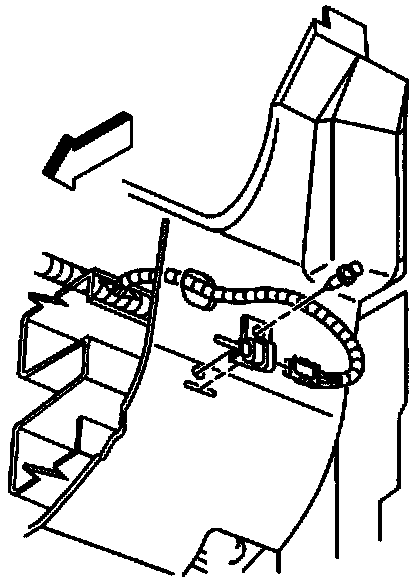

3. Electrical connector at temperature sensor located on the front radiator air baffle.
4. Temperature sensor from radiator air baffle.

Install or Connect

1. Temperature sensor to the radiator air baffle.
2. Electrical connector to sensor.
3. Lower vehicle.
4. Battery ground (negative) cable.
