Map Light: Service and Repair
Description:
Remove or Disconnect 1.

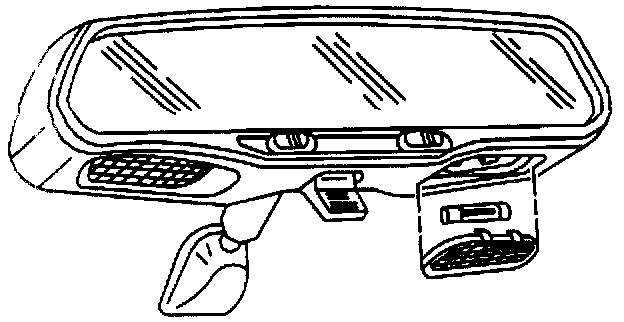

Lens from lighted rearview mirror by using a small flat-bladed tool.
2.
Bulb from lamp by using a small flat-bladed tool.
Install or Connect 1.
Bulb to lamp socket by pressing into connectors.
2.
Lens to lighted rearview mirror by snapping into place.
