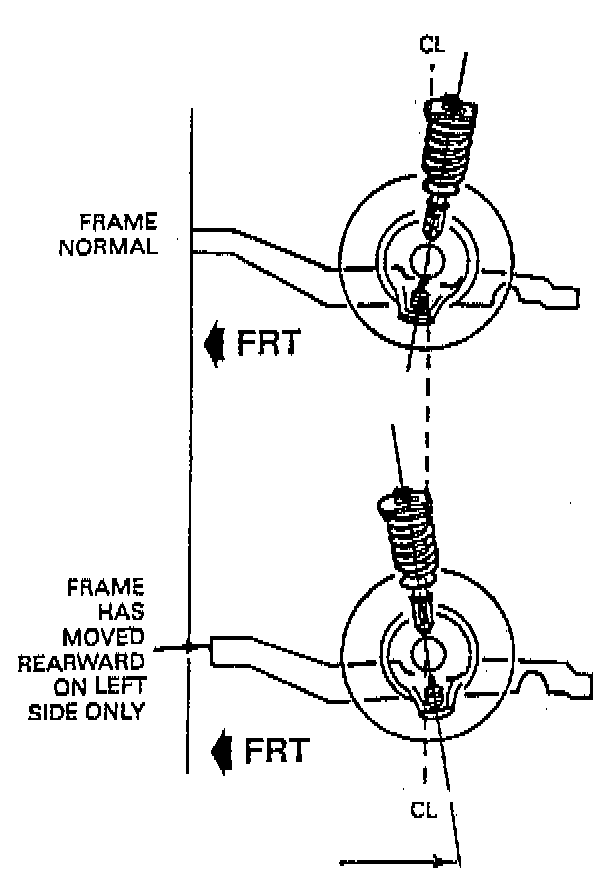

Setback






Setback applies to both front and rear wheels. It is the amount one wheel spindle may be rearward of the other wheel spindle. Setback may be caused by a road hazard or collision. The first clue will be a caster difference from side-to-side of more than one degree.
