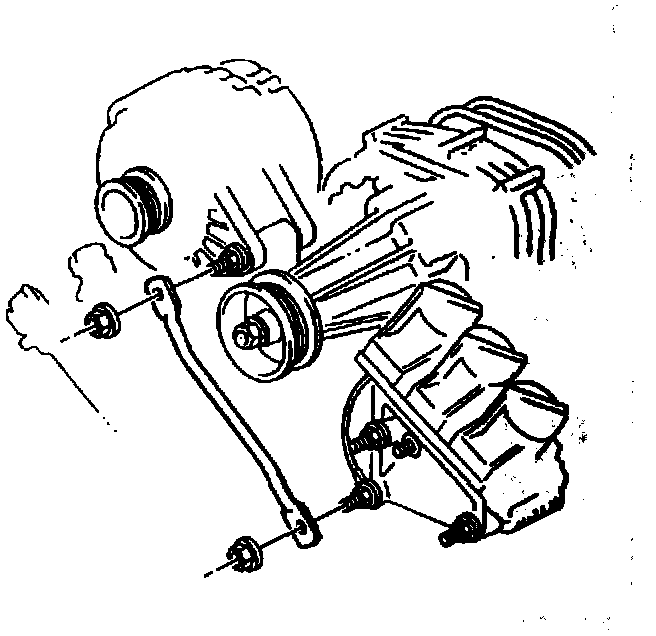

Generator Front Brace
Generator 3800:
Generator Front Brace 3800:
REMOVE OR DISCONNECT 1.
Generator front brace nuts.
2.
Brace.
INSTALL OR CONNECTNOTE: Refer to Service Precautions.
1.
Brace.
2.
Generator front brace nuts.
Tighten ^
Nuts to
30 N.m (22 lb. ft.).
