Inside Handle Bezel

DOOR INSIDE HANDLE BEZEL

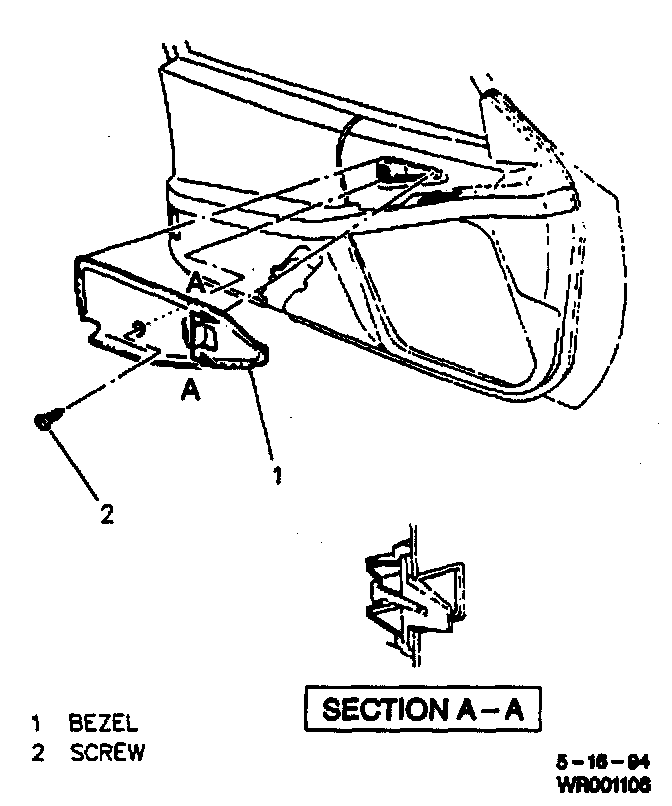

Inside Handle Bezel:

REMOVE OR DISCONNECT

1. Screw.
2. Bezel.

INSTALL OR CONNECT

1. Position bezel to trim panel.
2. Screw.

TIGHTEN
^ Screw to 1.9 Nm (17 lb. in.).
