Home >> Buick >> 1997 >> Regal V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Control Systems

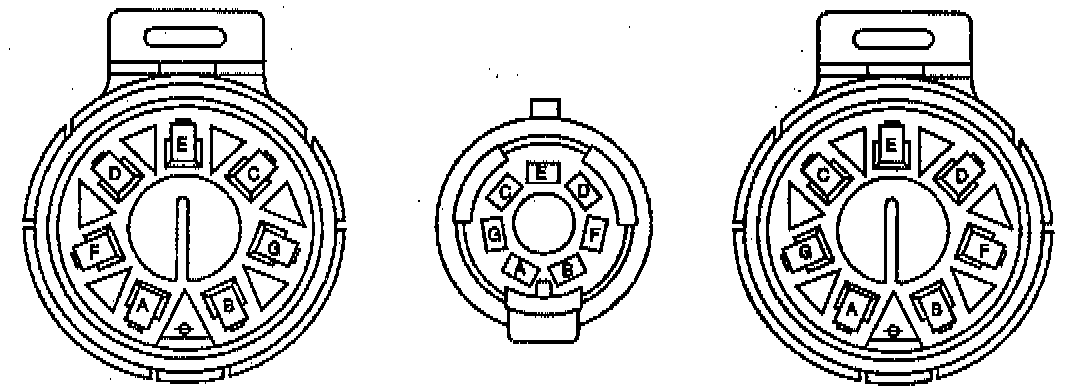

Transmission Control Systems

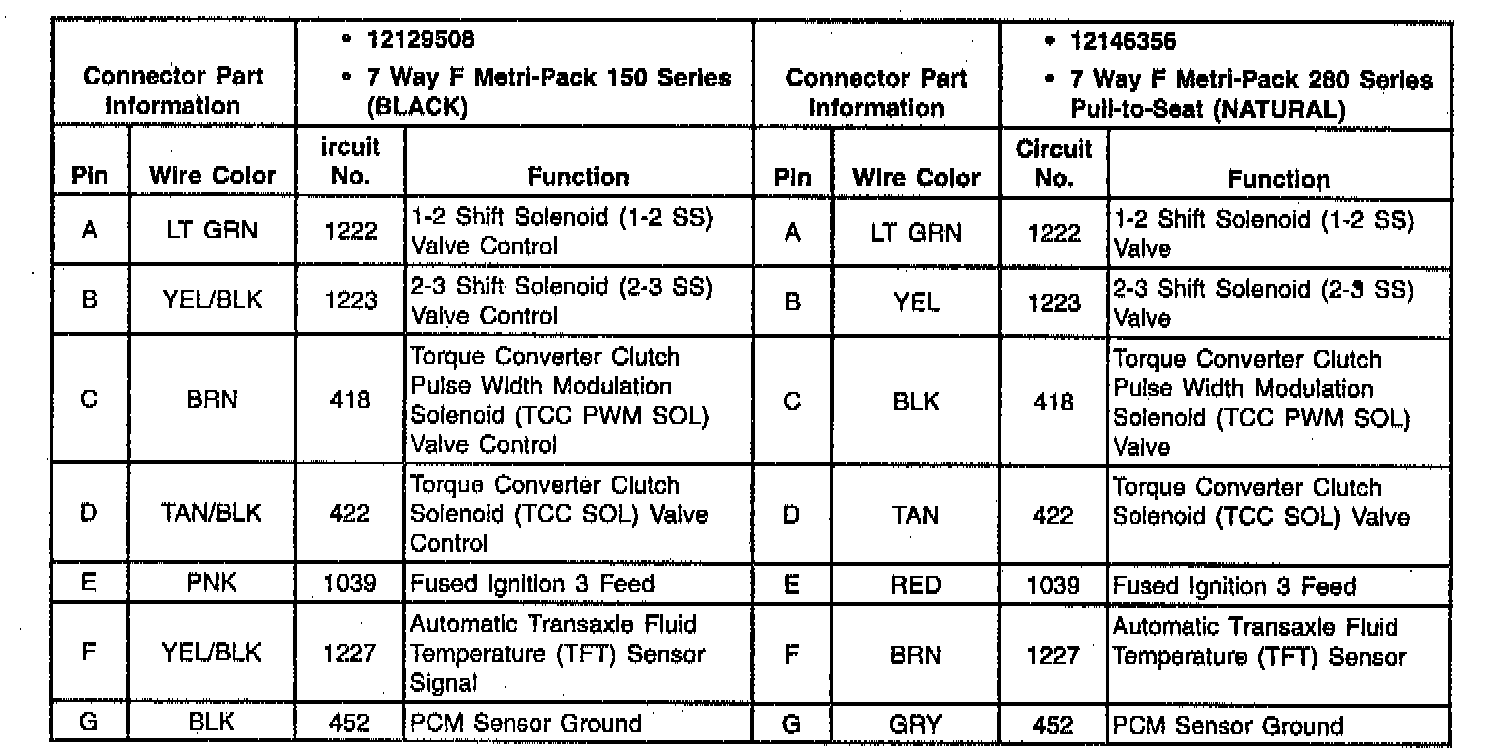

Part 1 Of 2:



Part 2 Of 2:
